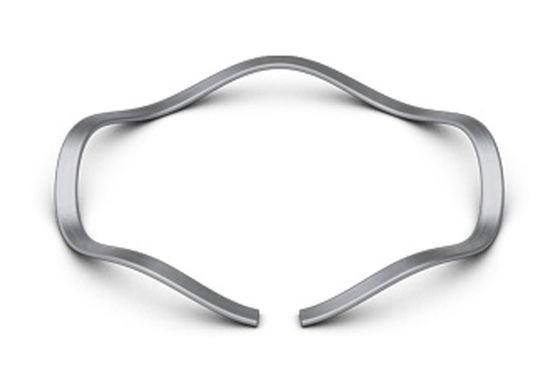

|Name:||Single Turn Wave Spring||Size:||5mm-1000mm|
|Tooling Charge:||Free||Used For:||Bearing|
|Material:||Carbon Steel Or Stainless Steel||Stock:||More Than 2000 Types|
single wave washer,
nested wave spring
Wave Springs are pre-stacked in series, decreasing the spring rate proportionally to the number of turns. Uses are typically applications requiring low-medium spring rates and large deflections with low-medium forces. Among the major advantages, this design eliminates the need to keep the wave crests aligned. The need to use a key locating device, or to insert a shim between individual springs is not necessary. Because the spring is integrally formed, the wave peaks hold their configuration.
Carbon steel(SWC), 65Mn, Cold roller steel, Stainless steel(SUS), Beryllium copper, Phosphor copper, Brass, Music wire, Piano wire(SWP), 60Si2Mn, 55CrSi, Ect.
Wave spring measurements:
