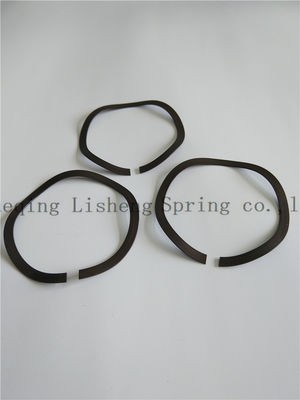

Single Turn Gap Type Wave Springs SSR-N Series

Single Turn Gap Type Wave Springs SSR-N Series
Single Turn Gap Type Wave Springs SSR-N Series Single Turn Gap Type Wave Springs SSR-N Series

Large Image :  Single Turn Gap Type Wave Springs SSR-N Series

Product Details:
Place of Origin: CHINA
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: SSR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Detailed Product Description
Name: Bearing Preload Springs Size: 5mm-1000mm
Tooling Charge: Free Used For: Bearing
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types
High Light:

stainless steel slinky toy

,

colored metal slinky



Description:



narrow section wave springs were originally designed to pre-load packings in telescoping hydraulic cylinders. They have also found other applications where working space is highly limited. This Smalley Wave Spring series is designed to fit into a bore with a light snap to assure perfect concentricity between the wave spring and assembly. When these narrow section wave springs are compressed, radial expansion is taken up by the gap in the spring to eliminate binding.





Processing craft



Material purchased—Material testing—production—heat treatment—surface treatment—final testing—package—shipping





Material option



Stainless steel:

SUS301(1.4310),SUS302(1.4307),SUS304,SUS316,SUS631(17-7ph),X-750
Carbon steel: SWC-72A,SWC-65Mn, 60Si2Mn, 55CrSi(55SiCr),SAE1070,

SWPB(Music wire), EN10270-1 SH, DIN 17223, ASTM-A228 .etc
Copper/Brass: Brass(CuZn36,CuZn40),copper(C1100), phosphor bronze copper(CuSn6), beryllium bronze copper,enamelled wire .etc
Alloy: titanium alloy etc.





Specification:



Part Number Operates in Bore Diameter(inch) Clears Shaft Diameter(inch) Load(lb) Work Height(inch)

Free Height

(inch)

Number of Waves

Thickness

(inch)

Radial Wall(inch)

Spring Rate

(inch/lb)

SSR-0325-N 3.25 2.82 54 0.109 0.2 4 0.03 0.188 593
SSR-0337-N 3.375 2.94 56 0.109 0.22 4 0.03 0.188 505
SSR-0350-N 3.5 3.07 58 0.109 0.26 4 0.03 0.188 384
SSR-0362-N 3.625 3.19 60 0.109 0.27 4 0.03 0.188 373
SSR-0375-N 3.75 3.32 62 0.109 0.28 4 0.03 0.188 363
SSR-0387-N 3.875 3.44 64 0.109 0.31 4 0.03 0.188 318
SSR-0400-N 4 3.57 66 0.109 0.2 5 0.03 0.188 725
SSR-0412-N 4.125 3.69 67 0.109 0.2 5 0.03 0.188 736
SSR-0425-N 4.25 3.82 69 0.109 0.24 5 0.03 0.188 527
SSR-0437-N 4.375 3.94 70 0.109 0.21 5 0.03 0.188 693
SSR-0450-N 4.5 4.07 72 0.109 0.28 5 0.03 0.188 421
SSR-0462-N 4.625 4.19 73 0.125 0.27 5 0.03 0.188 503
SSR-0475-N 4.75 4.32 75 0.125 0.32 5 0.03 0.188 385
SSR-0487-N 4.875 4.44 76 0.125 0.32 5 0.03 0.188 390
SSR-0500-N 5 4.57 78 0.125 0.35 5 0.03 0.188 347
SSR-0512-N 5.125 4.69 80 0.125 0.35 5 0.03 0.188 356
SSR-0525-N 5.25 4.82 82 0.125 0.36 5 0.03 0.188 349
SSR-0537-N 5.375 4.94 84 0.125 0.44 5 0.03 0.188 267
SSR-0550-N 5.5 5.07 86 0.125 0.28 6 0.03 0.188 555
SSR-0562-N 5.625 5.19 88 0.125 0.29 6 0.03 0.188 533
SSR-0575-N 5.75 5.32 90 0.125 0.34 6 0.03 0.188 419
SSR-0587-N 5.875 5.44 92 0.125 0.34 6 0.03 0.188 428
SSR-0600-N 6 5.57 94 0.125 0.34 6 0.03 0.188 437
SSR-0612-N 6.125 5.69 96 0.125 0.28 7 0.03 0.188 619
SSR-0625-N 6.25 5.82 98 0.125 0.28 7 0.03 0.188 632
SSR-0637-N 6.375 5.94 100 0.125 0.3 7 0.03 0.188 571
SSR-0650-N 6.5 6.07 102 0.125 0.3 7 0.03 0.188 583
SSR-0675-N 6.75 6.32 104 0.125 0.3 7 0.03 0.188 594
SSR-0700-N 7 6.48 106 0.156 0.32 7 0.03 0.233 646
SSR-0725-N 7.25 6.73 108 0.156 0.33 7 0.03 0.233 621
SSR-0750-N 7.5 6.98 110 0.156 0.36 7 0.03 0.233 539
SSR-0775-N 7.75 7.23 114 0.156 0.38 7 0.03 0.233 509
