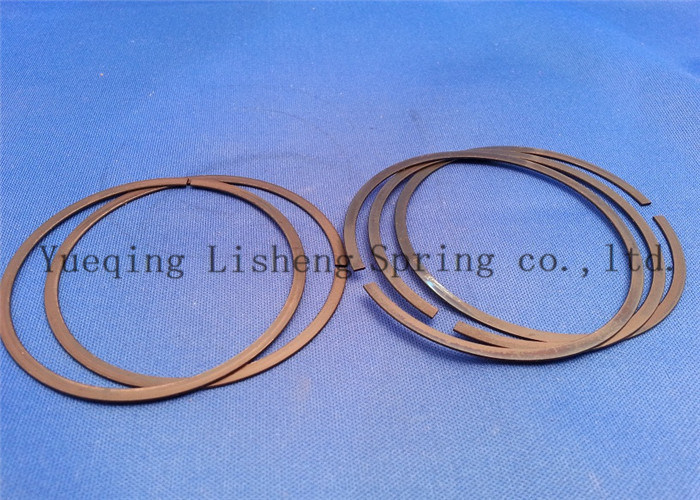

Easy Installation Laminar Sealing Rings Single Wound FK3 ASK Series

China Easy Installation Laminar Sealing Rings Single Wound FK3 ASK Series supplier
Easy Installation Laminar Sealing Rings Single Wound FK3 ASK Series supplier Easy Installation Laminar Sealing Rings Single Wound FK3 ASK Series supplier

Large Image :  Easy Installation Laminar Sealing Rings Single Wound FK3 ASK Series

Product Details:

Place of Origin: China
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: FK3 ASK

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Name: Single Turn Laminar Sealing Rings Combined For Bores Series FK3 ASK Size: 5mm-1000mm
Tooling Charge: Free Used For: Industry
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types

Single Turn Laminar Sealing Rings Combined for Bores Series FK3 ASK



Single wound laminar sealing rings "FK3 ASK" are used as a grease seal for roller and plain bearings and they protect, if greased, against dust entry and ambient moisture. Due to the increased labyrinth effect, the sealing effect is optimized by the additional sealing of the groove base diameter.

The "FK3 AS" or "FK3 ASK" assemblies are normally preferred over the "FK3 IS" or "FK3 ISK" assemblies due to their easier installation into the grooves. Depending on the applications or the technical requirements, the ring carriers can be manufactured from steel, cast iron, light alloy or plastics.



0.625 - 1.249 0.072 0.119 0.055 0.021 0.134 -0.134
1.25 - 1.499 0.072 0.119 0.065 0.021 0.154 -0.154
1.5 - 1.749 0.084 0.139 0.078 0.025 0.18 -0.18
1.75 - 2.249 0.102 0.17 0.095 0.031 0.214 -0.214
2.25 - 2.749 0.102 0.17 0.113 0.031 0.25 -0.25
2.75 - 2.999 0.102 0.17 0.123 0.031 0.27 -0.27
3 - 3.249 0.102 0.17 0.128 0.031 0.28 -0.28
3.25 - 3.499 0.102 0.17 0.138 0.031 0.3 -0.3
3.5 - 3.999 0.102 0.17 0.158 0.031 0.34 -0.34
4 - 4.499 0.102 0.17 0.168 0.031 0.36 -0.36
4.5 - 4.999 0.131 0.215 0.188 0.039 0.408 -0.408
5 - 5.499 0.131 0.215 0.2 0.039 0.432 -0.432
5.5 - 6.249 0.158 0.254 0.225 0.046 0.49 -0.49
6.25 - 7.749 0.187 0.301 0.25 0.055 0.54 -0.54
7.75 - 9.999 0.187 0.301 0.312 0.055 0.702 -0.702
10 - 12.499 0.217 0.346 0.35 0.063 0.778 -0.778
12.5 - 14.999 0.217 0.346 0.375 0.063 0.828 -0.828
15 - 19.999 0.307 0.496 0.437 0.093 0.952 -0.952
20 - 24.999 0.31 0.504 0.5 0.093 1.158 -1.158
25 - 29.999 0.31 0.504 0.567 0.093 1.292 -1.292
30 - 50 0.31 0.504 0.75 0.093 1.658 -1.658
