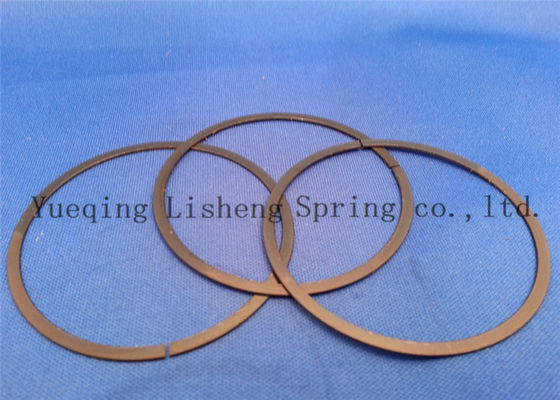

Shafts Series FK3 IS Single Wound Laminar Sealing Rings Various Sizes

Large Image : Shafts Series FK3 IS Single Wound Laminar Sealing Rings Various Sizes

Product Details:

Place of Origin:	China
Brand Name:	lisprings
Certification:	ISO9001 TS16949
Model Number:	FK3 IS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Bulk packaged or Customize
Delivery Time:	7 work days
Supply Ability:	10000000

Contact Now

Detailed Product Description

Name:	Single Turn Laminar Sealing Rings Combined For Bores Series FK3 ASK	Size:	5mm-1000mm
Tooling Charge:	Free	Used For:	Industry
Material:	Carbon Steel Or Stainless Steel	Stock:	More Than 2000 Types
High Light:	metal ring fasteners , flat seal ring

Single Turn Laminar Sealing Rings Combined for shafts Series FK3 IS

for shafts

Application "FK3 IS" Inside clamping single rings (3 rings = 1 set)

Single wound laminar sealing rings "FK3 IS" are used as a grease seal for roller and plain bearings and they protect, if greased, against dust entry and ambient moisture. The combined ring sets "FK3 ISK" (additional sealing of the groove base diameter) optimize the sealing effect due to the increased labyrinth effect.

The "FK3 AS" or "FK3 ASK" assemblies are normally preferred over the "FK3 IS" or "FK3 ISK" assemblies due to their easier installation into the grooves. Depending on the applications or the technical requirements, the ring carriers can be manufactured from steel, cast iron, light alloy or plastics.

0.625	-	1.249	0.072	0.119	0.055	0.021	0.134	-0.134
1.25	-	1.499	0.072	0.119	0.065	0.021	0.154	-0.154
1.5	-	1.749	0.084	0.139	0.078	0.025	0.18	-0.18
1.75	-	2.249	0.102	0.17	0.095	0.031	0.214	-0.214
2.25	-	2.749	0.102	0.17	0.113	0.031	0.25	-0.25
2.75	-	2.999	0.102	0.17	0.123	0.031	0.27	-0.27
3	-	3.249	0.102	0.17	0.128	0.031	0.28	-0.28
3.25	-	3.499	0.102	0.17	0.138	0.031	0.3	-0.3
3.5	-	3.999	0.102	0.17	0.158	0.031	0.34	-0.34
4	-	4.499	0.102	0.17	0.168	0.031	0.36	-0.36
4.5	-	4.999	0.131	0.215	0.188	0.039	0.408	-0.408
5	-	5.499	0.131	0.215	0.2	0.039	0.432	-0.432
5.5	-	6.249	0.158	0.254	0.225	0.046	0.49	-0.49
6.25	-	7.749	0.187	0.301	0.25	0.055	0.54	-0.54
7.75	-	9.999	0.187	0.301	0.312	0.055	0.702	-0.702
10	-	12.499	0.217	0.346	0.35	0.063	0.778	-0.778
12.5	-	14.999	0.217	0.346	0.375	0.063	0.828	-0.828
15	-	19.999	0.307	0.496	0.437	0.093	0.952	-0.952
20	-	24.999	0.31	0.504	0.5	0.093	1.158	-1.158
25	-	29.999	0.31	0.504	0.567	0.093	1.292	-1.292
30	-	50	0.31	0.504	0.75	0.093	1.658	-1.658
