Product Details:
Payment & Shipping Terms:
|

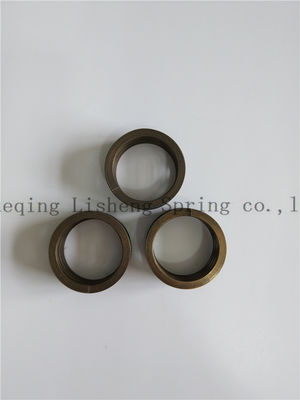

Name: | C Series Multi Turn Wave Springs - Inch | Size: | 5mm-1000mm |
---|---|---|---|
Tooling Charge: | Free | Used For: | Bearing |
Material: | Carbon Steel Or Stainless Steel | Stock: | More Than 2000 Types |
High Light: | wave disc spring washer,wavy washer spring |
Surface treatment
Zinc plating, chrome palting,nickel plating,painting,sand blasting,powder coating, polishing, anodized, baking finish, oxidation, electroplate, passivate
Products application:
automotive, motorbike, bicycle, aviation,automatic equipment, household appliance, medical devices ,toy, telecom ,computer, furniture,instrument and meter,switch,electric motor,elevator, electronic tools,mould(mold) and other industry.
Why Choose Us?
♦Industrial experience
We specialized in the spring field since the year of 1993.
♦Sample availability
We can send samples for your approval within 7 days;Free of charge if we have available tool.
♦Quickly Delivery
As usual within 10 days.
♦Good service and best quality
Our business belief is "best competitive price,good service and best quality"
Part Number | Operates in Bore Diameter(inch) |
Clears Shaft Diameter (inch) |
Load(lb) |
Work Height (inch) |
Free Height (inch) |
Number of Waves | Number of Turns |
Thickness (inch) |
Radial Wall(inch) | Spring Rate(inch/lb) |
C025-L1* | 0.25 | 0.15 | 2 | 0.033 | 0.075 | 2.5 | 3 | 0.006 | 0.024 | 48 |
C025-L2* | 0.25 | 0.15 | 2 | 0.05 | 0.1 | 2.5 | 4 | 0.006 | 0.024 | 40 |
C025-L3* | 0.25 | 0.15 | 2 | 0.06 | 0.125 | 2.5 | 5 | 0.006 | 0.024 | 31 |
C025-L4* | 0.25 | 0.15 | 2 | 0.075 | 0.15 | 2.5 | 6 | 0.006 | 0.024 | 27 |
C025-L5* | 0.25 | 0.15 | 2 | 0.085 | 0.175 | 2.5 | 7 | 0.006 | 0.024 | 22 |
C025-L6* | 0.25 | 0.15 | 2 | 0.095 | 0.2 | 2.5 | 8 | 0.006 | 0.024 | 19 |
C025-L7* | 0.25 | 0.15 | 2 | 0.12 | 0.225 | 2.5 | 9 | 0.006 | 0.024 | 19 |
C025-L8* | 0.25 | 0.15 | 2 | 0.14 | 0.275 | 2.5 | 11 | 0.006 | 0.024 | 15 |
C025-L9* | 0.25 | 0.15 | 2 | 0.17 | 0.325 | 2.5 | 13 | 0.006 | 0.024 | 13 |
C025-M1* | 0.25 | 0.15 | 5 | 0.037 | 0.075 | 2.5 | 3 | 0.008 | 0.024 | 132 |
C025-M2* | 0.25 | 0.15 | 5 | 0.048 | 0.1 | 2.5 | 4 | 0.008 | 0.024 | 96 |
C025-M3* | 0.25 | 0.15 | 5 | 0.065 | 0.125 | 2.5 | 5 | 0.008 | 0.024 | 83 |
C025-M4* | 0.25 | 0.15 | 5 | 0.075 | 0.15 | 2.5 | 6 | 0.008 | 0.024 | 67 |
C025-M5* | 0.25 | 0.15 | 5 | 0.09 | 0.175 | 2.5 | 7 | 0.008 | 0.024 | 59 |
C025-M6* | 0.25 | 0.15 | 5 | 0.1 | 0.2 | 2.5 | 8 | 0.008 | 0.024 | 50 |
C025-M7* | 0.25 | 0.15 | 5 | 0.12 | 0.225 | 2.5 | 9 | 0.008 | 0.024 | 48 |
C025-M8* | 0.25 | 0.15 | 5 | 0.148 | 0.275 | 2.5 | 11 | 0.008 | 0.024 | 39 |
C025-M9* | 0.25 | 0.15 | 5 | 0.175 | 0.325 | 2.5 | 13 | 0.008 | 0.024 | 33 |
C031-L1 | 0.312 | 0.2 | 3 | 0.07 | 0.114 | 2.5 | 3 | 0.008 | 0.032 | 68 |
C031-L2 | 0.312 | 0.2 | 3 | 0.096 | 0.152 | 2.5 | 4 | 0.008 | 0.032 | 54 |
C031-L3 | 0.312 | 0.2 | 3 | 0.118 | 0.19 | 2.5 | 5 | 0.008 | 0.032 | 42 |
C031-L4 | 0.312 | 0.2 | 3 | 0.145 | 0.228 | 2.5 | 6 | 0.008 | 0.032 | 36 |
C031-L5 | 0.312 | 0.2 | 3 | 0.165 | 0.266 | 2.5 | 7 | 0.008 | 0.032 | 30 |
C031-L6 | 0.312 | 0.2 | 3 | 0.195 | 0.304 | 2.5 | 8 | 0.008 | 0.032 | 28 |
C031-L7 | 0.312 | 0.2 | 3 | 0.215 | 0.342 | 2.5 | 9 | 0.008 | 0.032 | 24 |
C031-L8 | 0.312 | 0.2 | 3 | 0.262 | 0.418 | 2.5 | 11 | 0.008 | 0.032 | 19 |
C031-L9 | 0.312 | 0.2 | 3 | 0.309 | 0.494 | 2.5 | 13 | 0.008 | 0.032 | 16 |
C031-M1 | 0.312 | 0.2 | 6 | 0.072 | 0.114 | 2.5 | 3 | 0.01 | 0.032 | 143 |
C031-M2 | 0.312 | 0.2 | 6 | 0.096 | 0.152 | 2.5 | 4 | 0.01 | 0.032 | 107 |
C031-M3 | 0.312 | 0.2 | 6 | 0.123 | 0.19 | 2.5 | 5 | 0.01 | 0.032 | 90 |
C031-M4 | 0.312 | 0.2 | 6 | 0.144 | 0.228 | 2.5 | 6 | 0.01 | 0.032 | 71 |
C031-M5 | 0.312 | 0.2 | 6 | 0.176 | 0.266 | 2.5 | 7 | 0.01 | 0.032 | 67 |
C031-M6 | 0.312 | 0.2 | 6 | 0.197 | 0.304 | 2.5 | 8 | 0.01 | 0.032 | 56 |
C031-M7 | 0.312 | 0.2 | 6 | 0.227 | 0.342 | 2.5 | 9 | 0.01 | 0.032 | 52 |
C031-M8 | 0.312 | 0.2 | 6 | 0.278 | 0.418 | 2.5 | 11 | 0.01 | 0.032 | 43 |
C031-M9 | 0.312 | 0.2 | 6 | 0.336 | 0.494 | 2.5 | 13 | 0.01 | 0.032 | 38 |
C037-L1 | 0.375 | 0.25 | 4 | 0.062 | 0.15 | 2.5 | 3 | 0.008 | 0.032 | 45 |
C037-L2 | 0.375 | 0.25 | 4 | 0.098 | 0.2 | 2.5 | 4 | 0.008 | 0.032 | 39 |
C037-L3 | 0.375 | 0.25 | 4 | 0.108 | 0.25 | 2.5 | 5 | 0.008 | 0.032 | 28 |
C037-L4 | 0.375 | 0.25 | 4 | 0.135 | 0.3 | 2.5 | 6 | 0.008 | 0.032 | 24 |
C037-L5 | 0.375 | 0.25 | 4 | 0.15 | 0.35 | 2.5 | 7 | 0.008 | 0.032 | 20 |
C037-L6 | 0.375 | 0.25 | 4 | 0.184 | 0.4 | 2.5 | 8 | 0.008 | 0.032 | 19 |
C037-L7 | 0.375 | 0.25 | 4 | 0.195 | 0.45 | 2.5 | 9 | 0.008 | 0.032 | 16 |
C037-L8 | 0.375 | 0.25 | 4 | 0.228 | 0.5 | 2.5 | 10 | 0.008 | 0.032 | 15 |
C037-L9 | 0.375 | 0.25 | 4 | 0.24 | 0.55 | 2.5 | 11 | 0.008 | 0.032 | 13 |
C037-M1 | 0.375 | 0.25 | 7 | 0.081 | 0.15 | 2.5 | 3 | 0.011 | 0.032 | 101 |
C037-M2 | 0.375 | 0.25 | 7 | 0.119 | 0.2 | 2.5 | 4 | 0.011 | 0.032 | 86 |
C037-M3 | 0.375 | 0.25 | 7 | 0.145 | 0.25 | 2.5 | 5 | 0.011 | 0.032 | 67 |
C037-M4 | 0.375 | 0.25 | 7 | 0.18 | 0.3 | 2.5 | 6 | 0.011 | 0.032 | 58 |
C037-M5 | 0.375 | 0.25 | 7 | 0.202 | 0.35 | 2.5 | 7 | 0.011 | 0.032 | 47 |
C037-M6 | 0.375 | 0.25 | 7 | 0.24 | 0.4 | 2.5 | 8 | 0.011 | 0.032 | 44 |
C037-M7 | 0.375 | 0.25 | 7 | 0.262 | 0.45 | 2.5 | 9 | 0.011 | 0.032 | 37 |
C037-M8 | 0.375 | 0.25 | 7 | 0.298 | 0.5 | 2.5 | 10 | 0.011 | 0.032 | 35 |
C037-M9 | 0.375 | 0.25 | 7 | 0.327 | 0.55 | 2.5 | 11 | 0.011 | 0.032 | 31 |
C043-L1 | 0.437 | 0.281 | 4 | 0.063 | 0.165 | 2.5 | 3 | 0.008 | 0.04 | 39 |
C043-L2 | 0.437 | 0.281 | 4 | 0.093 | 0.22 | 2.5 | 4 | 0.008 | 0.04 | 31 |
C043-L3 | 0.437 | 0.281 | 4 | 0.109 | 0.275 | 2.5 | 5 | 0.008 | 0.04 | 24 |
C043-L4 | 0.437 | 0.281 | 4 | 0.143 | 0.33 | 2.5 | 6 | 0.008 | 0.04 | 21 |
C043-L5 | 0.437 | 0.281 | 4 | 0.16 | 0.385 | 2.5 | 7 | 0.008 | 0.04 | 18 |
C043-L6 | 0.437 | 0.281 | 4 | 0.195 | 0.44 | 2.5 | 8 | 0.008 | 0.04 | 16 |
C043-L7 | 0.437 | 0.281 | 4 | 0.21 | 0.495 | 2.5 | 9 | 0.008 | 0.04 | 14 |
C043-L8 | 0.437 | 0.281 | 4 | 0.24 | 0.55 | 2.5 | 10 | 0.008 | 0.04 | 13 |
C043-L9 | 0.437 | 0.281 | 4 | 0.26 | 0.605 | 2.5 | 11 | 0.008 | 0.04 | 12 |
C043-M1 | 0.437 | 0.281 | 8 | 0.082 | 0.165 | 2.5 | 3 | 0.011 | 0.046 | 96 |
C043-M2 | 0.437 | 0.281 | 8 | 0.115 | 0.22 | 2.5 | 4 | 0.011 | 0.046 | 76 |
C043-M3 | 0.437 | 0.281 | 8 | 0.142 | 0.275 | 2.5 | 5 | 0.011 | 0.046 | 60 |
C043-M4 | 0.437 | 0.281 | 8 | 0.179 | 0.33 | 2.5 | 6 | 0.011 | 0.046 | 53 |
C043-M5 | 0.437 | 0.281 | 8 | 0.198 | 0.385 | 2.5 | 7 | 0.011 | 0.046 | 43 |
C043-M6 | 0.437 | 0.281 | 8 | 0.231 | 0.44 | 2.5 | 8 | 0.011 | 0.046 | 38 |
C043-M7 | 0.437 | 0.281 | 8 | 0.255 | 0.495 | 2.5 | 9 | 0.011 | 0.046 | 33 |
C043-M8 | 0.437 | 0.281 | 8 | 0.29 | 0.55 | 2.5 | 10 | 0.011 | 0.046 | 31 |
C043-M9 | 0.437 | 0.281 | 8 | 0.319 | 0.605 | 2.5 | 11 | 0.011 | 0.046 | 28 |
C050-L1 | 0.5 | 0.312 | 5 | 0.062 | 0.18 | 2.5 | 3 | 0.008 | 0.056 | 42 |
C050-L2 | 0.5 | 0.312 | 5 | 0.09 | 0.24 | 2.5 | 4 | 0.008 | 0.056 | 33 |
C050-L3 | 0.5 | 0.312 | 5 | 0.107 | 0.3 | 2.5 | 5 | 0.008 | 0.056 | 26 |
C050-L4 | 0.5 | 0.312 | 5 | 0.136 | 0.36 | 2.5 | 6 | 0.008 | 0.056 | 22 |
C050-L5 | 0.5 | 0.312 | 5 | 0.15 | 0.42 | 2.5 | 7 | 0.008 | 0.056 | 19 |
C050-L6 | 0.5 | 0.312 | 5 | 0.18 | 0.48 | 2.5 | 8 | 0.008 | 0.056 | 17 |
C050-L7 | 0.5 | 0.312 | 5 | 0.195 | 0.54 | 2.5 | 9 | 0.008 | 0.056 | 14 |
C050-L8 | 0.5 | 0.312 | 5 | 0.22 | 0.6 | 2.5 | 10 | 0.008 | 0.056 | 13 |
C050-L9 | 0.5 | 0.312 | 5 | 0.24 | 0.66 | 2.5 | 11 | 0.008 | 0.056 | 12 |
C050-M1 | 0.5 | 0.312 | 10 | 0.065 | 0.18 | 2.5 | 3 | 0.01 | 0.058 | 87 |
C050-M2 | 0.5 | 0.312 | 10 | 0.092 | 0.24 | 2.5 | 4 | 0.01 | 0.058 | 68 |
C050-M3 | 0.5 | 0.312 | 10 | 0.114 | 0.3 | 2.5 | 5 | 0.01 | 0.058 | 54 |
C050-M4 | 0.5 | 0.312 | 10 | 0.147 | 0.36 | 2.5 | 6 | 0.01 | 0.058 | 47 |
C050-M5 | 0.5 | 0.312 | 10 | 0.162 | 0.42 | 2.5 | 7 | 0.01 | 0.058 | 39 |
C050-M6 | 0.5 | 0.312 | 10 | 0.196 | 0.48 | 2.5 | 8 | 0.01 | 0.058 | 35 |
C050-M7 | 0.5 | 0.312 | 10 | 0.207 | 0.54 | 2.5 | 9 | 0.01 | 0.058 | 30 |
C050-M8 | 0.5 | 0.312 | 10 | 0.246 | 0.6 | 2.5 | 10 | 0.01 | 0.058 | 28 |
C050-M9 | 0.5 | 0.312 | 10 | 0.264 | 0.66 | 2.5 | 11 | 0.01 | 0.058 | 25 |
C050-H1 | 0.5 | 0.312 | 15 | 0.075 | 0.18 | 2.5 | 3 | 0.012 | 0.06 | 143 |
C050-H2 | 0.5 | 0.312 | 15 | 0.11 | 0.24 | 2.5 | 4 | 0.012 | 0.06 | 115 |
C050-H3 | 0.5 | 0.312 | 15 | 0.136 | 0.3 | 2.5 | 5 | 0.012 | 0.06 | 91 |
C050-H4 | 0.5 | 0.312 | 15 | 0.167 | 0.36 | 2.5 | 6 | 0.012 | 0.06 | 78 |
C050-H5 | 0.5 | 0.312 | 15 | 0.182 | 0.42 | 2.5 | 7 | 0.012 | 0.06 | 63 |
C050-H6 | 0.5 | 0.312 | 15 | 0.216 | 0.48 | 2.5 | 8 | 0.012 | 0.06 | 57 |
C050-H7 | 0.5 | 0.312 | 15 | 0.24 | 0.54 | 2.5 | 9 | 0.012 | 0.06 | 50 |
C050-H8 | 0.5 | 0.312 | 15 | 0.28 | 0.6 | 2.5 | 10 | 0.012 | 0.06 | 47 |
C050-H9 | 0.5 | 0.312 | 15 | 0.312 | 0.66 | 2.5 | 11 | 0.012 | 0.06 | 43 |
C056-L1 | 0.562 | 0.375 | 5 | 0.08 | 0.195 | 2.5 | 3 | 0.009 | 0.058 | 43 |
C056-L2 | 0.562 | 0.375 | 5 | 0.125 | 0.26 | 2.5 | 4 | 0.009 | 0.058 | 37 |
C056-L3 | 0.562 | 0.375 | 5 | 0.135 | 0.325 | 2.5 | 5 | 0.009 | 0.058 | 26 |
C056-L4 | 0.562 | 0.375 | 5 | 0.18 | 0.39 | 2.5 | 6 | 0.009 | 0.058 | 24 |
C056-L5 | 0.562 | 0.375 | 5 | 0.19 | 0.455 | 2.5 | 7 | 0.009 | 0.058 | 19 |
C056-L6 | 0.562 | 0.375 | 5 | 0.23 | 0.52 | 2.5 | 8 | 0.009 | 0.058 | 17 |
C056-L7 | 0.562 | 0.375 | 5 | 0.26 | 0.585 | 2.5 | 9 | 0.009 | 0.058 | 15 |
C056-L8 | 0.562 | 0.375 | 5 | 0.285 | 0.65 | 2.5 | 10 | 0.009 | 0.058 | 14 |
C056-L9 | 0.562 | 0.375 | 5 | 0.315 | 0.715 | 2.5 | 11 | 0.009 | 0.058 | 13 |
C056-M1 | 0.562 | 0.375 | 11 | 0.086 | 0.195 | 2.5 | 3 | 0.012 | 0.06 | 101 |
C056-M2 | 0.562 | 0.375 | 11 | 0.123 | 0.26 | 2.5 | 4 | 0.012 | 0.06 | 80 |
C056-M3 | 0.562 | 0.375 | 11 | 0.145 | 0.325 | 2.5 | 5 | 0.012 | 0.06 | 61 |
C056-M4 | 0.562 | 0.375 | 11 | 0.187 | 0.39 | 2.5 | 6 | 0.012 | 0.06 | 54 |
C056-M5 | 0.562 | 0.375 | 11 | 0.209 | 0.455 | 2.5 | 7 | 0.012 | 0.06 | 45 |
C056-M6 | 0.562 | 0.375 | 11 | 0.253 | 0.52 | 2.5 | 8 | 0.012 | 0.06 | 41 |
C056-M7 | 0.562 | 0.375 | 11 | 0.273 | 0.585 | 2.5 | 9 | 0.012 | 0.06 | 35 |
C056-M8 | 0.562 | 0.375 | 11 | 0.318 | 0.65 | 2.5 | 10 | 0.012 | 0.06 | 33 |
C056-M9 | 0.562 | 0.375 | 11 | 0.343 | 0.715 | 2.5 | 11 | 0.012 | 0.06 | 30 |
C056-H1 | 0.562 | 0.375 | 18 | 0.093 | 0.195 | 2.5 | 3 | 0.015 | 0.06 | 176 |
C056-H2 | 0.562 | 0.375 | 18 | 0.136 | 0.26 | 2.5 | 4 | 0.015 | 0.06 | 145 |
C056-H3 | 0.562 | 0.375 | 18 | 0.165 | 0.325 | 2.5 | 5 | 0.015 | 0.06 | 113 |
C056-H4 | 0.562 | 0.375 | 18 | 0.212 | 0.39 | 2.5 | 6 | 0.015 | 0.06 | 101 |
C056-H5 | 0.562 | 0.375 | 18 | 0.245 | 0.455 | 2.5 | 7 | 0.015 | 0.06 | 86 |
C056-H6 | 0.562 | 0.375 | 18 | 0.282 | 0.52 | 2.5 | 8 | 0.015 | 0.06 | 76 |
C056-H7 | 0.562 | 0.375 | 18 | 0.323 | 0.585 | 2.5 | 9 | 0.015 | 0.06 | 69 |
C056-H8 | 0.562 | 0.375 | 18 | 0.36 | 0.65 | 2.5 | 10 | 0.015 | 0.06 | 62 |
C056-H9 | 0.562 | 0.375 | 18 | 0.408 | 0.715 | 2.5 | 11 | 0.015 | 0.06 | 59 |
C062-L1 | 0.625 | 0.45 | 6 | 0.055 | 0.18 | 2.5 | 3 | 0.01 | 0.058 | 48 |
C062-L2 | 0.625 | 0.45 | 6 | 0.068 | 0.24 | 2.5 | 4 | 0.01 | 0.058 | 35 |
C062-L3 | 0.625 | 0.45 | 6 | 0.085 | 0.3 | 2.5 | 5 | 0.01 | 0.058 | 28 |
C062-L4 | 0.625 | 0.45 | 6 | 0.106 | 0.36 | 2.5 | 6 | 0.01 | 0.058 | 24 |
C062-L5 | 0.625 | 0.45 | 6 | 0.128 | 0.42 | 2.5 | 7 | 0.01 | 0.058 | 21 |
C062-L6 | 0.625 | 0.45 | 6 | 0.165 | 0.54 | 2.5 | 9 | 0.01 | 0.058 | 16 |
C062-L7 | 0.625 | 0.45 | 6 | 0.202 | 0.66 | 2.5 | 11 | 0.01 | 0.058 | 13 |
C062-L8 | 0.625 | 0.45 | 6 | 0.238 | 0.78 | 2.5 | 13 | 0.01 | 0.058 | 11 |
C062-M1 | 0.625 | 0.45 | 12 | 0.104 | 0.18 | 3.5 | 3 | 0.01 | 0.058 | 158 |
C062-M2 | 0.625 | 0.45 | 12 | 0.13 | 0.24 | 3.5 | 4 | 0.01 | 0.058 | 109 |
C062-M3 | 0.625 | 0.45 | 12 | 0.175 | 0.3 | 3.5 | 5 | 0.01 | 0.058 | 96 |
C062-M4 | 0.625 | 0.45 | 12 | 0.206 | 0.36 | 3.5 | 6 | 0.01 | 0.058 | 78 |
C062-M5 | 0.625 | 0.45 | 12 | 0.246 | 0.42 | 3.5 | 7 | 0.01 | 0.058 | 69 |
C062-M6 | 0.625 | 0.45 | 12 | 0.317 | 0.54 | 3.5 | 9 | 0.01 | 0.058 | 54 |
C062-M7 | 0.625 | 0.45 | 12 | 0.386 | 0.66 | 3.5 | 11 | 0.01 | 0.058 | 44 |
C062-M8 | 0.625 | 0.45 | 12 | 0.454 | 0.78 | 3.5 | 13 | 0.01 | 0.058 | 37 |
C062-H1 | 0.625 | 0.45 | 20 | 0.102 | 0.18 | 3.5 | 3 | 0.012 | 0.06 | 256 |
C062-H2 | 0.625 | 0.45 | 20 | 0.135 | 0.24 | 3.5 | 4 | 0.012 | 0.06 | 190 |
C062-H3 | 0.625 | 0.45 | 20 | 0.175 | 0.3 | 3.5 | 5 | 0.012 | 0.06 | 160 |
C062-H4 | 0.625 | 0.45 | 20 | 0.205 | 0.36 | 3.5 | 6 | 0.012 | 0.06 | 129 |
C062-H5 | 0.625 | 0.45 | 20 | 0.245 | 0.42 | 3.5 | 7 | 0.012 | 0.06 | 114 |
C062-H6 | 0.625 | 0.45 | 20 | 0.315 | 0.54 | 3.5 | 9 | 0.012 | 0.06 | 89 |
C062-H7 | 0.625 | 0.45 | 20 | 0.39 | 0.66 | 3.5 | 11 | 0.012 | 0.06 | 74 |
C062-H8 | 0.625 | 0.45 | 20 | 0.465 | 0.78 | 3.5 | 13 | 0.012 | 0.06 | 63 |
C075-L1 | 0.75 | 0.55 | 7 | 0.142 | 0.25 | 3.5 | 3 | 0.008 | 0.071 | 65 |
C075-L2 | 0.75 | 0.55 | 7 | 0.187 | 0.333 | 3.5 | 4 | 0.008 | 0.071 | 48 |
C075-L3 | 0.75 | 0.55 | 7 | 0.246 | 0.417 | 3.5 | 5 | 0.008 | 0.071 | 41 |
C075-L4 | 0.75 | 0.55 | 7 | 0.285 | 0.5 | 3.5 | 6 | 0.008 | 0.071 | 33 |
C075-L5 | 0.75 | 0.55 | 7 | 0.348 | 0.583 | 3.5 | 7 | 0.008 | 0.071 | 30 |
C075-L6 | 0.75 | 0.55 | 7 | 0.446 | 0.75 | 3.5 | 9 | 0.008 | 0.071 | 23 |
C075-L7 | 0.75 | 0.55 | 7 | 0.58 | 1 | 3.5 | 12 | 0.008 | 0.071 | 17 |
C075-M1 | 0.75 | 0.55 | 13 | 0.159 | 0.25 | 3.5 | 3 | 0.01 | 0.078 | 143 |
C075-M2 | 0.75 | 0.55 | 13 | 0.203 | 0.333 | 3.5 | 4 | 0.01 | 0.078 | 100 |
C075-M3 | 0.75 | 0.55 | 13 | 0.27 | 0.417 | 3.5 | 5 | 0.01 | 0.078 | 88 |
C075-M4 | 0.75 | 0.55 | 13 | 0.314 | 0.5 | 3.5 | 6 | 0.01 | 0.078 | 70 |
C075-M5 | 0.75 | 0.55 | 13 | 0.381 | 0.583 | 3.5 | 7 | 0.01 | 0.078 | 64 |
C075-M6 | 0.75 | 0.55 | 13 | 0.489 | 0.75 | 3.5 | 9 | 0.01 | 0.078 | 50 |
C075-M7 | 0.75 | 0.55 | 13 | 0.649 | 1 | 3.5 | 12 | 0.01 | 0.078 | 37 |
C075-H1 | 0.75 | 0.55 | 22 | 0.169 | 0.25 | 3.5 | 3 | 0.013 | 0.079 | 272 |
C075-H2 | 0.75 | 0.55 | 22 | 0.215 | 0.333 | 3.5 | 4 | 0.013 | 0.079 | 186 |
C075-H3 | 0.75 | 0.55 | 22 | 0.291 | 0.417 | 3.5 | 5 | 0.013 | 0.079 | 175 |
C075-H4 | 0.75 | 0.55 | 22 | 0.335 | 0.5 | 3.5 | 6 | 0.013 | 0.079 | 133 |
C075-H5 | 0.75 | 0.55 | 22 | 0.405 | 0.583 | 3.5 | 7 | 0.013 | 0.079 | 124 |
C075-H6 | 0.75 | 0.55 | 22 | 0.526 | 0.75 | 3.5 | 9 | 0.013 | 0.079 | 98 |
C075-H7 | 0.75 | 0.55 | 22 | 0.699 | 1 | 3.5 | 12 | 0.013 | 0.079 | 73 |
C087-L1 | 0.875 | 0.6 | 12 | 0.117 | 0.25 | 3.5 | 3 | 0.01 | 0.086 | 90 |
C087-L2 | 0.875 | 0.6 | 12 | 0.158 | 0.333 | 3.5 | 4 | 0.01 | 0.086 | 69 |
C087-L3 | 0.875 | 0.6 | 12 | 0.207 | 0.417 | 3.5 | 5 | 0.01 | 0.086 | 57 |
C087-L4 | 0.875 | 0.6 | 12 | 0.242 | 0.5 | 3.5 | 6 | 0.01 | 0.086 | 47 |
C087-L5 | 0.875 | 0.6 | 12 | 0.287 | 0.583 | 3.5 | 7 | 0.01 | 0.086 | 41 |
C087-L6 | 0.875 | 0.6 | 12 | 0.378 | 0.75 | 3.5 | 9 | 0.01 | 0.086 | 32 |
C087-L7 | 0.875 | 0.6 | 12 | 0.498 | 1 | 3.5 | 12 | 0.01 | 0.086 | 24 |
C087-M1 | 0.875 | 0.6 | 18 | 0.124 | 0.25 | 3.5 | 3 | 0.012 | 0.094 | 148 |
C087-M2 | 0.875 | 0.6 | 18 | 0.164 | 0.333 | 3.5 | 4 | 0.012 | 0.094 | 108 |
C087-M3 | 0.875 | 0.6 | 18 | 0.214 | 0.417 | 3.5 | 5 | 0.012 | 0.094 | 89 |
C087-M4 | 0.875 | 0.6 | 18 | 0.252 | 0.5 | 3.5 | 6 | 0.012 | 0.094 | 76 |
C087-M5 | 0.875 | 0.6 | 18 | 0.296 | 0.583 | 3.5 | 7 | 0.012 | 0.094 | 66 |
C087-M6 | 0.875 | 0.6 | 18 | 0.385 | 0.75 | 3.5 | 9 | 0.012 | 0.094 | 50 |
C087-M7 | 0.875 | 0.6 | 18 | 0.509 | 1 | 3.5 | 12 | 0.012 | 0.094 | 38 |
C087-H1 | 0.875 | 0.6 | 25 | 0.166 | 0.25 | 3.5 | 3 | 0.015 | 0.094 | 298 |
C087-H2 | 0.875 | 0.6 | 25 | 0.214 | 0.333 | 3.5 | 4 | 0.015 | 0.094 | 210 |
C087-H3 | 0.875 | 0.6 | 25 | 0.278 | 0.417 | 3.5 | 5 | 0.015 | 0.094 | 180 |
C087-H4 | 0.875 | 0.6 | 25 | 0.327 | 0.5 | 3.5 | 6 | 0.015 | 0.094 | 145 |
C087-H5 | 0.875 | 0.6 | 25 | 0.395 | 0.583 | 3.5 | 7 | 0.015 | 0.094 | 133 |
C087-H6 | 0.875 | 0.6 | 25 | 0.51 | 0.75 | 3.5 | 9 | 0.015 | 0.094 | 104 |
C087-H7 | 0.875 | 0.6 | 25 | 0.67 | 1 | 3.5 | 12 | 0.015 | 0.094 | 78 |
C100-L1 | 1 | 0.73 | 12 | 0.084 | 0.25 | 3.5 | 3 | 0.01 | 0.086 | 72 |
C100-L2 | 1 | 0.73 | 12 | 0.108 | 0.333 | 3.5 | 4 | 0.01 | 0.086 | 53 |
C100-L3 | 1 | 0.73 | 12 | 0.145 | 0.417 | 3.5 | 5 | 0.01 | 0.086 | 44 |
C100-L4 | 1 | 0.73 | 12 | 0.165 | 0.5 | 3.5 | 6 | 0.01 | 0.086 | 36 |
C100-L5 | 1 | 0.73 | 12 | 0.201 | 0.583 | 3.5 | 7 | 0.01 | 0.086 | 31 |
C100-L6 | 1 | 0.73 | 12 | 0.258 | 0.75 | 3.5 | 9 | 0.01 | 0.086 | 24 |
C100-L7 | 1 | 0.73 | 12 | 0.342 | 1 | 3.5 | 12 | 0.01 | 0.086 | 18 |
C100-L8 | 1 | 0.73 | 12 | 0.445 | 1.25 | 3.5 | 15 | 0.01 | 0.086 | 15 |
C100-L9 | 1 | 0.73 | 12 | 0.519 | 1.5 | 3.5 | 18 | 0.01 | 0.086 | 12 |
C100-L10 | 1 | 0.73 | 12 | 0.633 | 1.75 | 3.5 | 21 | 0.01 | 0.086 | 11 |
C100-L11 | 1 | 0.73 | 12 | 0.71 | 2 | 3.5 | 24 | 0.01 | 0.086 | 9 |
C100-M1 | 1 | 0.73 | 18 | 0.087 | 0.25 | 3.5 | 3 | 0.012 | 0.094 | 110 |
C100-M2 | 1 | 0.73 | 18 | 0.113 | 0.333 | 3.5 | 4 | 0.012 | 0.094 | 82 |
C100-M3 | 1 | 0.73 | 18 | 0.148 | 0.417 | 3.5 | 5 | 0.012 | 0.094 | 67 |
C100-M4 | 1 | 0.73 | 18 | 0.175 | 0.5 | 3.5 | 6 | 0.012 | 0.094 | 55 |
C100-M5 | 1 | 0.73 | 18 | 0.212 | 0.583 | 3.5 | 7 | 0.012 | 0.094 | 49 |
C100-M6 | 1 | 0.73 | 18 | 0.276 | 0.75 | 3.5 | 9 | 0.012 | 0.094 | 38 |
C100-M7 | 1 | 0.73 | 18 | 0.36 | 1 | 3.5 | 12 | 0.012 | 0.094 | 28 |
C100-M8 | 1 | 0.73 | 18 | 0.452 | 1.25 | 3.5 | 15 | 0.012 | 0.094 | 23 |
C100-M9 | 1 | 0.73 | 18 | 0.549 | 1.5 | 3.5 | 18 | 0.012 | 0.094 | 19 |
C100-M10 | 1 | 0.73 | 18 | 0.65 | 1.75 | 3.5 | 21 | 0.012 | 0.094 | 16 |
C100-M11 | 1 | 0.73 | 18 | 0.72 | 2 | 3.5 | 24 | 0.012 | 0.094 | 14 |
C100-H1 | 1 | 0.73 | 25 | 0.131 | 0.25 | 3.5 | 3 | 0.015 | 0.094 | 210 |
C100-H2 | 1 | 0.73 | 25 | 0.174 | 0.333 | 3.5 | 4 | 0.015 | 0.094 | 157 |
C100-H3 | 1 | 0.73 | 25 | 0.227 | 0.417 | 3.5 | 5 | 0.015 | 0.094 | 132 |
C100-H4 | 1 | 0.73 | 25 | 0.266 | 0.5 | 3.5 | 6 | 0.015 | 0.094 | 107 |
C100-H5 | 1 | 0.73 | 25 | 0.319 | 0.583 | 3.5 | 7 | 0.015 | 0.094 | 95 |
C100-H6 | 1 | 0.73 | 25 | 0.406 | 0.75 | 3.5 | 9 | 0.015 | 0.094 | 73 |
C100-H7 | 1 | 0.73 | 25 | 0.541 | 1 | 3.5 | 12 | 0.015 | 0.094 | 54 |
C100-H8 | 1 | 0.73 | 25 | 0.688 | 1.25 | 3.5 | 15 | 0.015 | 0.094 | 45 |
C100-H9 | 1 | 0.73 | 25 | 0.813 | 1.5 | 3.5 | 18 | 0.015 | 0.094 | 36 |
C100-H10 | 1 | 0.73 | 25 | 0.957 | 1.75 | 3.5 | 21 | 0.015 | 0.094 | 32 |
C100-H11 | 1 | 0.73 | 25 | 1.083 | 2 | 3.5 | 24 | 0.015 | 0.094 | 27 |
C112-L1 | 1.125 | 0.85 | 12 | 0.146 | 0.3 | 3.5 | 3 | 0.012 | 0.094 | 78 |
C112-L2 | 1.125 | 0.85 | 12 | 0.186 | 0.4 | 3.5 | 4 | 0.012 | 0.094 | 56 |
C112-L3 | 1.125 | 0.85 | 12 | 0.25 | 0.5 | 3.5 | 5 | 0.012 | 0.094 | 48 |
C112-L4 | 1.125 | 0.85 | 12 | 0.295 | 0.6 | 3.5 | 6 | 0.012 | 0.094 | 39 |
C112-L5 | 1.125 | 0.85 | 12 | 0.344 | 0.7 | 3.5 | 7 | 0.012 | 0.094 | 34 |
C112-L6 | 1.125 | 0.85 | 12 | 0.392 | 0.8 | 3.5 | 8 | 0.012 | 0.094 | 29 |
C112-L7 | 1.125 | 0.85 | 12 | 0.488 | 1 | 3.5 | 10 | 0.012 | 0.094 | 23 |
C112-L8 | 1.125 | 0.85 | 12 | 0.659 | 1.3 | 3.5 | 13 | 0.012 | 0.094 | 19 |
C112-L9 | 1.125 | 0.85 | 12 | 0.807 | 1.6 | 3.5 | 16 | 0.012 | 0.094 | 15 |
C112-L10 | 1.125 | 0.85 | 12 | 1.017 | 2 | 3.5 | 20 | 0.012 | 0.094 | 12 |
C112-M1 | 1.125 | 0.85 | 20 | 0.16 | 0.3 | 3.5 | 3 | 0.015 | 0.094 | 143 |
C112-M2 | 1.125 | 0.85 | 20 | 0.202 | 0.4 | 3.5 | 4 | 0.015 | 0.094 | 101 |
C112-M3 | 1.125 | 0.85 | 20 | 0.27 | 0.5 | 3.5 | 5 | 0.015 | 0.094 | 87 |
C112-M4 | 1.125 | 0.85 | 20 | 0.318 | 0.6 | 3.5 | 6 | 0.015 | 0.094 | 71 |
C112-M5 | 1.125 | 0.85 | 20 | 0.381 | 0.7 | 3.5 | 7 | 0.015 | 0.094 | 63 |
C112-M6 | 1.125 | 0.85 | 20 | 0.427 | 0.8 | 3.5 | 8 | 0.015 | 0.094 | 54 |
C112-M7 | 1.125 | 0.85 | 20 | 0.536 | 1 | 3.5 | 10 | 0.015 | 0.094 | 43 |
C112-M8 | 1.125 | 0.85 | 20 | 0.708 | 1.3 | 3.5 | 13 | 0.015 | 0.094 | 34 |
C112-M9 | 1.125 | 0.85 | 20 | 0.861 | 1.6 | 3.5 | 16 | 0.015 | 0.094 | 27 |
C112-M10 | 1.125 | 0.85 | 20 | 1.088 | 2 | 3.5 | 20 | 0.015 | 0.094 | 22 |
C112-H1 | 1.125 | 0.85 | 30 | 0.178 | 0.3 | 3.5 | 3 | 0.018 | 0.094 | 246 |
C112-H2 | 1.125 | 0.85 | 30 | 0.229 | 0.4 | 3.5 | 4 | 0.018 | 0.094 | 175 |
C112-H3 | 1.125 | 0.85 | 30 | 0.303 | 0.5 | 3.5 | 5 | 0.018 | 0.094 | 152 |
C112-H4 | 1.125 | 0.85 | 30 | 0.35 | 0.6 | 3.5 | 6 | 0.018 | 0.094 | 120 |
C112-H5 | 1.125 | 0.85 | 30 | 0.421 | 0.7 | 3.5 | 7 | 0.018 | 0.094 | 108 |
C112-H6 | 1.125 | 0.85 | 30 | 0.47 | 0.8 | 3.5 | 8 | 0.018 | 0.094 | 91 |
C112-H7 | 1.125 | 0.85 | 30 | 0.593 | 1 | 3.5 | 10 | 0.018 | 0.094 | 74 |
C112-H8 | 1.125 | 0.85 | 30 | 0.787 | 1.3 | 3.5 | 13 | 0.018 | 0.094 | 58 |
C112-H9 | 1.125 | 0.85 | 30 | 0.956 | 1.6 | 3.5 | 16 | 0.018 | 0.094 | 47 |
C112-H10 | 1.125 | 0.85 | 30 | 1.202 | 2 | 3.5 | 20 | 0.018 | 0.094 | 38 |
C125-L1 | 1.25 | 1 | 12 | 0.084 | 0.25 | 3.5 | 3 | 0.012 | 0.094 | 56 |
C125-L2 | 1.25 | 1 | 12 | 0.113 | 0.4 | 3.5 | 4 | 0.012 | 0.094 | 42 |
C125-L3 | 1.25 | 1 | 12 | 0.149 | 0.5 | 3.5 | 5 | 0.012 | 0.094 | 34 |
C125-L4 | 1.25 | 1 | 12 | 0.172 | 0.6 | 3.5 | 6 | 0.012 | 0.094 | 28 |
C125-L5 | 1.25 | 1 | 12 | 0.207 | 0.7 | 3.5 | 7 | 0.012 | 0.094 | 24 |
C125-L6 | 1.25 | 1 | 12 | 0.227 | 0.8 | 3.5 | 8 | 0.012 | 0.094 | 21 |
C125-L7 | 1.25 | 1 | 12 | 0.301 | 1 | 3.5 | 10 | 0.012 | 0.094 | 17 |
C125-L8 | 1.25 | 1 | 12 | 0.395 | 1.3 | 3.5 | 13 | 0.012 | 0.094 | 13 |
C125-L9 | 1.25 | 1 | 12 | 0.467 | 1.6 | 3.5 | 16 | 0.012 | 0.094 | 11 |
C125-L10 | 1.25 | 1 | 12 | 0.591 | 2 | 3.5 | 20 | 0.012 | 0.094 | 9 |
C125-M1 | 1.25 | 1 | 20 | 0.124 | 0.3 | 3.5 | 3 | 0.015 | 0.094 | 114 |
C125-M2 | 1.25 | 1 | 20 | 0.165 | 0.4 | 3.5 | 4 | 0.015 | 0.094 | 85 |
C125-M3 | 1.25 | 1 | 20 | 0.215 | 0.5 | 3.5 | 5 | 0.015 | 0.094 | 70 |
C125-M4 | 1.25 | 1 | 20 | 0.253 | 0.6 | 3.5 | 6 | 0.015 | 0.094 | 58 |
C125-M5 | 1.25 | 1 | 20 | 0.303 | 0.7 | 3.5 | 7 | 0.015 | 0.094 | 50 |
C125-M6 | 1.25 | 1 | 20 | 0.341 | 0.8 | 3.5 | 8 | 0.015 | 0.094 | 44 |
C125-M7 | 1.25 | 1 | 20 | 0.427 | 1 | 3.5 | 10 | 0.015 | 0.094 | 35 |
C125-M8 | 1.25 | 1 | 20 | 0.577 | 1.3 | 3.5 | 13 | 0.015 | 0.094 | 28 |
C125-M9 | 1.25 | 1 | 20 | 0.692 | 1.6 | 3.5 | 16 | 0.015 | 0.094 | 22 |
C125-M10 | 1.25 | 1 | 20 | 0.866 | 2 | 3.5 | 20 | 0.015 | 0.094 | 18 |
C125-H1 | 1.25 | 1 | 30 | 0.158 | 0.3 | 3.5 | 3 | 0.019 | 0.094 | 210 |
C125-H2 | 1.25 | 1 | 30 | 0.21 | 0.4 | 3.5 | 4 | 0.019 | 0.094 | 158 |
C125-H3 | 1.25 | 1 | 30 | 0.272 | 0.5 | 3.5 | 5 | 0.019 | 0.094 | 132 |
C125-H4 | 1.25 | 1 | 30 | 0.32 | 0.6 | 3.5 | 6 | 0.019 | 0.094 | 107 |
C125-H5 | 1.25 | 1 | 30 | 0.384 | 0.7 | 3.5 | 7 | 0.019 | 0.094 | 95 |
C125-H6 | 1.25 | 1 | 30 | 0.433 | 0.8 | 3.5 | 8 | 0.019 | 0.094 | 82 |
C125-H7 | 1.25 | 1 | 30 | 0.538 | 1 | 3.5 | 10 | 0.019 | 0.094 | 65 |
C125-H8 | 1.25 | 1 | 30 | 0.717 | 1.3 | 3.5 | 13 | 0.019 | 0.094 | 51 |
C125-H9 | 1.25 | 1 | 30 | 0.878 | 1.6 | 3.5 | 16 | 0.019 | 0.094 | 42 |
C125-H10 | 1.25 | 1 | 30 | 1.103 | 2 | 3.5 | 20 | 0.019 | 0.094 | 33 |
C137-L1 | 1.375 | 1.03 | 15 | 0.075 | 0.3 | 3.5 | 3 | 0.012 | 0.122 | 67 |
C137-L2 | 1.375 | 1.03 | 15 | 0.099 | 0.4 | 3.5 | 4 | 0.012 | 0.122 | 50 |
C137-L3 | 1.375 | 1.03 | 15 | 0.129 | 0.5 | 3.5 | 5 | 0.012 | 0.122 | 40 |
C137-L4 | 1.375 | 1.03 | 15 | 0.155 | 0.6 | 3.5 | 6 | 0.012 | 0.122 | 34 |
C137-L5 | 1.375 | 1.03 | 15 | 0.179 | 0.7 | 3.5 | 7 | 0.012 | 0.122 | 29 |
C137-L6 | 1.375 | 1.03 | 15 | 0.206 | 0.8 | 3.5 | 8 | 0.012 | 0.122 | 25 |
C137-L7 | 1.375 | 1.03 | 15 | 0.256 | 1 | 3.5 | 10 | 0.012 | 0.122 | 20 |
C137-L8 | 1.375 | 1.03 | 15 | 0.341 | 1.3 | 3.5 | 13 | 0.012 | 0.122 | 16 |
C137-L9 | 1.375 | 1.03 | 15 | 0.424 | 1.6 | 3.5 | 16 | 0.012 | 0.122 | 13 |
C137-L10 | 1.375 | 1.03 | 15 | 0.53 | 2 | 3.5 | 20 | 0.012 | 0.122 | 10 |
C137-M1 | 1.375 | 1.03 | 25 | 0.142 | 0.3 | 3.5 | 3 | 0.016 | 0.133 | 158 |
C137-M2 | 1.375 | 1.03 | 25 | 0.186 | 0.4 | 3.5 | 4 | 0.016 | 0.133 | 117 |
C137-M3 | 1.375 | 1.03 | 25 | 0.24 | 0.5 | 3.5 | 5 | 0.016 | 0.133 | 96 |
C137-M4 | 1.375 | 1.03 | 25 | 0.281 | 0.6 | 3.5 | 6 | 0.016 | 0.133 | 78 |
C137-M5 | 1.375 | 1.03 | 25 | 0.34 | 0.7 | 3.5 | 7 | 0.016 | 0.133 | 69 |
C137-M6 | 1.375 | 1.03 | 25 | 0.384 | 0.8 | 3.5 | 8 | 0.016 | 0.133 | 60 |
C137-M7 | 1.375 | 1.03 | 25 | 0.486 | 1 | 3.5 | 10 | 0.016 | 0.133 | 49 |
C137-M8 | 1.375 | 1.03 | 25 | 0.632 | 1.3 | 3.5 | 13 | 0.016 | 0.133 | 37 |
C137-M9 | 1.375 | 1.03 | 25 | 0.788 | 1.6 | 3.5 | 16 | 0.016 | 0.133 | 31 |
C137-M10 | 1.375 | 1.03 | 25 | 0.982 | 2 | 3.5 | 20 | 0.016 | 0.133 | 25 |
C137-H1 | 1.375 | 1.03 | 35 | 0.149 | 0.3 | 3.5 | 3 | 0.018 | 0.133 | 232 |
C137-H2 | 1.375 | 1.03 | 35 | 0.189 | 0.4 | 3.5 | 4 | 0.018 | 0.133 | 166 |
C137-H3 | 1.375 | 1.03 | 35 | 0.247 | 0.5 | 3.5 | 5 | 0.018 | 0.133 | 138 |
C137-H4 | 1.375 | 1.03 | 35 | 0.287 | 0.6 | 3.5 | 6 | 0.018 | 0.133 | 112 |
C137-H5 | 1.375 | 1.03 | 35 | 0.343 | 0.7 | 3.5 | 7 | 0.018 | 0.133 | 98 |
C137-H6 | 1.375 | 1.03 | 35 | 0.39 | 0.8 | 3.5 | 8 | 0.018 | 0.133 | 85 |
C137-H7 | 1.375 | 1.03 | 35 | 0.49 | 1 | 3.5 | 10 | 0.018 | 0.133 | 69 |
C137-H8 | 1.375 | 1.03 | 35 | 0.646 | 1.3 | 3.5 | 13 | 0.018 | 0.133 | 54 |
C137-H9 | 1.375 | 1.03 | 35 | 0.793 | 1.6 | 3.5 | 16 | 0.018 | 0.133 | 43 |
C137-H10 | 1.375 | 1.03 | 35 | 1 | 2 | 3.5 | 20 | 0.018 | 0.133 | 35 |
C150-L1 | 1.5 | 1.14 | 20 | 0.129 | 0.3 | 3.5 | 3 | 0.016 | 0.133 | 117 |
C150-L2 | 1.5 | 1.14 | 20 | 0.164 | 0.4 | 3.5 | 4 | 0.016 | 0.133 | 85 |
C150-L3 | 1.5 | 1.14 | 20 | 0.213 | 0.5 | 3.5 | 5 | 0.016 | 0.133 | 70 |
C150-L4 | 1.5 | 1.14 | 20 | 0.247 | 0.6 | 3.5 | 6 | 0.016 | 0.133 | 57 |
C150-L5 | 1.5 | 1.14 | 20 | 0.301 | 0.7 | 3.5 | 7 | 0.016 | 0.133 | 50 |
C150-L6 | 1.5 | 1.14 | 20 | 0.337 | 0.8 | 3.5 | 8 | 0.016 | 0.133 | 43 |
C150-L7 | 1.5 | 1.14 | 20 | 0.43 | 1 | 3.5 | 10 | 0.016 | 0.133 | 35 |
C150-L8 | 1.5 | 1.14 | 20 | 0.565 | 1.3 | 3.5 | 13 | 0.016 | 0.133 | 27 |
C150-L9 | 1.5 | 1.14 | 20 | 0.694 | 1.6 | 3.5 | 16 | 0.016 | 0.133 | 22 |
C150-L10 | 1.5 | 1.14 | 20 | 0.866 | 2 | 3.5 | 20 | 0.016 | 0.133 | 18 |
C150-M1 | 1.5 | 1.14 | 35 | 0.122 | 0.3 | 3.5 | 3 | 0.018 | 0.133 | 197 |
C150-M2 | 1.5 | 1.14 | 35 | 0.158 | 0.4 | 3.5 | 4 | 0.018 | 0.133 | 145 |
C150-M3 | 1.5 | 1.14 | 35 | 0.206 | 0.5 | 3.5 | 5 | 0.018 | 0.133 | 119 |
C150-M4 | 1.5 | 1.14 | 35 | 0.241 | 0.6 | 3.5 | 6 | 0.018 | 0.133 | 97 |
C150-M5 | 1.5 | 1.14 | 35 | 0.291 | 0.7 | 3.5 | 7 | 0.018 | 0.133 | 86 |
C150-M6 | 1.5 | 1.14 | 35 | 0.324 | 0.8 | 3.5 | 8 | 0.018 | 0.133 | 74 |
C150-M7 | 1.5 | 1.14 | 35 | 0.409 | 1 | 3.5 | 10 | 0.018 | 0.133 | 59 |
C150-M8 | 1.5 | 1.14 | 35 | 0.54 | 1.3 | 3.5 | 13 | 0.018 | 0.133 | 46 |
C150-M9 | 1.5 | 1.14 | 35 | 0.657 | 1.6 | 3.5 | 16 | 0.018 | 0.133 | 37 |
C150-M10 | 1.5 | 1.14 | 35 | 0.835 | 2 | 3.5 | 20 | 0.018 | 0.133 | 30 |
C150-H1 | 1.5 | 1.14 | 60 | 0.166 | 0.3 | 4.5 | 3 | 0.018 | 0.133 | 448 |
C150-H2 | 1.5 | 1.14 | 60 | 0.216 | 0.4 | 4.5 | 4 | 0.018 | 0.133 | 326 |
C150-H3 | 1.5 | 1.14 | 60 | 0.278 | 0.5 | 4.5 | 5 | 0.018 | 0.133 | 270 |
C150-H4 | 1.5 | 1.14 | 60 | 0.329 | 0.6 | 4.5 | 6 | 0.018 | 0.133 | 221 |
C150-H5 | 1.5 | 1.14 | 60 | 0.39 | 0.7 | 4.5 | 7 | 0.018 | 0.133 | 194 |
C150-H6 | 1.5 | 1.14 | 60 | 0.443 | 0.8 | 4.5 | 8 | 0.018 | 0.133 | 168 |
C150-H7 | 1.5 | 1.14 | 60 | 0.555 | 1 | 4.5 | 10 | 0.018 | 0.133 | 135 |
C150-H8 | 1.5 | 1.14 | 60 | 0.726 | 1.3 | 4.5 | 13 | 0.018 | 0.133 | 105 |
C150-H9 | 1.5 | 1.14 | 60 | 0.89 | 1.6 | 4.5 | 16 | 0.018 | 0.133 | 85 |
C150-H10 | 1.5 | 1.14 | 60 | 1.119 | 2 | 4.5 | 20 | 0.018 | 0.133 | 68 |
C175-L1 | 1.75 | 1.34 | 25 | 0.155 | 0.375 | 3.5 | 3 | 0.018 | 0.143 | 114 |
C175-L2 | 1.75 | 1.34 | 25 | 0.2 | 0.5 | 3.5 | 4 | 0.018 | 0.143 | 83 |
C175-L3 | 1.75 | 1.34 | 25 | 0.265 | 0.625 | 3.5 | 5 | 0.018 | 0.143 | 69 |
C175-L4 | 1.75 | 1.34 | 25 | 0.31 | 0.75 | 3.5 | 6 | 0.018 | 0.143 | 57 |
C175-L5 | 1.75 | 1.34 | 25 | 0.367 | 0.87 | 3.5 | 7 | 0.018 | 0.143 | 50 |
C175-L6 | 1.75 | 1.34 | 25 | 0.415 | 1 | 3.5 | 8 | 0.018 | 0.143 | 43 |
C175-L7 | 1.75 | 1.34 | 25 | 0.523 | 1.25 | 3.5 | 10 | 0.018 | 0.143 | 34 |
C175-L8 | 1.75 | 1.34 | 25 | 0.638 | 1.5 | 3.5 | 12 | 0.018 | 0.143 | 29 |
C175-L9 | 1.75 | 1.34 | 25 | 0.737 | 1.75 | 3.5 | 14 | 0.018 | 0.143 | 25 |
C175-L10 | 1.75 | 1.34 | 25 | 0.844 | 2 | 3.5 | 16 | 0.018 | 0.143 | 22 |
C175-M1 | 1.75 | 1.34 | 50 | 0.188 | 0.375 | 4.5 | 3 | 0.018 | 0.143 | 267 |
C175-M2 | 1.75 | 1.34 | 50 | 0.244 | 0.5 | 4.5 | 4 | 0.018 | 0.143 | 195 |
C175-M3 | 1.75 | 1.34 | 50 | 0.315 | 0.625 | 4.5 | 5 | 0.018 | 0.143 | 161 |
C175-M4 | 1.75 | 1.34 | 50 | 0.374 | 0.75 | 4.5 | 6 | 0.018 | 0.143 | 133 |
C175-M5 | 1.75 | 1.34 | 50 | 0.452 | 0.87 | 4.5 | 7 | 0.018 | 0.143 | 120 |
C175-M6 | 1.75 | 1.34 | 50 | 0.505 | 1 | 4.5 | 8 | 0.018 | 0.143 | 101 |
C175-M7 | 1.75 | 1.34 | 50 | 0.629 | 1.25 | 4.5 | 10 | 0.018 | 0.143 | 81 |
C175-M8 | 1.75 | 1.34 | 50 | 0.768 | 1.5 | 4.5 | 12 | 0.018 | 0.143 | 68 |
C175-M9 | 1.75 | 1.34 | 50 | 0.899 | 1.75 | 4.5 | 14 | 0.018 | 0.143 | 59 |
C175-M10 | 1.75 | 1.34 | 50 | 1.026 | 2 | 4.5 | 16 | 0.018 | 0.143 | 51 |
C175-H1 | 1.75 | 1.34 | 90 | 0.232 | 0.375 | 4.5 | 3 | 0.024 | 0.148 | 629 |
C175-H2 | 1.75 | 1.34 | 90 | 0.314 | 0.5 | 4.5 | 4 | 0.024 | 0.148 | 484 |
C175-H3 | 1.75 | 1.34 | 90 | 0.409 | 0.625 | 4.5 | 5 | 0.024 | 0.148 | 417 |
C175-H4 | 1.75 | 1.34 | 90 | 0.482 | 0.75 | 4.5 | 6 | 0.024 | 0.148 | 336 |
C175-H5 | 1.75 | 1.34 | 90 | 0.577 | 0.87 | 4.5 | 7 | 0.024 | 0.148 | 307 |
C175-H6 | 1.75 | 1.34 | 90 | 0.651 | 1 | 4.5 | 8 | 0.024 | 0.148 | 258 |
C175-H7 | 1.75 | 1.34 | 90 | 0.813 | 1.25 | 4.5 | 10 | 0.024 | 0.148 | 206 |
C175-H8 | 1.75 | 1.34 | 90 | 0.98 | 1.5 | 4.5 | 12 | 0.024 | 0.148 | 173 |
C175-H9 | 1.75 | 1.34 | 90 | 1.147 | 1.75 | 4.5 | 14 | 0.024 | 0.148 | 149 |
C175-H10 | 1.75 | 1.34 | 90 | 1.317 | 2 | 4.5 | 16 | 0.024 | 0.148 | 132 |
C200-L1 | 2 | 1.6 | 25 | 0.094 | 0.375 | 3.5 | 3 | 0.018 | 0.143 | 89 |
C200-L2 | 2 | 1.6 | 25 | 0.12 | 0.5 | 3.5 | 4 | 0.018 | 0.143 | 66 |
C200-L3 | 2 | 1.6 | 25 | 0.158 | 0.625 | 3.5 | 5 | 0.018 | 0.143 | 54 |
C200-L4 | 2 | 1.6 | 25 | 0.179 | 0.75 | 3.5 | 6 | 0.018 | 0.143 | 44 |
C200-L5 | 2 | 1.6 | 25 | 0.217 | 0.87 | 3.5 | 7 | 0.018 | 0.143 | 38 |
C200-L6 | 2 | 1.6 | 25 | 0.243 | 1 | 3.5 | 8 | 0.018 | 0.143 | 33 |
C200-L7 | 2 | 1.6 | 25 | 0.306 | 1.25 | 3.5 | 10 | 0.018 | 0.143 | 26 |
C200-L8 | 2 | 1.6 | 25 | 0.365 | 1.5 | 3.5 | 12 | 0.018 | 0.143 | 22 |
C200-L9 | 2 | 1.6 | 25 | 0.433 | 1.75 | 3.5 | 14 | 0.018 | 0.143 | 19 |
C200-L10 | 2 | 1.6 | 25 | 0.49 | 2 | 3.5 | 16 | 0.018 | 0.143 | 17 |
C200-M1 | 2 | 1.6 | 50 | 0.14 | 0.375 | 4.5 | 3 | 0.018 | 0.143 | 213 |
C200-M2 | 2 | 1.6 | 50 | 0.184 | 0.5 | 4.5 | 4 | 0.018 | 0.143 | 158 |
C200-M3 | 2 | 1.6 | 50 | 0.245 | 0.625 | 4.5 | 5 | 0.018 | 0.143 | 132 |
C200-M4 | 2 | 1.6 | 50 | 0.278 | 0.75 | 4.5 | 6 | 0.018 | 0.143 | 106 |
C200-M5 | 2 | 1.6 | 50 | 0.345 | 0.87 | 4.5 | 7 | 0.018 | 0.143 | 95 |
C200-M6 | 2 | 1.6 | 50 | 0.395 | 1 | 4.5 | 8 | 0.018 | 0.143 | 83 |
C200-M7 | 2 | 1.6 | 50 | 0.498 | 1.25 | 4.5 | 10 | 0.018 | 0.143 | 66 |
C200-M8 | 2 | 1.6 | 50 | 0.593 | 1.5 | 4.5 | 12 | 0.018 | 0.143 | 55 |
C200-M9 | 2 | 1.6 | 50 | 0.694 | 1.75 | 4.5 | 14 | 0.018 | 0.143 | 47 |
C200-M10 | 2 | 1.6 | 50 | 0.8 | 2 | 4.5 | 16 | 0.018 | 0.143 | 42 |
C200-H1 | 2 | 1.6 | 90 | 0.197 | 0.375 | 4.5 | 3 | 0.024 | 0.148 | 506 |
C200-H2 | 2 | 1.6 | 90 | 0.258 | 0.5 | 4.5 | 4 | 0.024 | 0.148 | 372 |
C200-H3 | 2 | 1.6 | 90 | 0.332 | 0.625 | 4.5 | 5 | 0.024 | 0.148 | 307 |
C200-H4 | 2 | 1.6 | 90 | 0.389 | 0.75 | 4.5 | 6 | 0.024 | 0.148 | 249 |
C200-H5 | 2 | 1.6 | 90 | 0.465 | 0.87 | 4.5 | 7 | 0.024 | 0.148 | 222 |
C200-H6 | 2 | 1.6 | 90 | 0.525 | 1 | 4.5 | 8 | 0.024 | 0.148 | 189 |
C200-H7 | 2 | 1.6 | 90 | 0.661 | 1.25 | 4.5 | 10 | 0.024 | 0.148 | 153 |
C200-H8 | 2 | 1.6 | 90 | 0.781 | 1.5 | 4.5 | 12 | 0.024 | 0.148 | 125 |
C200-H9 | 2 | 1.6 | 90 | 0.941 | 1.75 | 4.5 | 14 | 0.024 | 0.148 | 111 |
C200-H10 | 2 | 1.6 | 90 | 1.069 | 2 | 4.5 | 16 | 0.024 | 0.148 | 97 |
Contact Person: Mrs. Janet
Tel: 0086-18957716162
Fax: 86-577-62606162
C Series Multi Turn Wave Springs - Inch Plain ends
Nested Wave Springs Multi Turn Wave Springs - Inch Plain ends
LS Series Wave Springs Inch Linear Springs
Custom Stainless Steel Linear Wave Springs for Toys , Size 5mm-1000mm
Square Wire Constant Section Retaining Rings With Radial Pinch Installation / Removal Provisions
Rectangle Section Wire Snap Rings For Automotive OEM / ODM Available
No Custom Tooling Charges Wire Snap Ring With ISO9001 TS16949 Certificate
