Product Details:
Payment & Shipping Terms:
|
Name: | High Precision Industrial Nested Wave Springs 17-7ph | Size: | 5mm-1000mm |
---|---|---|---|
Specification: | RoHS, REACH | Used For: | Bearing Pre Tightening |
Material: | Stainless Steel | Stock: | More Than 2000 Types |
High Light: | wave disc spring washer,wavy washer spring |

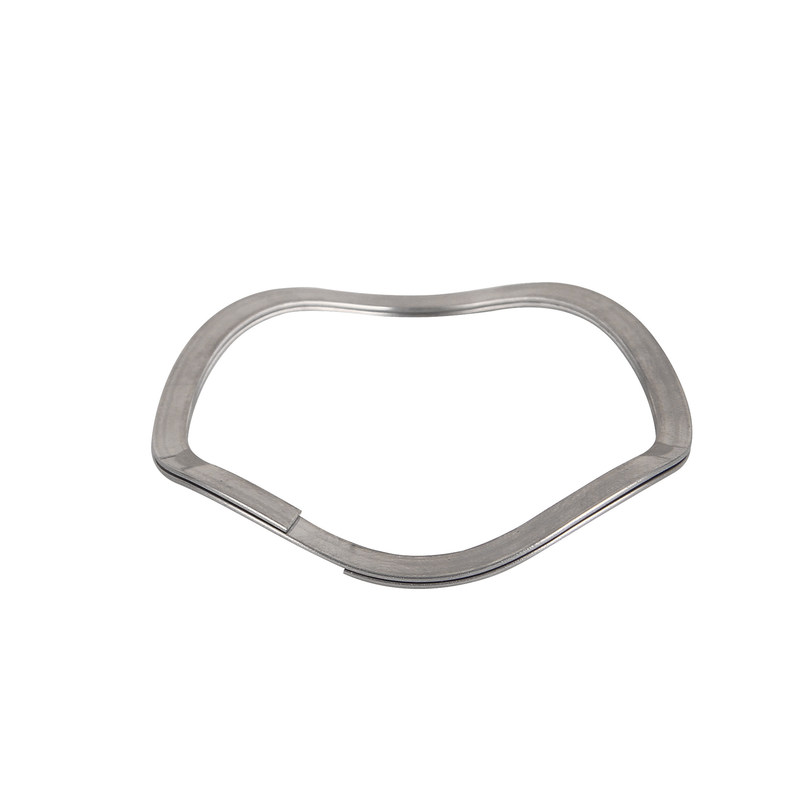

OEM Custom High Precision Industrial Nested Wave Springs 17-7ph Stainless Steel
Description:
Nested Wave Springs are pre-stacked in parallel from one continuous filament of flat wire. The need to stack individual springs for higher loads is no longer necessary. Nested springs result in a spring rate that increases proportionally to the number of turns. They can exert tremendous forces, yet maintain the precision of a circular-grain wave spring. In many applications, Nested Wave Springs replace Belleville Springs, particularly in cases where a high but accurate force is needed.
Quick Detali:
Product Name: Nested Wave Springs
Material: Stainless steel,mald steel,zinc alloy,aluminium alloy,brass,bronze,copper,etc.
Color: Customied
Standard: Non-standard
Surface treatment: Zinc plating, chrome palting,nickel plating,painting,sand blasting,powder coating,polishing,anodized,baking finish,oxidation,electroplate,passivate
Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420,A2
2. Steel:C45(K1045), C46(K1046),C20,1210,1018
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4, Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.Plastic :ABS,PP,Nylon,POM,G10,PEEK,PVC ect .
8.OEM according to your request
Processing Steps
Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing
Primary Competitive Advantage
We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings
We make the Product as your samples or your design fully
We have strong researching and developing team to solve Product problem
There are lot of raw material suppliers around our factory
We supply high quality Productfor many world famous companies
Our factory got ISO 9001 and TS16949 certificate
Small trial orders can be accepted, free sample is available
Our price is reasonable and keep top quality for every clients
Application:
Aviation, automotive, motorbike, bicycle, automatic equipment,
Household appliance, medical device, toy, telecommunication,
Computer, instrument and meter, furniture, electric tools,
Mold and other industries
Wave spring measurements
Specification:
Part Number | Operates in Bore Diameter(mm) | Llears Shaft Diameter(mm) | Load (N) | Work Height(mm) | Free Height(mm) | Number of Waves | Number of Turns | ThiLkness(mm) | Radial Wall(mm) | Spring Rate(N/mm) |
LM06-L1* | 6 | 4 | 6 | 0.61 | 1.52 | 2.5 | 3 | 0.13 | 0.51 | 6.59 |
LM06-L2* | 6 | 4 | 6 | 0.81 | 2.03 | 2.5 | 4 | 0.13 | 0.51 | 4.92 |
LM06-L3* | 6 | 4 | 6 | 1.02 | 2.54 | 2.5 | 5 | 0.13 | 0.51 | 3.95 |
LM06-L4* | 6 | 4 | 6 | 1.22 | 3.05 | 2.5 | 6 | 0.13 | 0.51 | 3.28 |
LM06-L5* | 6 | 4 | 6 | 1.42 | 3.56 | 2.5 | 7 | 0.13 | 0.51 | 2.8 |
LM06-L6* | 6 | 4 | 6 | 1.63 | 4.06 | 2.5 | 8 | 0.13 | 0.51 | 2.47 |
LM06-L7* | 6 | 4 | 6 | 1.83 | 4.57 | 2.5 | 9 | 0.13 | 0.51 | 2.19 |
LM06-L8* | 6 | 4 | 6 | 2.24 | 5.59 | 2.5 | 11 | 0.13 | 0.51 | 1.79 |
LM06-L9* | 6 | 4 | 6 | 2.64 | 6.6 | 2.5 | 13 | 0.13 | 0.51 | 1.52 |
LM06-M1* | 6 | 4 | 12 | 0.74 | 1.52 | 2.5 | 3 | 0.15 | 0.61 | 15.38 |
LM06-M2* | 6 | 4 | 12 | 0.97 | 2.03 | 2.5 | 4 | 0.15 | 0.61 | 11.32 |
LM06-M3* | 6 | 4 | 12 | 1.22 | 2.54 | 2.5 | 5 | 0.15 | 0.61 | 9.09 |
LM06-M4* | 6 | 4 | 12 | 1.47 | 3.05 | 2.5 | 6 | 0.15 | 0.61 | 7.59 |
LM06-M5* | 6 | 4 | 12 | 1.7 | 3.56 | 2.5 | 7 | 0.15 | 0.61 | 6.45 |
LM06-M6* | 6 | 4 | 12 | 1.96 | 4.06 | 2.5 | 8 | 0.15 | 0.61 | 5.71 |
LM06-M7* | 6 | 4 | 12 | 2.18 | 4.57 | 2.5 | 9 | 0.15 | 0.61 | 5.02 |
LM06-M8* | 6 | 4 | 12 | 2.69 | 5.59 | 2.5 | 11 | 0.15 | 0.61 | 4.14 |
LM06-M9* | 6 | 4 | 12 | 3.18 | 6.6 | 2.5 | 13 | 0.15 | 0.61 | 3.51 |
LM08-L1 | 8 | 5 | 15 | 1.7 | 2.82 | 2.5 | 3 | 0.2 | 0.81 | 13.39 |
LM08-L2 | 8 | 5 | 15 | 2.39 | 3.76 | 2.5 | 4 | 0.2 | 0.81 | 10.95 |
LM08-L3 | 8 | 5 | 15 | 2.74 | 4.7 | 2.5 | 5 | 0.2 | 0.81 | 7.65 |
LM08-L4 | 8 | 5 | 15 | 3.56 | 5.64 | 2.5 | 6 | 0.2 | 0.81 | 7.21 |
LM08-L5 | 8 | 5 | 15 | 4.01 | 6.58 | 2.5 | 7 | 0.2 | 0.81 | 5.84 |
LM08-L6 | 8 | 5 | 15 | 4.57 | 7.52 | 2.5 | 8 | 0.2 | 0.81 | 5.08 |
LM08-L7 | 8 | 5 | 15 | 5.26 | 8.46 | 2.5 | 9 | 0.2 | 0.81 | 4.69 |
LM08-L8 | 8 | 5 | 15 | 6.35 | 10.34 | 2.5 | 11 | 0.2 | 0.81 | 3.76 |
LM08-L9 | 8 | 5 | 15 | 7.37 | 12.22 | 2.5 | 13 | 0.2 | 0.81 | 3.09 |
LM08-M1 | 8 | 5 | 30 | 1.78 | 2.82 | 2.5 | 3 | 0.25 | 0.81 | 28.85 |
LM08-M2 | 8 | 5 | 30 | 2.54 | 3.76 | 2.5 | 4 | 0.25 | 0.81 | 24.59 |
LM08-M3 | 8 | 5 | 30 | 3.05 | 4.7 | 2.5 | 5 | 0.25 | 0.81 | 18.18 |
LM08-M4 | 8 | 5 | 30 | 3.81 | 5.64 | 2.5 | 6 | 0.25 | 0.81 | 16.39 |
LM08-M5 | 8 | 5 | 30 | 4.32 | 6.58 | 2.5 | 7 | 0.25 | 0.81 | 13.27 |
LM08-M6 | 8 | 5 | 30 | 4.95 | 7.52 | 2.5 | 8 | 0.25 | 0.81 | 11.67 |
LM08-M7 | 8 | 5 | 30 | 5.59 | 8.46 | 2.5 | 9 | 0.25 | 0.81 | 10.45 |
LM08-M8 | 8 | 5 | 30 | 6.86 | 10.34 | 2.5 | 11 | 0.25 | 0.81 | 8.62 |
LM08-M9 | 8 | 5 | 30 | 7.87 | 12.22 | 2.5 | 13 | 0.25 | 0.81 | 6.9 |
LM10-L1 | 10 | 7 | 18 | 1.91 | 3.96 | 2.5 | 3 | 0.2 | 0.81 | 8.78 |
LM10-L2 | 10 | 7 | 18 | 2.54 | 5.28 | 2.5 | 4 | 0.2 | 0.81 | 6.57 |
LM10-L3 | 10 | 7 | 18 | 3.15 | 6.6 | 2.5 | 5 | 0.2 | 0.81 | 5.22 |
LM10-L4 | 10 | 7 | 18 | 3.78 | 7.92 | 2.5 | 6 | 0.2 | 0.81 | 4.35 |
LM10-L5 | 10 | 7 | 18 | 4.42 | 9.25 | 2.5 | 7 | 0.2 | 0.81 | 3.73 |
LM10-L6 | 10 | 7 | 18 | 5.05 | 10.57 | 2.5 | 8 | 0.2 | 0.81 | 3.26 |
LM10-L7 | 10 | 7 | 18 | 5.69 | 11.89 | 2.5 | 9 | 0.2 | 0.81 | 2.9 |
LM10-L8 | 10 | 7 | 18 | 6.32 | 13.21 | 2.5 | 10 | 0.2 | 0.81 | 2.61 |
LM10-L9 | 10 | 7 | 18 | 6.96 | 14.53 | 2.5 | 11 | 0.2 | 0.81 | 2.38 |
LM10-M1 | 10 | 7 | 35 | 2.03 | 3.96 | 2.5 | 3 | 0.28 | 0.81 | 18.13 |
LM10-M2 | 10 | 7 | 35 | 2.79 | 5.28 | 2.5 | 4 | 0.28 | 0.81 | 14.06 |
LM10-M3 | 10 | 7 | 35 | 3.56 | 6.6 | 2.5 | 5 | 0.28 | 0.81 | 11.51 |
LM10-M4 | 10 | 7 | 35 | 4.32 | 7.92 | 2.5 | 6 | 0.28 | 0.81 | 9.72 |
LM10-M5 | 10 | 7 | 35 | 5.08 | 9.25 | 2.5 | 7 | 0.28 | 0.81 | 8.39 |
LM10-M6 | 10 | 7 | 35 | 5.84 | 10.57 | 2.5 | 8 | 0.28 | 0.81 | 7.4 |
LM10-M7 | 10 | 7 | 35 | 6.6 | 11.89 | 2.5 | 9 | 0.28 | 0.81 | 6.62 |
LM10-M8 | 10 | 7 | 35 | 7.37 | 13.21 | 2.5 | 10 | 0.28 | 0.81 | 5.99 |
LM10-M9 | 10 | 7 | 35 | 8.13 | 14.53 | 2.5 | 11 | 0.28 | 0.81 | 5.47 |
LM12-L1 | 12 | 9 | 20 | 1.47 | 4.34 | 2.5 | 3 | 0.2 | 1.02 | 6.97 |
LM12-L2 | 12 | 9 | 20 | 1.98 | 5.79 | 2.5 | 4 | 0.2 | 1.02 | 5.25 |
LM12-L3 | 12 | 9 | 20 | 2.46 | 7.24 | 2.5 | 5 | 0.2 | 1.02 | 4.18 |
LM12-L4 | 12 | 9 | 20 | 2.95 | 8.69 | 2.5 | 6 | 0.2 | 1.02 | 3.48 |
LM12-L5 | 12 | 9 | 20 | 3.45 | 10.13 | 2.5 | 7 | 0.2 | 1.02 | 2.99 |
LM12-L6 | 12 | 9 | 20 | 3.94 | 11.58 | 2.5 | 8 | 0.2 | 1.02 | 2.62 |
LM12-L7 | 12 | 9 | 20 | 4.45 | 13.03 | 2.5 | 9 | 0.2 | 1.02 | 2.33 |
LM12-L8 | 12 | 9 | 20 | 4.93 | 14.48 | 2.5 | 10 | 0.2 | 1.02 | 2.09 |
LM12-L9 | 12 | 9 | 20 | 5.44 | 15.93 | 2.5 | 11 | 0.2 | 1.02 | 1.91 |
LM12-M1 | 12 | 8.5 | 40 | 2.36 | 4.34 | 2.5 | 3 | 0.28 | 1.17 | 20.2 |
LM12-M2 | 12 | 8.5 | 40 | 3.18 | 5.79 | 2.5 | 4 | 0.28 | 1.17 | 15.33 |
LM12-M3 | 12 | 8.5 | 40 | 3.96 | 7.24 | 2.5 | 5 | 0.28 | 1.17 | 12.2 |
LM12-M4 | 12 | 8.5 | 40 | 4.75 | 8.69 | 2.5 | 6 | 0.28 | 1.17 | 10.15 |
LM12-M5 | 12 | 8.5 | 40 | 5.54 | 10.13 | 2.5 | 7 | 0.28 | 1.17 | 8.71 |
LM12-M6 | 12 | 8.5 | 40 | 6.32 | 11.58 | 2.5 | 8 | 0.28 | 1.17 | 7.6 |
LM12-M7 | 12 | 8.5 | 40 | 7.11 | 13.03 | 2.5 | 9 | 0.28 | 1.17 | 6.76 |
LM12-M8 | 12 | 8.5 | 40 | 7.92 | 14.48 | 2.5 | 10 | 0.28 | 1.17 | 6.1 |
LM12-M9 | 12 | 8.5 | 40 | 8.71 | 15.93 | 2.5 | 11 | 0.28 | 1.17 | 5.54 |
LM12-H1 | 12 | 8.5 | 60 | 1.98 | 4.34 | 2.5 | 3 | 0.3 | 1.14 | 25.42 |
LM12-H2 | 12 | 8.5 | 60 | 2.64 | 5.79 | 2.5 | 4 | 0.3 | 1.14 | 19.05 |
LM12-H3 | 12 | 8.5 | 60 | 3.3 | 7.24 | 2.5 | 5 | 0.3 | 1.14 | 15.23 |
LM12-H4 | 12 | 8.5 | 60 | 3.99 | 8.69 | 2.5 | 6 | 0.3 | 1.14 | 12.77 |
LM12-H5 | 12 | 8.5 | 60 | 4.65 | 10.13 | 2.5 | 7 | 0.3 | 1.14 | 10.95 |
LM12-H6 | 12 | 8.5 | 60 | 5.31 | 11.58 | 2.5 | 8 | 0.3 | 1.14 | 9.57 |
LM12-H7 | 12 | 8.5 | 60 | 5.97 | 13.03 | 2.5 | 9 | 0.3 | 1.14 | 8.5 |
LM12-H8 | 12 | 8.5 | 60 | 6.63 | 14.48 | 2.5 | 10 | 0.3 | 1.14 | 7.64 |
LM12-H9 | 12 | 8.5 | 60 | 7.29 | 15.93 | 2.5 | 11 | 0.3 | 1.14 | 6.94 |
LM14-L1 | 14 | 10 | 22 | 2.18 | 4.95 | 2.5 | 3 | 0.23 | 1.47 | 7.94 |
LM14-L2 | 14 | 10 | 22 | 2.95 | 6.6 | 2.5 | 4 | 0.23 | 1.47 | 6.03 |
LM14-L3 | 14 | 10 | 22 | 3.71 | 8.26 | 2.5 | 5 | 0.23 | 1.47 | 4.84 |
LM14-L4 | 14 | 10 | 22 | 4.52 | 9.91 | 2.5 | 6 | 0.23 | 1.47 | 4.08 |
LM14-L5 | 14 | 10 | 22 | 5.33 | 11.56 | 2.5 | 7 | 0.23 | 1.47 | 3.53 |
LM14-L6 | 14 | 10 | 22 | 6.17 | 13.21 | 2.5 | 8 | 0.23 | 1.47 | 3.13 |
LM14-L7 | 14 | 10 | 22 | 7.01 | 14.86 | 2.5 | 9 | 0.23 | 1.47 | 2.8 |
LM14-L8 | 14 | 10 | 22 | 7.85 | 16.51 | 2.5 | 10 | 0.23 | 1.47 | 2.54 |
LM14-L9 | 14 | 10 | 22 | 8.71 | 18.16 | 2.5 | 11 | 0.23 | 1.47 | 2.33 |
LM14-M1 | 14 | 10 | 50 | 2.18 | 4.95 | 2.5 | 3 | 0.3 | 1.52 | 18.05 |
LM14-M2 | 14 | 10 | 50 | 2.95 | 6.6 | 2.5 | 4 | 0.3 | 1.52 | 13.7 |
LM14-M3 | 14 | 10 | 50 | 3.71 | 8.26 | 2.5 | 5 | 0.3 | 1.52 | 10.99 |
LM14-M4 | 14 | 10 | 50 | 4.52 | 9.91 | 2.5 | 6 | 0.3 | 1.52 | 9.28 |
LM14-M5 | 14 | 10 | 50 | 5.33 | 11.56 | 2.5 | 7 | 0.3 | 1.52 | 8.03 |
LM14-M6 | 14 | 10 | 50 | 6.17 | 13.21 | 2.5 | 8 | 0.3 | 1.52 | 7.1 |
LM14-M7 | 14 | 10 | 50 | 7.01 | 14.86 | 2.5 | 9 | 0.3 | 1.52 | 6.37 |
LM14-M8 | 14 | 10 | 50 | 7.85 | 16.51 | 2.5 | 10 | 0.3 | 1.52 | 5.77 |
LM14-M9 | 14 | 10 | 50 | 8.71 | 18.16 | 2.5 | 11 | 0.3 | 1.52 | 5.29 |
LM14-H1 | 14 | 9 | 80 | 3.15 | 4.95 | 2.5 | 3 | 0.38 | 1.52 | 44.44 |
LM14-H2 | 14 | 9 | 80 | 4.19 | 6.6 | 2.5 | 4 | 0.38 | 1.52 | 33.2 |
LM14-H3 | 14 | 9 | 80 | 5.26 | 8.26 | 2.5 | 5 | 0.38 | 1.52 | 26.67 |
LM14-H4 | 14 | 9 | 80 | 6.3 | 9.91 | 2.5 | 6 | 0.38 | 1.52 | 22.16 |
LM14-H5 | 14 | 9 | 80 | 7.34 | 11.56 | 2.5 | 7 | 0.38 | 1.52 | 18.96 |
LM14-H6 | 14 | 9 | 80 | 8.41 | 13.21 | 2.5 | 8 | 0.38 | 1.52 | 16.67 |
LM14-H7 | 14 | 9 | 80 | 9.45 | 14.86 | 2.5 | 9 | 0.38 | 1.52 | 14.79 |
LM14-H8 | 14 | 9 | 80 | 10.49 | 16.51 | 2.5 | 10 | 0.38 | 1.52 | 13.29 |
LM14-H9 | 14 | 9 | 80 | 11.56 | 18.16 | 2.5 | 11 | 0.38 | 1.52 | 12.12 |
LM15-L1 | 15 | 11 | 25 | 2.57 | 5.18 | 2.5 | 3 | 0.25 | 1.47 | 9.58 |
LM15-L2 | 15 | 11 | 25 | 3.43 | 6.91 | 2.5 | 4 | 0.25 | 1.47 | 7.18 |
LM15-L3 | 15 | 11 | 25 | 4.27 | 8.64 | 2.5 | 5 | 0.25 | 1.47 | 5.72 |
LM15-L4 | 15 | 11 | 25 | 5.13 | 10.36 | 2.5 | 6 | 0.25 | 1.47 | 4.78 |
LM15-L5 | 15 | 11 | 25 | 5.99 | 12.09 | 2.5 | 7 | 0.25 | 1.47 | 4.1 |
LM15-L6 | 15 | 11 | 25 | 6.83 | 13.82 | 2.5 | 8 | 0.25 | 1.47 | 3.58 |
LM15-L7 | 15 | 11 | 25 | 7.7 | 15.54 | 2.5 | 9 | 0.25 | 1.47 | 3.19 |
LM15-L8 | 15 | 11 | 25 | 8.53 | 17.27 | 2.5 | 10 | 0.25 | 1.47 | 2.86 |
LM15-L9 | 15 | 11 | 25 | 9.4 | 19 | 2.5 | 11 | 0.25 | 1.47 | 2.6 |
LM15-M1 | 15 | 10 | 50 | 3.43 | 5.18 | 3.5 | 3 | 0.23 | 1.47 | 28.57 |
LM15-M2 | 15 | 10 | 50 | 4.57 | 6.91 | 3.5 | 4 | 0.23 | 1.47 | 21.37 |
LM15-M3 | 15 | 10 | 50 | 5.72 | 8.64 | 3.5 | 5 | 0.23 | 1.47 | 17.12 |
LM15-M4 | 15 | 10 | 50 | 6.86 | 10.36 | 3.5 | 6 | 0.23 | 1.47 | 14.29 |
LM15-M5 | 15 | 10 | 50 | 8 | 12.09 | 3.5 | 7 | 0.23 | 1.47 | 12.22 |
LM15-M6 | 15 | 10 | 50 | 9.14 | 13.82 | 3.5 | 8 | 0.23 | 1.47 | 10.68 |
LM15-M7 | 15 | 10 | 50 | 10.29 | 15.54 | 3.5 | 9 | 0.23 | 1.47 | 9.52 |
LM15-M8 | 15 | 10 | 50 | 11.43 | 17.27 | 3.5 | 10 | 0.23 | 1.47 | 8.56 |
LM15-M9 | 15 | 10 | 50 | 12.57 | 19 | 3.5 | 11 | 0.23 | 1.47 | 7.78 |
LM15-H1 | 15 | 10 | 80 | 3.2 | 5.18 | 3.5 | 3 | 0.25 | 1.47 | 40.4 |
LM15-H2 | 15 | 10 | 80 | 4.19 | 6.91 | 3.5 | 4 | 0.25 | 1.47 | 29.41 |
LM15-H3 | 15 | 10 | 80 | 5.23 | 8.64 | 3.5 | 5 | 0.25 | 1.47 | 23.46 |
LM15-H4 | 15 | 10 | 80 | 6.27 | 10.36 | 3.5 | 6 | 0.25 | 1.47 | 19.56 |
LM15-H5 | 15 | 10 | 80 | 7.32 | 12.09 | 3.5 | 7 | 0.25 | 1.47 | 16.77 |
LM15-H6 | 15 | 10 | 80 | 8.36 | 13.82 | 3.5 | 8 | 0.25 | 1.47 | 14.65 |
LM15-H7 | 15 | 10 | 80 | 9.4 | 15.54 | 3.5 | 9 | 0.25 | 1.47 | 13.03 |
LM15-H8 | 15 | 10 | 80 | 10.46 | 17.27 | 3.5 | 10 | 0.25 | 1.47 | 11.75 |
LM15-H9 | 15 | 10 | 80 | 11.51 | 19 | 3.5 | 11 | 0.25 | 1.47 | 10.68 |
LM16-L1 | 16 | 11 | 25 | 2.11 | 5.41 | 2.5 | 3 | 0.25 | 1.47 | 7.58 |
LM16-L2 | 16 | 11 | 25 | 2.79 | 7.21 | 2.5 | 4 | 0.25 | 1.47 | 5.66 |
LM16-L3 | 16 | 11 | 25 | 3.51 | 9.02 | 2.5 | 5 | 0.25 | 1.47 | 4.54 |
LM16-L4 | 16 | 11 | 25 | 4.19 | 10.82 | 2.5 | 6 | 0.25 | 1.47 | 3.77 |
LM16-L5 | 16 | 11 | 25 | 4.9 | 12.62 | 2.5 | 7 | 0.25 | 1.47 | 3.24 |
LM16-L6 | 16 | 11 | 25 | 6.3 | 16.23 | 2.5 | 9 | 0.25 | 1.47 | 2.52 |
LM16-L7 | 16 | 11 | 25 | 7.7 | 19.84 | 2.5 | 11 | 0.25 | 1.47 | 2.06 |
LM16-L8 | 16 | 11 | 25 | 9.09 | 23.44 | 2.5 | 13 | 0.25 | 1.47 | 1.74 |
LM16-M1 | 16 | 11 | 55 | 3.63 | 5.41 | 3.5 | 3 | 0.25 | 1.47 | 30.9 |
LM16-M2 | 16 | 11 | 55 | 4.83 | 7.21 | 3.5 | 4 | 0.25 | 1.47 | 23.11 |
LM16-M3 | 16 | 11 | 55 | 6.05 | 9.02 | 3.5 | 5 | 0.25 | 1.47 | 18.52 |
LM16-M4 | 16 | 11 | 55 | 7.24 | 10.82 | 3.5 | 6 | 0.25 | 1.47 | 15.36 |
LM16-M5 | 16 | 11 | 55 | 8.46 | 12.62 | 3.5 | 7 | 0.25 | 1.47 | 13.22 |
LM16-M6 | 16 | 11 | 55 | 10.87 | 16.23 | 3.5 | 9 | 0.25 | 1.47 | 10.26 |
LM16-M7 | 16 | 11 | 55 | 13.28 | 19.84 | 3.5 | 11 | 0.25 | 1.47 | 8.38 |
LM16-M8 | 16 | 11 | 55 | 15.7 | 23.44 | 3.5 | 13 | 0.25 | 1.47 | 7.11 |
LM16-H1 | 16 | 11 | 90 | 3.3 | 5.41 | 3.5 | 3 | 0.3 | 1.52 | 42.65 |
LM16-H2 | 16 | 11 | 90 | 4.57 | 7.21 | 3.5 | 4 | 0.3 | 1.52 | 34.09 |
LM16-H3 | 16 | 11 | 90 | 5.59 | 9.02 | 3.5 | 5 | 0.3 | 1.52 | 26.24 |
LM16-H4 | 16 | 11 | 90 | 6.86 | 10.82 | 3.5 | 6 | 0.3 | 1.52 | 22.73 |
LM16-H5 | 16 | 11 | 90 | 7.87 | 12.62 | 3.5 | 7 | 0.3 | 1.52 | 18.95 |
LM16-H6 | 16 | 11 | 90 | 10.16 | 16.23 | 3.5 | 9 | 0.3 | 1.52 | 14.83 |
LM16-H7 | 16 | 11 | 90 | 12.45 | 19.84 | 3.5 | 11 | 0.3 | 1.52 | 12.18 |
LM16-H8 | 16 | 11 | 90 | 14.73 | 23.44 | 3.5 | 13 | 0.3 | 1.52 | 10.33 |
LM18-L1 | 18 | 13 | 30 | 3.63 | 5.72 | 3.5 | 3 | 0.2 | 1.8 | 14.35 |
LM18-L2 | 18 | 13 | 30 | 4.75 | 7.62 | 3.5 | 4 | 0.2 | 1.8 | 10.45 |
LM18-L3 | 18 | 13 | 30 | 5.94 | 9.53 | 3.5 | 5 | 0.2 | 1.8 | 8.36 |
LM18-L4 | 18 | 13 | 30 | 7.14 | 11.43 | 3.5 | 6 | 0.2 | 1.8 | 6.99 |
LM18-L5 | 18 | 13 | 30 | 8.31 | 13.34 | 3.5 | 7 | 0.2 | 1.8 | 5.96 |
LM18-L6 | 18 | 13 | 30 | 10.69 | 17.15 | 3.5 | 9 | 0.2 | 1.8 | 4.64 |
LM18-L7 | 18 | 13 | 30 | 14.25 | 22.86 | 3.5 | 12 | 0.2 | 1.8 | 3.48 |
LM18-M1 | 18 | 13 | 55 | 3.68 | 5.72 | 3.5 | 3 | 0.25 | 1.83 | 26.96 |
LM18-M2 | 18 | 13 | 55 | 4.98 | 7.62 | 3.5 | 4 | 0.25 | 1.83 | 20.83 |
LM18-M3 | 18 | 13 | 55 | 6.22 | 9.53 | 3.5 | 5 | 0.25 | 1.83 | 16.62 |
LM18-M4 | 18 | 13 | 55 | 7.47 | 11.43 | 3.5 | 6 | 0.25 | 1.83 | 13.89 |
LM18-M5 | 18 | 13 | 55 | 8.74 | 13.34 | 3.5 | 7 | 0.25 | 1.83 | 11.96 |
LM18-M6 | 18 | 13 | 55 | 11.23 | 17.15 | 3.5 | 9 | 0.25 | 1.83 | 9.29 |
LM18-M7 | 18 | 13 | 55 | 14.96 | 22.86 | 3.5 | 12 | 0.25 | 1.83 | 6.96 |
LM18-H1 | 18 | 13 | 90 | 3.84 | 5.72 | 3.5 | 3 | 0.3 | 1.83 | 47.87 |
LM18-H2 | 18 | 13 | 90 | 5.13 | 7.62 | 3.5 | 4 | 0.3 | 1.83 | 36.14 |
LM18-H3 | 18 | 13 | 90 | 6.4 | 9.53 | 3.5 | 5 | 0.3 | 1.83 | 28.75 |
LM18-H4 | 18 | 13 | 90 | 7.7 | 11.43 | 3.5 | 6 | 0.3 | 1.83 | 24.13 |
LM18-H5 | 18 | 13 | 90 | 8.97 | 13.34 | 3.5 | 7 | 0.3 | 1.83 | 20.59 |
LM18-H6 | 18 | 13 | 90 | 11.53 | 17.15 | 3.5 | 9 | 0.3 | 1.83 | 16.01 |
LM18-H7 | 18 | 13 | 90 | 15.37 | 22.86 | 3.5 | 12 | 0.3 | 1.83 | 12.02 |
LM20-L1 | 20 | 15 | 35 | 2.72 | 6.32 | 3.5 | 3 | 0.2 | 1.8 | 9.72 |
LM20-L2 | 20 | 15 | 35 | 3.61 | 8.43 | 3.5 | 4 | 0.2 | 1.8 | 7.26 |
LM20-L3 | 20 | 15 | 35 | 4.52 | 10.54 | 3.5 | 5 | 0.2 | 1.8 | 5.81 |
LM20-L4 | 20 | 15 | 35 | 5.41 | 12.65 | 3.5 | 6 | 0.2 | 1.8 | 4.83 |
LM20-L5 | 20 | 15 | 35 | 6.32 | 14.76 | 3.5 | 7 | 0.2 | 1.8 | 4.15 |
LM20-L6 | 20 | 15 | 35 | 8.13 | 18.97 | 3.5 | 9 | 0.2 | 1.8 | 3.23 |
LM20-L7 | 20 | 15 | 35 | 10.82 | 25.3 | 3.5 | 12 | 0.2 | 1.8 | 2.42 |
LM20-M1 | 20 | 14 | 70 | 3.05 | 6.32 | 3.5 | 3 | 0.25 | 1.98 | 21.41 |
LM20-M2 | 20 | 14 | 70 | 4.06 | 8.43 | 3.5 | 4 | 0.25 | 1.98 | 16.02 |
LM20-M3 | 20 | 14 | 70 | 5.08 | 10.54 | 3.5 | 5 | 0.25 | 1.98 | 12.82 |
LM20-M4 | 20 | 14 | 70 | 6.27 | 12.65 | 3.5 | 6 | 0.25 | 1.98 | 10.97 |
LM20-M5 | 20 | 14 | 70 | 7.32 | 14.76 | 3.5 | 7 | 0.25 | 1.98 | 9.41 |
LM20-M6 | 20 | 14 | 70 | 9.17 | 18.97 | 3.5 | 9 | 0.25 | 1.98 | 7.14 |
LM20-M7 | 20 | 14 | 70 | 12.22 | 25.3 | 3.5 | 12 | 0.25 | 1.98 | 5.35 |
LM20-H1 | 20 | 14 | 100 | 4.24 | 6.32 | 3.5 | 3 | 0.33 | 2.01 | 48.08 |
LM20-H2 | 20 | 14 | 100 | 5.66 | 8.43 | 3.5 | 4 | 0.33 | 2.01 | 36.1 |
LM20-H3 | 20 | 14 | 100 | 7.06 | 10.54 | 3.5 | 5 | 0.33 | 2.01 | 28.74 |
LM20-H4 | 20 | 14 | 100 | 8.48 | 12.65 | 3.5 | 6 | 0.33 | 2.01 | 23.98 |
LM20-H5 | 20 | 14 | 100 | 9.91 | 14.76 | 3.5 | 7 | 0.33 | 2.01 | 20.62 |
LM20-H6 | 20 | 14 | 100 | 12.73 | 18.97 | 3.5 | 9 | 0.33 | 2.01 | 16.03 |
LM20-H7 | 20 | 14 | 100 | 16.97 | 25.3 | 3.5 | 12 | 0.33 | 2.01 | 12 |
LM25-L1 | 25 | 19 | 50 | 2.06 | 6.63 | 3.5 | 3 | 0.25 | 2.18 | 10.94 |
LM25-L2 | 25 | 19 | 50 | 2.74 | 8.84 | 3.5 | 4 | 0.25 | 2.18 | 8.2 |
LM25-L3 | 25 | 19 | 50 | 3.43 | 11.05 | 3.5 | 5 | 0.25 | 2.18 | 6.56 |
LM25-L4 | 25 | 19 | 50 | 4.11 | 13.26 | 3.5 | 6 | 0.25 | 2.18 | 5.46 |
LM25-L5 | 25 | 19 | 50 | 4.8 | 15.47 | 3.5 | 7 | 0.25 | 2.18 | 4.69 |
LM25-L6 | 25 | 19 | 50 | 6.2 | 19.89 | 3.5 | 9 | 0.25 | 2.18 | 3.65 |
LM25-L7 | 25 | 19 | 50 | 8.26 | 26.52 | 3.5 | 12 | 0.25 | 2.18 | 2.74 |
LM25-M1 | 25 | 19 | 80 | 2.95 | 6.63 | 3.5 | 3 | 0.3 | 2.39 | 21.74 |
LM25-M2 | 25 | 19 | 80 | 3.94 | 8.84 | 3.5 | 4 | 0.3 | 2.39 | 16.33 |
LM25-M3 | 25 | 19 | 80 | 4.9 | 11.05 | 3.5 | 5 | 0.3 | 2.39 | 13.01 |
LM25-M4 | 25 | 19 | 80 | 5.89 | 13.26 | 3.5 | 6 | 0.3 | 2.39 | 10.85 |
LM25-M5 | 25 | 19 | 80 | 6.88 | 15.47 | 3.5 | 7 | 0.3 | 2.39 | 9.31 |
LM25-M6 | 25 | 19 | 80 | 8.84 | 19.89 | 3.5 | 9 | 0.3 | 2.39 | 7.24 |
LM25-M7 | 25 | 19 | 80 | 11.79 | 26.52 | 3.5 | 12 | 0.3 | 2.39 | 5.43 |
LM25-H1 | 25 | 19 | 110 | 4.04 | 6.63 | 3.5 | 3 | 0.38 | 2.39 | 42.47 |
LM25-H2 | 25 | 19 | 110 | 5.38 | 8.84 | 3.5 | 4 | 0.38 | 2.39 | 31.79 |
LM25-H3 | 25 | 19 | 110 | 6.73 | 11.05 | 3.5 | 5 | 0.38 | 2.39 | 25.46 |
LM25-H4 | 25 | 19 | 110 | 8.08 | 13.26 | 3.5 | 6 | 0.38 | 2.39 | 21.24 |
LM25-H5 | 25 | 19 | 110 | 9.4 | 15.47 | 3.5 | 7 | 0.38 | 2.39 | 18.12 |
LM25-H6 | 25 | 19 | 110 | 12.12 | 19.89 | 3.5 | 9 | 0.38 | 2.39 | 14.16 |
LM25-H7 | 25 | 19 | 110 | 16.15 | 26.52 | 3.5 | 12 | 0.38 | 2.39 | 10.61 |
LM28-L1 | 28 | 22 | 50 | 3.76 | 7.24 | 3.5 | 3 | 0.3 | 2.39 | 14.37 |
LM28-L2 | 28 | 22 | 50 | 5 | 9.65 | 3.5 | 4 | 0.3 | 2.39 | 10.75 |
LM28-L3 | 28 | 22 | 50 | 6.27 | 12.07 | 3.5 | 5 | 0.3 | 2.39 | 8.62 |
LM28-L4 | 28 | 22 | 50 | 7.52 | 14.48 | 3.5 | 6 | 0.3 | 2.39 | 7.18 |
LM28-L5 | 28 | 22 | 50 | 8.79 | 16.89 | 3.5 | 7 | 0.3 | 2.39 | 6.17 |
LM28-L6 | 28 | 22 | 50 | 10.03 | 19.3 | 3.5 | 8 | 0.3 | 2.39 | 5.39 |
LM28-L7 | 28 | 22 | 50 | 11.28 | 21.72 | 3.5 | 9 | 0.3 | 2.39 | 4.79 |
LM28-L8 | 28 | 22 | 50 | 13.79 | 26.54 | 3.5 | 11 | 0.3 | 2.39 | 3.92 |
LM28-L9 | 28 | 22 | 50 | 16.31 | 31.37 | 3.5 | 13 | 0.3 | 2.39 | 3.32 |
LM28-M1 | 28 | 22 | 80 | 4.39 | 7.24 | 3.5 | 3 | 0.38 | 2.39 | 28.07 |
LM28-M2 | 28 | 22 | 80 | 5.84 | 9.65 | 3.5 | 4 | 0.38 | 2.39 | 21 |
LM28-M3 | 28 | 22 | 80 | 7.32 | 12.07 | 3.5 | 5 | 0.38 | 2.39 | 16.84 |
LM28-M4 | 28 | 22 | 80 | 8.79 | 14.48 | 3.5 | 6 | 0.38 | 2.39 | 14.06 |
LM28-M5 | 28 | 22 | 80 | 10.24 | 16.89 | 3.5 | 7 | 0.38 | 2.39 | 12.03 |
LM28-M6 | 28 | 22 | 80 | 11.71 | 19.3 | 3.5 | 8 | 0.38 | 2.39 | 10.54 |
LM28-M7 | 28 | 22 | 80 | 13.18 | 21.72 | 3.5 | 9 | 0.38 | 2.39 | 9.37 |
LM28-M8 | 28 | 22 | 80 | 16.1 | 26.54 | 3.5 | 11 | 0.38 | 2.39 | 7.66 |
LM28-M9 | 28 | 22 | 80 | 19.02 | 31.37 | 3.5 | 13 | 0.38 | 2.39 | 6.48 |
LM28-H1 | 28 | 22 | 130 | 4.57 | 7.24 | 3.5 | 3 | 0.46 | 2.39 | 48.69 |
LM28-H2 | 28 | 22 | 130 | 6.07 | 9.65 | 3.5 | 4 | 0.46 | 2.39 | 36.31 |
LM28-H3 | 28 | 22 | 130 | 7.59 | 12.07 | 3.5 | 5 | 0.46 | 2.39 | 29.02 |
LM28-H4 | 28 | 22 | 130 | 9.12 | 14.48 | 3.5 | 6 | 0.46 | 2.39 | 24.25 |
LM28-H5 | 28 | 22 | 130 | 10.64 | 16.89 | 3.5 | 7 | 0.46 | 2.39 | 20.8 |
LM28-H6 | 28 | 22 | 130 | 12.17 | 19.3 | 3.5 | 8 | 0.46 | 2.39 | 18.23 |
LM28-H7 | 28 | 22 | 130 | 13.69 | 21.72 | 3.5 | 9 | 0.46 | 2.39 | 16.19 |
LM28-H8 | 28 | 22 | 130 | 16.71 | 26.54 | 3.5 | 11 | 0.46 | 2.39 | 13.22 |
LM28-H9 | 28 | 22 | 130 | 19.76 | 31.37 | 3.5 | 13 | 0.46 | 2.39 | 11.2 |
LM30-L1 | 30 | 24 | 50 | 3.18 | 7.62 | 3.5 | 3 | 0.3 | 2.39 | 11.26 |
LM30-L2 | 30 | 24 | 50 | 4.22 | 10.16 | 3.5 | 4 | 0.3 | 2.39 | 8.42 |
LM30-L3 | 30 | 24 | 50 | 5.28 | 12.7 | 3.5 | 5 | 0.3 | 2.39 | 6.74 |
LM30-L4 | 30 | 24 | 50 | 6.32 | 15.24 | 3.5 | 6 | 0.3 | 2.39 | 5.61 |
LM30-L5 | 30 | 24 | 50 | 7.39 | 17.78 | 3.5 | 7 | 0.3 | 2.39 | 4.81 |
LM30-L6 | 30 | 24 | 50 | 8.43 | 20.32 | 3.5 | 8 | 0.3 | 2.39 | 4.21 |
LM30-L7 | 30 | 24 | 50 | 9.5 | 22.86 | 3.5 | 9 | 0.3 | 2.39 | 3.74 |
LM30-L8 | 30 | 24 | 50 | 11.61 | 27.94 | 3.5 | 11 | 0.3 | 2.39 | 3.06 |
LM30-L9 | 30 | 24 | 50 | 13.72 | 33.02 | 3.5 | 13 | 0.3 | 2.39 | 2.59 |
LM30-M1 | 30 | 24 | 90 | 3.51 | 7.62 | 3.5 | 3 | 0.38 | 2.39 | 21.9 |
LM30-M2 | 30 | 24 | 90 | 4.7 | 10.16 | 3.5 | 4 | 0.38 | 2.39 | 16.48 |
LM30-M3 | 30 | 24 | 90 | 5.87 | 12.7 | 3.5 | 5 | 0.38 | 2.39 | 13.18 |
LM30-M4 | 30 | 24 | 90 | 7.04 | 15.24 | 3.5 | 6 | 0.38 | 2.39 | 10.98 |
LM30-M5 | 30 | 24 | 90 | 8.2 | 17.78 | 3.5 | 7 | 0.38 | 2.39 | 9.39 |
LM30-M6 | 30 | 24 | 90 | 9.37 | 20.32 | 3.5 | 8 | 0.38 | 2.39 | 8.22 |
LM30-M7 | 30 | 24 | 90 | 10.54 | 22.86 | 3.5 | 9 | 0.38 | 2.39 | 7.31 |
LM30-M8 | 30 | 24 | 90 | 12.9 | 27.94 | 3.5 | 11 | 0.38 | 2.39 | 5.98 |
LM30-M9 | 30 | 24 | 90 | 15.24 | 33.02 | 3.5 | 13 | 0.38 | 2.39 | 5.06 |
LM30-H1 | 30 | 24 | 130 | 4.19 | 7.62 | 3.5 | 3 | 0.46 | 2.39 | 37.9 |
LM30-H2 | 30 | 24 | 130 | 5.59 | 10.16 | 3.5 | 4 | 0.46 | 2.39 | 28.45 |
LM30-H3 | 30 | 24 | 130 | 6.99 | 12.7 | 3.5 | 5 | 0.46 | 2.39 | 22.77 |
LM30-H4 | 30 | 24 | 130 | 8.38 | 15.24 | 3.5 | 6 | 0.46 | 2.39 | 18.95 |
LM30-H5 | 30 | 24 | 130 | 9.78 | 17.78 | 3.5 | 7 | 0.46 | 2.39 | 16.25 |
LM30-H6 | 30 | 24 | 130 | 11.18 | 20.32 | 3.5 | 8 | 0.46 | 2.39 | 14.22 |
LM30-H7 | 30 | 24 | 130 | 12.57 | 22.86 | 3.5 | 9 | 0.46 | 2.39 | 12.63 |
LM30-H8 | 30 | 24 | 130 | 15.37 | 27.94 | 3.5 | 11 | 0.46 | 2.39 | 10.34 |
LM30-H9 | 30 | 24 | 130 | 18.16 | 33.02 | 3.5 | 13 | 0.46 | 2.39 | 8.75 |
LM35-L1 | 35 | 27 | 70 | 3.94 | 8.38 | 3.5 | 3 | 0.36 | 3.18 | 15.77 |
LM35-L2 | 35 | 27 | 70 | 5.23 | 11.18 | 3.5 | 4 | 0.36 | 3.18 | 11.76 |
LM35-L3 | 35 | 27 | 70 | 6.55 | 13.97 | 3.5 | 5 | 0.36 | 3.18 | 9.43 |
LM35-L4 | 35 | 27 | 70 | 7.87 | 16.76 | 3.5 | 6 | 0.36 | 3.18 | 7.87 |
LM35-L5 | 35 | 27 | 70 | 9.17 | 19.56 | 3.5 | 7 | 0.36 | 3.18 | 6.74 |
LM35-L6 | 35 | 27 | 70 | 10.49 | 22.35 | 3.5 | 8 | 0.36 | 3.18 | 5.9 |
LM35-L7 | 35 | 27 | 70 | 11.81 | 25.15 | 3.5 | 9 | 0.36 | 3.18 | 5.25 |
LM35-L8 | 35 | 27 | 70 | 14.43 | 30.73 | 3.5 | 11 | 0.36 | 3.18 | 4.29 |
LM35-L9 | 35 | 27 | 70 | 17.04 | 36.32 | 3.5 | 13 | 0.36 | 3.18 | 3.63 |
LM35-M1 | 35 | 27 | 110 | 4.14 | 8.38 | 3.5 | 3 | 0.41 | 3.38 | 25.94 |
LM35-M2 | 35 | 27 | 110 | 5.51 | 11.18 | 3.5 | 4 | 0.41 | 3.38 | 19.4 |
LM35-M3 | 35 | 27 | 110 | 6.88 | 13.97 | 3.5 | 5 | 0.41 | 3.38 | 15.51 |
LM35-M4 | 35 | 27 | 110 | 8.26 | 16.76 | 3.5 | 6 | 0.41 | 3.38 | 12.94 |
LM35-M5 | 35 | 27 | 110 | 9.63 | 19.56 | 3.5 | 7 | 0.41 | 3.38 | 11.08 |
LM35-M6 | 35 | 27 | 110 | 11.02 | 22.35 | 3.5 | 8 | 0.41 | 3.38 | 9.71 |
LM35-M7 | 35 | 27 | 110 | 12.4 | 25.15 | 3.5 | 9 | 0.41 | 3.38 | 8.63 |
LM35-M8 | 35 | 27 | 110 | 15.14 | 30.73 | 3.5 | 11 | 0.41 | 3.38 | 7.06 |
LM35-M9 | 35 | 27 | 110 | 17.91 | 36.32 | 3.5 | 13 | 0.41 | 3.38 | 5.98 |
LM35-H1 | 35 | 27 | 160 | 4.04 | 8.38 | 3.5 | 3 | 0.46 | 3.38 | 36.87 |
LM35-H2 | 35 | 27 | 160 | 5.38 | 11.18 | 3.5 | 4 | 0.46 | 3.38 | 27.59 |
LM35-H3 | 35 | 27 | 160 | 6.73 | 13.97 | 3.5 | 5 | 0.46 | 3.38 | 22.1 |
LM35-H4 | 35 | 27 | 160 | 8.08 | 16.76 | 3.5 | 6 | 0.46 | 3.38 | 18.43 |
LM35-H5 | 35 | 27 | 160 | 9.42 | 19.56 | 3.5 | 7 | 0.46 | 3.38 | 15.78 |
LM35-H6 | 35 | 27 | 160 | 10.77 | 22.35 | 3.5 | 8 | 0.46 | 3.38 | 13.82 |
LM35-H7 | 35 | 27 | 160 | 12.12 | 25.15 | 3.5 | 9 | 0.46 | 3.38 | 12.28 |
LM35-H8 | 35 | 27 | 160 | 14.81 | 30.73 | 3.5 | 11 | 0.46 | 3.38 | 10.05 |
LM35-H9 | 35 | 27 | 160 | 17.5 | 36.32 | 3.5 | 13 | 0.46 | 3.38 | 8.5 |
LM40-L1 | 40 | 30 | 100 | 2.9 | 9.14 | 3.5 | 3 | 0.41 | 3.38 | 16.03 |
LM40-L2 | 40 | 30 | 100 | 3.86 | 12.19 | 3.5 | 4 | 0.41 | 3.38 | 12 |
LM40-L3 | 40 | 30 | 100 | 4.8 | 15.24 | 3.5 | 5 | 0.41 | 3.38 | 9.58 |
LM40-L4 | 40 | 30 | 100 | 5.77 | 18.29 | 3.5 | 6 | 0.41 | 3.38 | 7.99 |
LM40-L5 | 40 | 30 | 100 | 6.73 | 21.34 | 3.5 | 7 | 0.41 | 3.38 | 6.84 |
LM40-L6 | 40 | 30 | 100 | 7.7 | 24.38 | 3.5 | 8 | 0.41 | 3.38 | 6 |
LM40-L7 | 40 | 30 | 100 | 8.66 | 27.43 | 3.5 | 9 | 0.41 | 3.38 | 5.33 |
LM40-L8 | 40 | 30 | 100 | 10.59 | 33.53 | 3.5 | 11 | 0.41 | 3.38 | 4.36 |
LM40-L9 | 40 | 30 | 100 | 12.52 | 39.62 | 3.5 | 13 | 0.41 | 3.38 | 3.69 |
LM40-M1 | 40 | 30 | 150 | 5.44 | 9.14 | 3.5 | 3 | 0.53 | 3.63 | 40.54 |
LM40-M2 | 40 | 30 | 150 | 7.24 | 12.19 | 3.5 | 4 | 0.53 | 3.63 | 30.3 |
LM40-M3 | 40 | 30 | 150 | 9.04 | 15.24 | 3.5 | 5 | 0.53 | 3.63 | 24.19 |
LM40-M4 | 40 | 30 | 150 | 10.85 | 18.29 | 3.5 | 6 | 0.53 | 3.63 | 20.16 |
LM40-M5 | 40 | 30 | 150 | 12.65 | 21.34 | 3.5 | 7 | 0.53 | 3.63 | 17.26 |
LM40-M6 | 40 | 30 | 150 | 14.48 | 24.38 | 3.5 | 8 | 0.53 | 3.63 | 15.15 |
LM40-M7 | 40 | 30 | 150 | 16.28 | 27.43 | 3.5 | 9 | 0.53 | 3.63 | 13.45 |
LM40-M8 | 40 | 30 | 150 | 19.89 | 33.53 | 3.5 | 11 | 0.53 | 3.63 | 11 |
LM40-M9 | 40 | 30 | 150 | 23.5 | 39.62 | 3.5 | 13 | 0.53 | 3.63 | 9.31 |
LM40-H1 | 40 | 30 | 300 | 5.66 | 9.14 | 4.5 | 3 | 0.46 | 3.38 | 86.21 |
LM40-H2 | 40 | 30 | 300 | 7.54 | 12.19 | 4.5 | 4 | 0.46 | 3.38 | 64.52 |
LM40-H3 | 40 | 30 | 300 | 9.42 | 15.24 | 4.5 | 5 | 0.46 | 3.38 | 51.55 |
LM40-H4 | 40 | 30 | 300 | 11.33 | 18.29 | 4.5 | 6 | 0.46 | 3.38 | 43.1 |
LM40-H5 | 40 | 30 | 300 | 13.21 | 21.34 | 4.5 | 7 | 0.46 | 3.38 | 36.9 |
LM40-H6 | 40 | 30 | 300 | 15.09 | 24.38 | 4.5 | 8 | 0.46 | 3.38 | 32.29 |
LM40-H7 | 40 | 30 | 300 | 16.97 | 27.43 | 4.5 | 9 | 0.46 | 3.38 | 28.68 |
LM40-H8 | 40 | 30 | 300 | 20.75 | 33.53 | 4.5 | 11 | 0.46 | 3.38 | 23.47 |
LM40-H9 | 40 | 30 | 300 | 24.54 | 39.62 | 4.5 | 13 | 0.46 | 3.38 | 19.89 |
LM45-L1 | 45 | 35 | 110 | 3.38 | 9.91 | 3.5 | 3 | 0.46 | 3.63 | 16.85 |
LM45-L2 | 45 | 35 | 110 | 4.52 | 13.21 | 3.5 | 4 | 0.46 | 3.63 | 12.66 |
LM45-L3 | 45 | 35 | 110 | 5.64 | 16.51 | 3.5 | 5 | 0.46 | 3.63 | 10.12 |
LM45-L4 | 45 | 35 | 110 | 6.76 | 19.81 | 3.5 | 6 | 0.46 | 3.63 | 8.43 |
LM45-L5 | 45 | 35 | 110 | 7.9 | 23.11 | 3.5 | 7 | 0.46 | 3.63 | 7.23 |
LM45-L6 | 45 | 35 | 110 | 9.02 | 26.42 | 3.5 | 8 | 0.46 | 3.63 | 6.32 |
LM45-L7 | 45 | 35 | 110 | 10.16 | 29.72 | 3.5 | 9 | 0.46 | 3.63 | 5.62 |
LM45-L8 | 45 | 35 | 110 | 12.4 | 36.32 | 3.5 | 11 | 0.46 | 3.63 | 4.6 |
LM45-L9 | 45 | 35 | 110 | 14.66 | 42.93 | 3.5 | 13 | 0.46 | 3.63 | 3.89 |
LM45-M1 | 45 | 35 | 225 | 5.33 | 9.91 | 4.5 | 3 | 0.46 | 3.63 | 49.13 |
LM45-M2 | 45 | 35 | 225 | 6.99 | 13.21 | 4.5 | 4 | 0.46 | 3.63 | 36.17 |
LM45-M3 | 45 | 35 | 225 | 9.14 | 16.51 | 4.5 | 5 | 0.46 | 3.63 | 30.53 |
LM45-M4 | 45 | 35 | 225 | 10.8 | 19.81 | 4.5 | 6 | 0.46 | 3.63 | 24.97 |
LM45-M5 | 45 | 35 | 225 | 12.7 | 23.11 | 4.5 | 7 | 0.46 | 3.63 | 21.61 |
LM45-M6 | 45 | 35 | 225 | 14.48 | 26.42 | 4.5 | 8 | 0.46 | 3.63 | 18.84 |
LM45-M7 | 45 | 35 | 225 | 16.26 | 29.72 | 4.5 | 9 | 0.46 | 3.63 | 16.72 |
LM45-M8 | 45 | 35 | 225 | 19.81 | 36.32 | 4.5 | 11 | 0.46 | 3.63 | 13.63 |
LM45-M9 | 45 | 35 | 225 | 23.37 | 42.93 | 4.5 | 13 | 0.46 | 3.63 | 11.5 |
LM45-H1 | 45 | 35 | 400 | 6.43 | 9.91 | 4.5 | 3 | 0.61 | 3.76 | 114.94 |
LM45-H2 | 45 | 35 | 400 | 8.38 | 13.21 | 4.5 | 4 | 0.61 | 3.76 | 82.82 |
LM45-H3 | 45 | 35 | 400 | 11.2 | 16.51 | 4.5 | 5 | 0.61 | 3.76 | 75.33 |
LM45-H4 | 45 | 35 | 400 | 12.95 | 19.81 | 4.5 | 6 | 0.61 | 3.76 | 58.31 |
LM45-H5 | 45 | 35 | 400 | 15.37 | 23.11 | 4.5 | 7 | 0.61 | 3.76 | 51.68 |
LM45-H6 | 45 | 35 | 400 | 17.27 | 26.42 | 4.5 | 8 | 0.61 | 3.76 | 43.72 |
LM45-H7 | 45 | 35 | 400 | 19.68 | 29.72 | 4.5 | 9 | 0.61 | 3.76 | 39.88 |
LM45-H8 | 45 | 35 | 400 | 24.26 | 36.32 | 4.5 | 11 | 0.61 | 3.76 | 33.17 |
LM45-H9 | 45 | 35 | 400 | 28.45 | 42.93 | 4.5 | 13 | 0.61 | 3.76 | 27.62 |
LM50-L1 | 50 | 40 | 110 | 4.83 | 10.29 | 3.5 | 3 | 0.53 | 3.63 | 20.15 |
LM50-L2 | 50 | 40 | 110 | 6.1 | 13.72 | 3.5 | 4 | 0.53 | 3.63 | 14.44 |
LM50-L3 | 50 | 40 | 110 | 7.87 | 17.15 | 3.5 | 5 | 0.53 | 3.63 | 11.85 |
LM50-L4 | 50 | 40 | 110 | 9.4 | 20.57 | 3.5 | 6 | 0.53 | 3.63 | 9.85 |
LM50-L5 | 50 | 40 | 110 | 11.3 | 24 | 3.5 | 7 | 0.53 | 3.63 | 8.66 |
LM50-L6 | 50 | 40 | 110 | 12.7 | 27.43 | 3.5 | 8 | 0.53 | 3.63 | 7.47 |
LM50-L7 | 50 | 40 | 110 | 14.99 | 30.86 | 3.5 | 9 | 0.53 | 3.63 | 6.93 |
LM50-L8 | 50 | 40 | 110 | 18.16 | 37.72 | 3.5 | 11 | 0.53 | 3.63 | 5.62 |
LM50-L9 | 50 | 40 | 110 | 21.34 | 44.58 | 3.5 | 13 | 0.53 | 3.63 | 4.73 |
LM50-L10 | 50 | 40 | 110 | 24.64 | 51.44 | 3.5 | 15 | 0.53 | 3.63 | 4.1 |
LM50-M1 | 50 | 40 | 225 | 4.62 | 10.29 | 4.5 | 3 | 0.46 | 3.63 | 39.68 |
LM50-M2 | 50 | 40 | 225 | 5.84 | 13.72 | 4.5 | 4 | 0.46 | 3.63 | 30.53 |
LM50-M3 | 50 | 40 | 225 | 7.49 | 17.15 | 4.5 | 5 | 0.46 | 3.63 | 23.29 |
LM50-M4 | 50 | 40 | 225 | 8.89 | 20.57 | 4.5 | 6 | 0.46 | 3.63 | 19.26 |
LM50-M5 | 50 | 40 | 225 | 10.54 | 24 | 4.5 | 7 | 0.46 | 3.63 | 16.72 |
LM50-M6 | 50 | 40 | 225 | 11.89 | 27.43 | 4.5 | 8 | 0.46 | 3.63 | 14.48 |
LM50-M7 | 50 | 40 | 225 | 13.59 | 30.86 | 4.5 | 9 | 0.46 | 3.63 | 13.03 |
LM50-M8 | 50 | 40 | 225 | 16.71 | 37.72 | 4.5 | 11 | 0.46 | 3.63 | 10.71 |
LM50-M9 | 50 | 40 | 225 | 19.61 | 44.58 | 4.5 | 13 | 0.46 | 3.63 | 9.01 |
LM50-M10 | 50 | 40 | 225 | 22.48 | 51.44 | 4.5 | 15 | 0.46 | 3.63 | 7.77 |
LM50-H1 | 50 | 40 | 400 | 5.92 | 10.29 | 4.5 | 3 | 0.61 | 3.76 | 91.53 |
LM50-H2 | 50 | 40 | 400 | 7.8 | 13.72 | 4.5 | 4 | 0.61 | 3.76 | 67.57 |
LM50-H3 | 50 | 40 | 400 | 10.16 | 17.15 | 4.5 | 5 | 0.61 | 3.76 | 57.22 |
LM50-H4 | 50 | 40 | 400 | 11.79 | 20.57 | 4.5 | 6 | 0.61 | 3.76 | 45.56 |
LM50-H5 | 50 | 40 | 400 | 14.15 | 24 | 4.5 | 7 | 0.61 | 3.76 | 40.61 |
LM50-H6 | 50 | 40 | 400 | 15.62 | 27.43 | 4.5 | 8 | 0.61 | 3.76 | 33.87 |
LM50-H7 | 50 | 40 | 400 | 17.91 | 30.86 | 4.5 | 9 | 0.61 | 3.76 | 30.89 |
LM50-H8 | 50 | 40 | 400 | 21.54 | 37.72 | 4.5 | 11 | 0.61 | 3.76 | 24.72 |
LM50-H9 | 50 | 40 | 400 | 25.65 | 44.58 | 4.5 | 13 | 0.61 | 3.76 | 21.13 |
LM50-H10 | 50 | 40 | 400 | 29.21 | 51.44 | 4.5 | 15 | 0.61 | 3.76 | 17.99 |
LM55-L1 | 55 | 45 | 125 | 5.59 | 11.05 | 3.5 | 3 | 0.61 | 3.76 | 22.89 |
LM55-L2 | 55 | 45 | 125 | 7.72 | 14.73 | 3.5 | 4 | 0.61 | 3.76 | 17.83 |
LM55-L3 | 55 | 45 | 125 | 9.68 | 18.41 | 3.5 | 5 | 0.61 | 3.76 | 14.3 |
LM55-L4 | 55 | 45 | 125 | 11.48 | 22.1 | 3.5 | 6 | 0.61 | 3.76 | 11.77 |
LM55-L5 | 55 | 45 | 125 | 13.92 | 25.78 | 3.5 | 7 | 0.61 | 3.76 | 10.54 |
LM55-L6 | 55 | 45 | 125 | 15.52 | 29.46 | 3.5 | 8 | 0.61 | 3.76 | 8.97 |
LM55-L7 | 55 | 45 | 125 | 18.41 | 33.15 | 3.5 | 9 | 0.61 | 3.76 | 8.49 |
LM55-L8 | 55 | 45 | 125 | 21.67 | 40.51 | 3.5 | 11 | 0.61 | 3.76 | 6.63 |
LM55-L9 | 55 | 45 | 125 | 25.65 | 47.88 | 3.5 | 13 | 0.61 | 3.76 | 5.62 |
LM55-L10 | 55 | 45 | 125 | 29.77 | 55.25 | 3.5 | 15 | 0.61 | 3.76 | 4.91 |
LM55-M1 | 55 | 45 | 250 | 3.1 | 11.05 | 4.5 | 3 | 0.46 | 3.63 | 31.45 |
LM55-M2 | 55 | 45 | 250 | 4.11 | 14.73 | 4.5 | 4 | 0.46 | 3.63 | 23.54 |
LM55-M3 | 55 | 45 | 250 | 5.16 | 18.41 | 4.5 | 5 | 0.46 | 3.63 | 18.85 |
LM55-M4 | 55 | 45 | 250 | 6.2 | 22.1 | 4.5 | 6 | 0.46 | 3.63 | 15.72 |
LM55-M5 | 55 | 45 | 250 | 7.21 | 25.78 | 4.5 | 7 | 0.46 | 3.63 | 13.46 |
LM55-M6 | 55 | 45 | 250 | 8.26 | 29.46 | 4.5 | 8 | 0.46 | 3.63 | 11.79 |
LM55-M7 | 55 | 45 | 250 | 9.27 | 33.15 | 4.5 | 9 | 0.46 | 3.63 | 10.47 |
LM55-M8 | 55 | 45 | 250 | 11.33 | 40.51 | 4.5 | 11 | 0.46 | 3.63 | 8.57 |
LM55-M9 | 55 | 45 | 250 | 13.41 | 47.88 | 4.5 | 13 | 0.46 | 3.63 | 7.25 |
LM55-M10 | 55 | 45 | 250 | 15.47 | 55.25 | 4.5 | 15 | 0.46 | 3.63 | 6.28 |
LM55-H1 | 55 | 45 | 400 | 5.31 | 11.05 | 4.5 | 3 | 0.61 | 3.76 | 69.69 |
LM55-H2 | 55 | 45 | 400 | 7.24 | 14.73 | 4.5 | 4 | 0.61 | 3.76 | 53.4 |
LM55-H3 | 55 | 45 | 400 | 9.09 | 18.41 | 4.5 | 5 | 0.61 | 3.76 | 42.87 |
LM55-H4 | 55 | 45 | 400 | 10.64 | 22.1 | 4.5 | 6 | 0.61 | 3.76 | 34.9 |
LM55-H5 | 55 | 45 | 400 | 12.24 | 25.78 | 4.5 | 7 | 0.61 | 3.76 | 29.54 |
LM55-H6 | 55 | 45 | 400 | 14.1 | 29.46 | 4.5 | 8 | 0.61 | 3.76 | 26.04 |
LM55-H7 | 55 | 45 | 400 | 15.82 | 33.15 | 4.5 | 9 | 0.61 | 3.76 | 23.08 |
LM55-H8 | 55 | 45 | 400 | 19.3 | 40.51 | 4.5 | 11 | 0.61 | 3.76 | 18.86 |
LM55-H9 | 55 | 45 | 400 | 23.11 | 47.88 | 4.5 | 13 | 0.61 | 3.76 | 16.15 |
LM55-H10 | 55 | 45 | 400 | 26.54 | 55.25 | 4.5 | 15 | 0.61 | 3.76 | 13.93 |
LM60-L1 | 60 | 50 | 135 | 5.59 | 11.43 | 4.5 | 3 | 0.46 | 3.63 | 23.12 |
LM60-L2 | 60 | 50 | 135 | 7.47 | 15.24 | 4.5 | 4 | 0.46 | 3.63 | 17.37 |
LM60-L3 | 60 | 50 | 135 | 9.32 | 19.05 | 4.5 | 5 | 0.46 | 3.63 | 13.87 |
LM60-L4 | 60 | 50 | 135 | 11.2 | 22.86 | 4.5 | 6 | 0.46 | 3.63 | 11.58 |
LM60-L5 | 60 | 50 | 135 | 13.06 | 26.67 | 4.5 | 7 | 0.46 | 3.63 | 9.92 |
LM60-L6 | 60 | 50 | 135 | 14.94 | 30.48 | 4.5 | 8 | 0.46 | 3.63 | 8.69 |
LM60-L7 | 60 | 50 | 135 | 16.79 | 34.29 | 4.5 | 9 | 0.46 | 3.63 | 7.71 |
LM60-L8 | 60 | 50 | 135 | 20.52 | 41.91 | 4.5 | 11 | 0.46 | 3.63 | 6.31 |
LM60-L9 | 60 | 50 | 135 | 24.26 | 49.53 | 4.5 | 13 | 0.46 | 3.63 | 5.34 |
LM60-L10 | 60 | 50 | 135 | 27.99 | 57.15 | 4.5 | 15 | 0.46 | 3.63 | 4.63 |
LM60-M1 | 60 | 50 | 275 | 6.65 | 11.43 | 4.5 | 3 | 0.61 | 3.76 | 57.53 |
LM60-M2 | 60 | 50 | 275 | 8.86 | 15.24 | 4.5 | 4 | 0.61 | 3.76 | 43.1 |
LM60-M3 | 60 | 50 | 275 | 11.07 | 19.05 | 4.5 | 5 | 0.61 | 3.76 | 34.46 |
LM60-M4 | 60 | 50 | 275 | 13.28 | 22.86 | 4.5 | 6 | 0.61 | 3.76 | 28.71 |
LM60-M5 | 60 | 50 | 275 | 15.49 | 26.67 | 4.5 | 7 | 0.61 | 3.76 | 24.6 |
LM60-M6 | 60 | 50 | 275 | 17.7 | 30.48 | 4.5 | 8 | 0.61 | 3.76 | 21.52 |
LM60-M7 | 60 | 50 | 275 | 19.94 | 34.29 | 4.5 | 9 | 0.61 | 3.76 | 19.16 |
LM60-M8 | 60 | 50 | 275 | 24.36 | 41.91 | 4.5 | 11 | 0.61 | 3.76 | 15.67 |
LM60-M9 | 60 | 50 | 275 | 28.78 | 49.53 | 4.5 | 13 | 0.61 | 3.76 | 13.25 |
LM60-M10 | 60 | 50 | 275 | 33.22 | 57.15 | 4.5 | 15 | 0.61 | 3.76 | 11.49 |
LM60-H1 | 60 | 50 | 450 | 7.75 | 11.43 | 4.5 | 3 | 0.76 | 4.01 | 122.28 |
LM60-H2 | 60 | 50 | 450 | 10.31 | 15.24 | 4.5 | 4 | 0.76 | 4.01 | 91.28 |
LM60-H3 | 60 | 50 | 450 | 12.9 | 19.05 | 4.5 | 5 | 0.76 | 4.01 | 73.17 |
LM60-H4 | 60 | 50 | 450 | 15.47 | 22.86 | 4.5 | 6 | 0.76 | 4.01 | 60.89 |
LM60-H5 | 60 | 50 | 450 | 18.06 | 26.67 | 4.5 | 7 | 0.76 | 4.01 | 52.26 |
LM60-H6 | 60 | 50 | 450 | 20.62 | 30.48 | 4.5 | 8 | 0.76 | 4.01 | 45.64 |
LM60-H7 | 60 | 50 | 450 | 23.22 | 34.29 | 4.5 | 9 | 0.76 | 4.01 | 40.65 |
LM60-H8 | 60 | 50 | 450 | 28.37 | 41.91 | 4.5 | 11 | 0.76 | 4.01 | 33.23 |
LM60-H9 | 60 | 50 | 450 | 33.53 | 49.53 | 4.5 | 13 | 0.76 | 4.01 | 28.13 |
LM60-H10 | 60 | 50 | 450 | 38.68 | 57.15 | 4.5 | 15 | 0.76 | 4.01 | 24.36 |
Contact Person: Mrs. Janet
Tel: 0086-18957716162
Fax: 86-577-62606162
C Series Multi Turn Wave Springs - Inch Plain ends
Nested Wave Springs Multi Turn Wave Springs - Inch Plain ends
LS Series Wave Springs Inch Linear Springs
Custom Stainless Steel Linear Wave Springs for Toys , Size 5mm-1000mm
Square Wire Constant Section Retaining Rings With Radial Pinch Installation / Removal Provisions
Rectangle Section Wire Snap Rings For Automotive OEM / ODM Available
No Custom Tooling Charges Wire Snap Ring With ISO9001 TS16949 Certificate
