Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector

China Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector supplier
Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector supplier Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector supplier

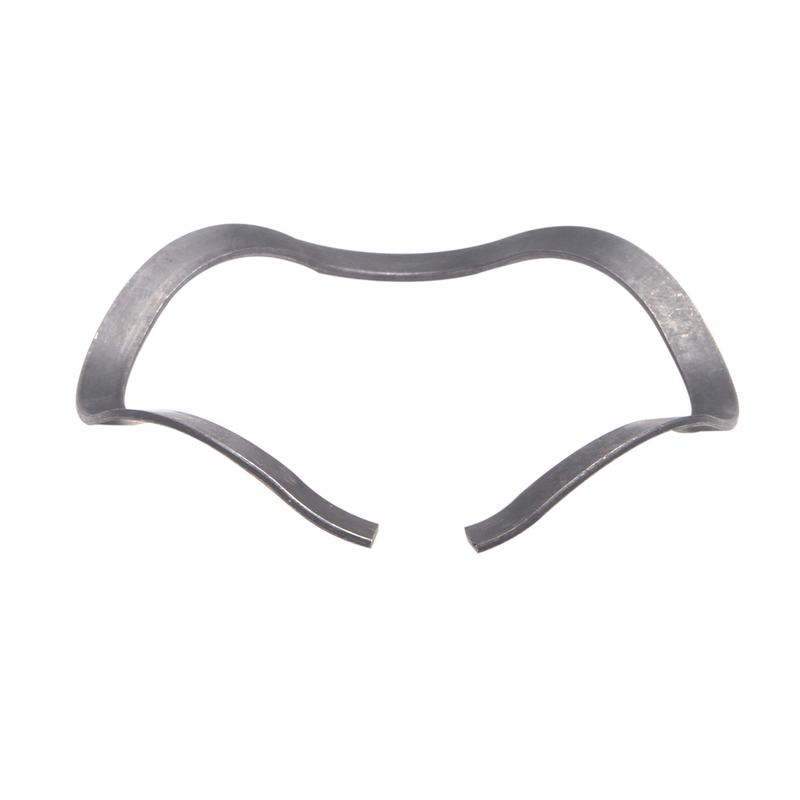

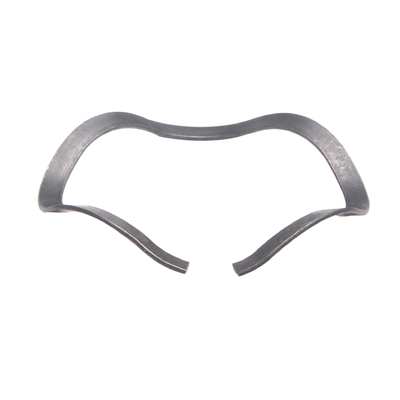

Large Image :  Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector

Product Details:

Place of Origin: CHINA
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: LB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Name: Flat Wire Gap Wave Springs Metric Wave Washer Size: 5mm-1000mm
Specification: RoHS, REACH Used For: Electrical Connector
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types

flat wire Gap wave springs metric wave washer suppliers for Electrical connector

Description:

Single-turn wave springs are used for several applications, mainly designed for short deflection and low to medium forces. Technology enables to provide a dependable and accurate fit.

The free ends of a wave spring with gap type are allowed for the spring outside diameter grows during compression, which if constrained in a bore prevents binding of comparable stamped wave washers, this design has dramatically improved the fatigue resistance and lifetimes. Thus reduces costs effectively.

Quick Detali:

Product Name:Single-turn wave springs
Material:Stainless steel,mald steel,zinc alloy,aluminium alloy,brass,bronze,copper,etc.
Color:Customied
Standard:Non-standard
Surface treatment:Zinc plating, chrome palting,nickel plating,painting,sand blasting,powder coating,polishing,anodized,baking finish,oxidation,electroplate,passivate


Materials Available

OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 - 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 ,
Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc

Processing Steps

Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing

Primary Competitive Advantage

  • We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings

  • We make the Product as your samples or your design fully

  • We have strong researching and developing team to solve Product problem

  • There are lot of raw material suppliers around our factory

  • We supply high quality Productfor many world famous companies

  • Our factory got ISO 9001 and TS16949 certificate

  • Small trial orders can be accepted, free sample is available

  • Our price is reasonable and keep top quality for every clients

Application:

Aviation, automotive, motorbike, bicycle, automatic equipment,
Household appliance, medical device, toy, telecommunication,
Computer, instrument and meter, furniture, electric tools,
Mold and other industries

Wave spring measurements

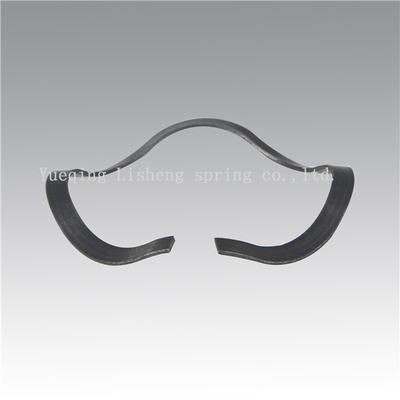

 Flat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector

 Flat Wire Gap Wave Springs Metric Wave Washer For Electrical ConnectorFlat Wire Gap Wave Springs Metric Wave Washer For Electrical Connector

 Specification:


Part Number Bearing O.D.(mm) Clears Shaft Diameter(mm) Load (N) Work Height
(mm)
Free Height
(mm)
Number
of Waves
Thickness
(mm)
Radial Wall(mm) Spring Rate(N/mm)
LB-0035 9 6.86 25.8 1 1.5 3 0.2 0.81 52
LB-0039 10 7.49 27.6 1 1.57 3 0.2 1.02 48
LB-0043 11 8.46 29.4 1 1.83 3 0.2 1.02 35
LB-0047 12 9.17 33.4 1 1.57 3 0.25 1.17 59
LB-0051 13 9.53 37.8 1 1.57 3 0.25 1.47 66
LB-0063 16 11.28 44.5 1.57 2.29 3 0.25 1.98 65
LB-0075 19 14.28 53.4 1.57 3.05 3 0.25 1.98 35
LB-0087 22 16.46 62.3 1.57 2.79 3 0.3 2.39 48
LB-0095 24 18.46 66.7 1.57 3.56 3 0.3 2.39 35
LB-0102 26 18.22 71.2 1.98 2.54 3 0.41 3.38 111
LB-0110 28 20.22 75.6 1.98 2.79 3 0.41 3.38 85
LB-0118 30 22.22 84.5 1.98 3.3 3 0.41 3.38 66
LB-0126 32 24.22 89 1.98 3.81 3 0.41 3.38 52
LB-0138 35 27.22 97.9 1.98 4.57 3 0.41 3.38 38
LB-0146 37 28.72 102.3 1.98 3.81 3 0.46 3.63 58
LB-0158 40 31.72 111.2 1.98 5.08 3 0.46 3.63 37
LB-0165 42 33.72 115.7 1.98 3.05 4 0.46 3.63 99
LB-0185 47 38.72 129 1.98 3.81 4 0.46 3.63 68
LB-0205 52 43.11 142.4 2.36 3.56 4 0.61 3.76 121
LB-0217 55 46.11 151.3 2.36 3.81 4 0.61 3.76 100
LB-0244 62 51.69 169.1 2.36 4.32 4 0.61 4.52 85
LB-0268 68 57.17 186.9 2.77 4.32 4 0.76 4.78 131
LB-0276 70 59.17 191.3 2.77 4.32 4 0.76 4.78 119
LB-0284 72 61.17 195.8 2.77 4.57 4 0.76 4.78 108
LB-0295 75 64.17 204.7 2.77 5.08 4 0.76 4.78 94
LB-0315 80 68.66 218 2.77 5.59 4 0.76 4.78 76
LB-0335 85 71.38 231.4 2.77 5.59 4 0.76 5.92 83
LB-0354 90 76.38 249.2 2.77 6.35 4 0.76 5.92 68
LB-0374 95 81.38 262.5 2.77 7.37 4 0.76 5.92 57
