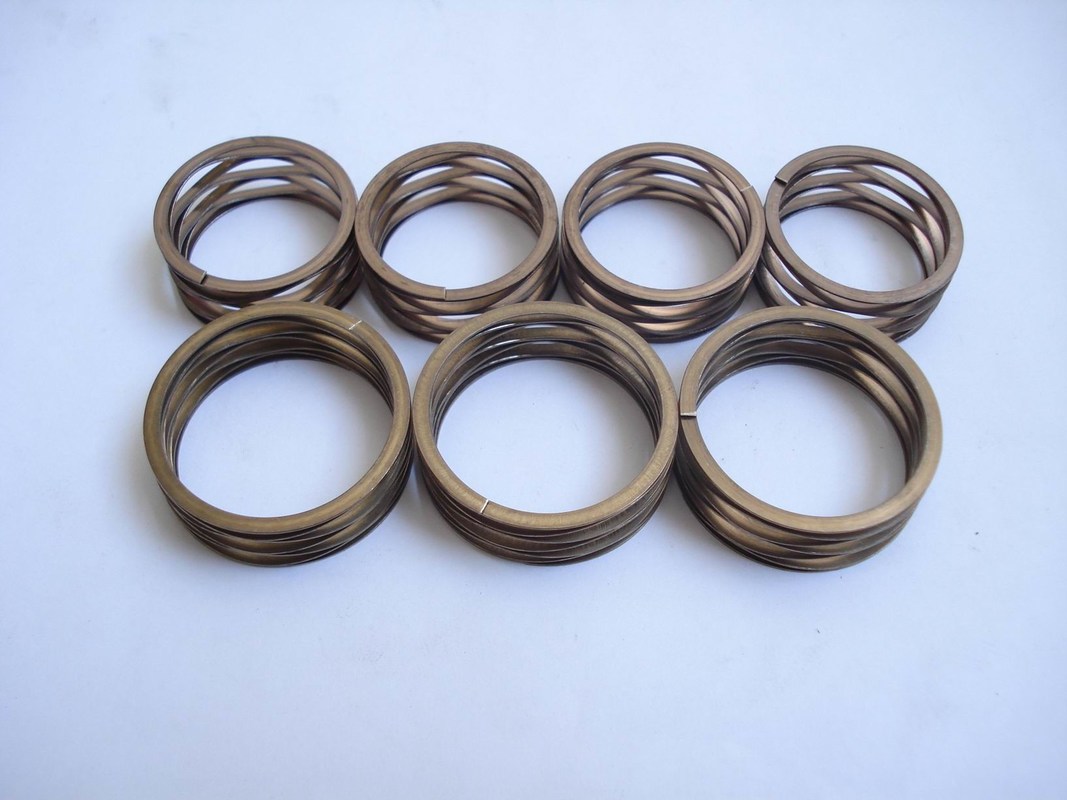

Name: Multilayered Wave Spring With Plain Ends Size: 5mm-1000mm
Specification: RoHS, REACH Tooling Charge: Free
Material: Stainless Steel Stock: More Than 2000Types
High Light:

wave disc spring

,

wavy washer spring

Multilayered wave spring with Plain Ends uk Flat wire compression spring processing stainless steel


 Description:

Wave springs help to save up to 50% of axial space in your application when compared to conventional coil springs. The result is more compact applications in which unnecessary space and therefore excess material of neighboring components can be reduced to a minimum. The flat wire effectively reduces the solid height of the wave spring so that with the same amount of turns one can visibly reduce the work height without compromising the load or spring deflection. Another advantage is that one can increase the number of turns of the spring design in order to decrease the deflection per turn when the wave spring is compressed. Thus, the spring rate is reduced proportionally to the number of turns and a flat linear characteristic can be generated.



Specification:

Part Number LM10-L6 LM10-L7 LM10-L8 LM10-L9 LM10-M1 LM10-M2 LM10-M3 LM10-M4 LM10-M5 LM10-M6 LM10-M7
Operates in Bore Diameter(mm) 10 10 10 10 10 10 10 10 10 10 10
Llears Shaft Diameter(mm) 7 7 7 7 7 7 7 7 7 7 7
Load (N) 18 18 18 18 35 35 35 35 35 35 35
Work Height(mm) 5.05 5.69 6.32 6.96 2.03 2.79 3.56 4.32 5.08 5.84 6.6
Free Height(mm) 10.57 11.89 13.21 14.53 3.96 5.28 6.6 7.92 9.25 10.57 11.89
Number of Waves 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Number of Turns 8 9 10 11 3 4 5 6 7 8 9
ThiLkness(mm) 0.2 0.2 0.2 0.2 0.28 0.28 0.28 0.28 0.28 0.28 0.28
Radial Wall(mm) 0.81 0.81 0.81 0.81 0.81 0.81 0.81 0.81 0.81 0.81 0.81
Spring Rate(N/mm) 3.26 2.9 2.61 2.38 18.13 14.06 11.51 9.72 8.39 7.4 6.62



Processing Steps:
Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing



Finish:

Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc
