Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time

China Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time supplier
Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time supplier Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time supplier

Large Image :  Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time

Product Details:

Place of Origin: CHINA
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: SSB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Name: Single Turn Wave Spring Washer Size: 5mm-1000mm
Tooling Charge: Free Used For: Bearing
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types



Carbon Steel / Stainless Steel Single Turn Wave Spring Washer 5mm-1000mm



Quick Detail:

1. Processing craft: Material purchased—Material testing—production—heat treatment

—surface treatment—final testing—package—shipping

2. Heat treatment: Tempering,Stress relieving

3. Finish: Plain,Shot peened and oiled,Paint spraying (various colours),

Galvanised,Chrome plated,Nickel plated,Phosphated

4. Quality Standard:ISO 9001:2008, TS 16949 and ISO 14001

Description

Gap and Overlap Type Wave Springs can be used in many application area. Especially for short trips and low-medium load of the occasion,they provide high reliability and accuracy.Nested wave springs feature is very large loads can be supported with a small installation space , its can be replaced Disc spring in many applications.

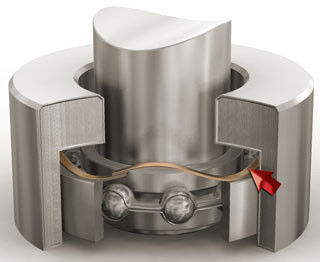

Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time



【Single turn/Nested Wave spring theoretical analysis】



Item
Material
t b O.D. W N FH WH K L Os I.D. O.D.s> Wc Lc
mm mm mm waves coils mm mm N/mm N N/m m2 mm mm cycles
AISI 1070~1090 0.24 1.7 22 3 2 3.75 2.33 28.5518 41 1100 18.6 23.08 Linear 30K~50K
AISI 1060~1075 0.24 1.7 22 3 1 3.75 2.33 14.2579 20 1100 18.6 23.26 Linear 30K~50K
AISI 631 0.24 1.7 22 3 1 3.75 2.33 13.5961 19 1048 18.6 23.26 Linear Under 30K
  Input parameters section Results section

t : Material thickness FH : free height Os : operating stress UW : unit weight
b : Material width WH : working height I.D : Inner diameter
O.D. : Outer diameter Es : End shims O.D.s : outer diameter at solid height
W : Number of waves(per turn) K : spring rate(stiffness) Wc : Working curve
N : Number of turns L : working load Lc : Life cycles prediction





Carbon Steel / Stainless Steel Single Turn Wave Spring Washer Long Life Time
