| Name: | Single Turn Wavy Washers | Size: | 5mm-1000mm |
|---|---|---|---|

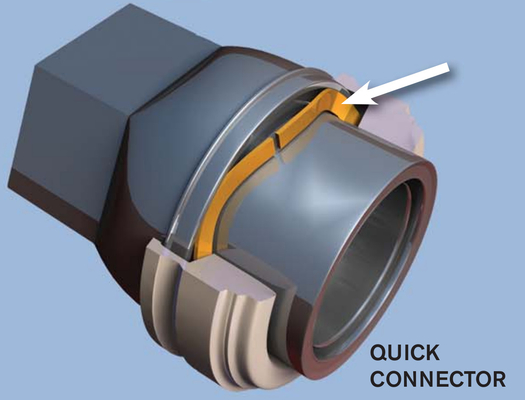

| Tooling Charge: | Free | Used For: | Quick Connector |
| Material: | Carbon Steel Or Stainless Steel | Stock: | More Than 2000 Types |
| High Light: | single wave washer,nested wave spring |
||

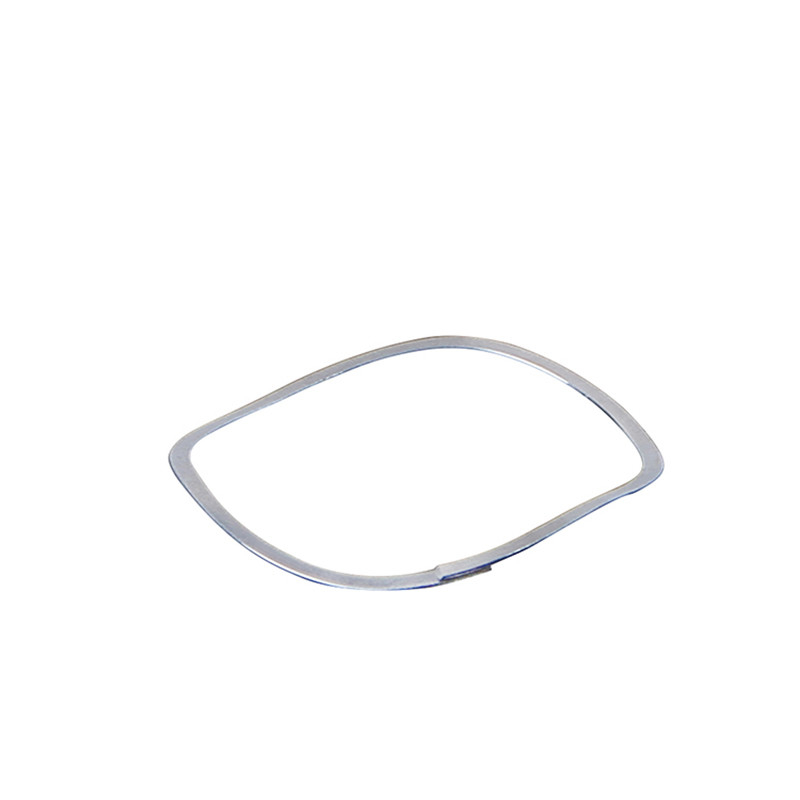

Stainless Steel Single Turn Wavy Washers 5mm-1000mm for quick connector
Quick Detail:
1. Processing craft: Material purchased—Material testing—production—heat treatment
—surface treatment—final testing—package—shipping
2. Heat treatment: Tempering,Stress relieving
3. Finish: Plain,Shot peened and oiled,Paint spraying (various colours),
Galvanised,Chrome plated,Nickel plated,Phosphated
4. Quality Standard:ISO 9001:2008, TS 16949 and ISO 14001
Gap and Overlap Type Wave Springs can be used in many application area. Especially for short trips and low-medium load of the occasion,they provide high reliability and accuracy.Nested wave springs feature is very large loads can be supported with a small installation space , its can be replaced Disc spring in many applications.
【Single turn/Nested Wave spring theoretical analysis】
| Item Material |
t | b | O.D. | W | N | FH | WH | K | L | Os | I.D. | O.D.s> | Wc | Lc |
| mm | mm | mm | waves | coils | mm | mm | N/mm | N | N/m m2 | mm | mm | cycles | ||
| AISI 1070~1090 | 0.24 | 1.7 | 22 | 3 | 2 | 3.75 | 2.33 | 28.5518 | 41 | 1100 | 18.6 | 23.08 | Linear | 30K~50K |
| AISI 1060~1075 | 0.24 | 1.7 | 22 | 3 | 1 | 3.75 | 2.33 | 14.2579 | 20 | 1100 | 18.6 | 23.26 | Linear | 30K~50K |
| AISI 631 | 0.24 | 1.7 | 22 | 3 | 1 | 3.75 | 2.33 | 13.5961 | 19 | 1048 | 18.6 | 23.26 | Linear | Under 30K |
| Input parameters section | Results section | |||||||||||||
| t : Material thickness | FH : free height | Os : operating stress | UW : unit weight |
| b : Material width | WH : working height | I.D : Inner diameter | |
| O.D. : Outer diameter | Es : End shims | O.D.s : outer diameter at solid height | |
| W : Number of waves(per turn) | K : spring rate(stiffness) | Wc : Working curve | |
| N : Number of turns | L : working load | Lc : Life cycles prediction |
