| Name: | Single Turn Wave Disc Springs Wavy Spring Washers | Length: | Non-standard As Request&design |
|---|---|---|---|
| Non-standards: | OEM Is Available If You Provide A Drawing Or Sample | Material: | 17-7ph Stainless Steel |
| Product Standards: | GB,DIN,BS,ISO,JIS,ANSI,UNC | Packing: | Inner--PE Bag; Outer--Carton Box |
| High Light: | Single Turn Wave Disc Springs,Overlap Wave Disc Springs,17-7ph Wavy Spring Washers |
||
single turn wave disc springs wavy spring washers 17-7ph suppliers

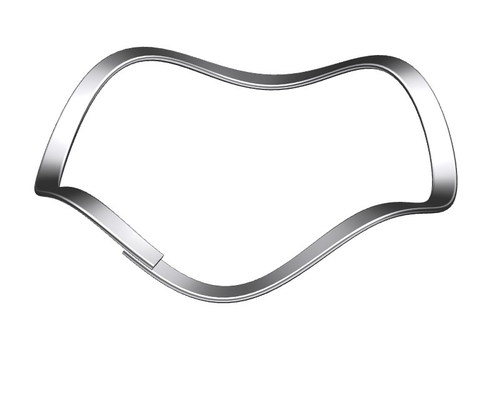

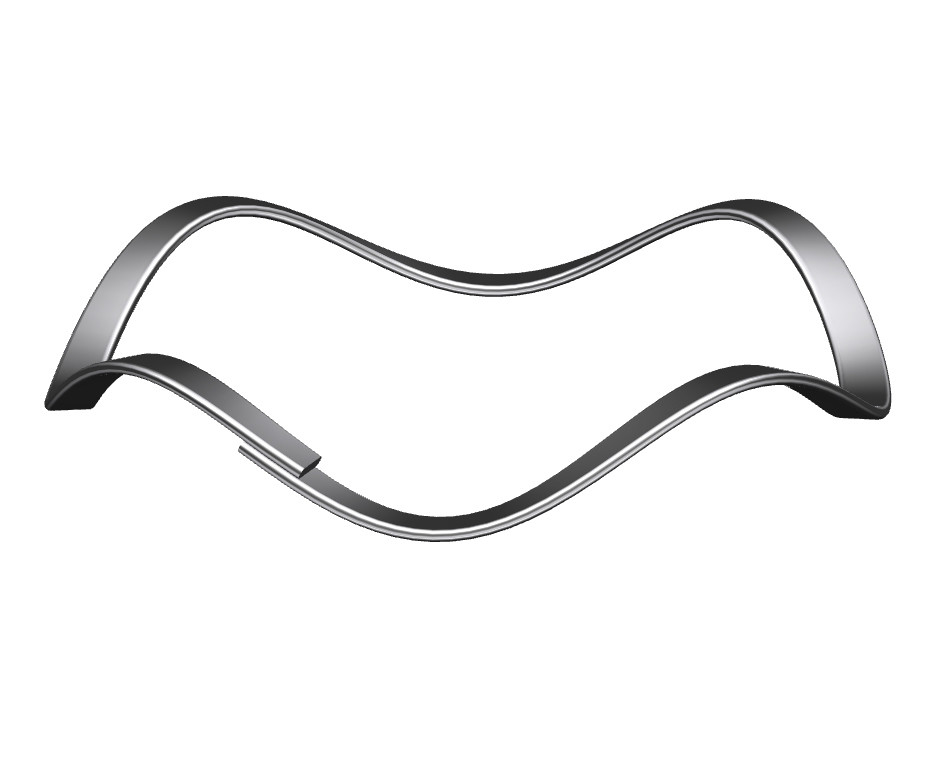

Single-turn wave springs are used for several applications, mainly designed for short deflection and low to medium forces. Technology enables to provide a dependable and accurate fit.
Specification:
| Part No. | Operates in Bore Diameter |
Lears Shaft Diameter |
Load | Work Height | Free Height | Waves | Thinkness | Radial Wall | Spring Rate | Open mode |
| mm | mm | (N) | mm | mm | mm | mm | N/MM | |||
| LB-0035 | 9 | 6.86 | 25.8 | 1 | 1.5 | 3 | 0.2 | 0.81 | 52 | overlap |
| LB-0039 | 10 | 7.49 | 27.6 | 1 | 1.57 | 3 | 0.2 | 1.02 | 48 | overlap |
| LB-0043 | 11 | 8.46 | 29.4 | 1 | 1.83 | 3 | 0.2 | 1.02 | 35 | overlap |
| LB-0047 | 12 | 9.17 | 33.4 | 1 | 1.57 | 3 | 0.25 | 1.17 | 59 | overlap |
| LR-0050 | 12.7 | 9.91 | 31.12 | 1.27 | 2.16 | 3 | 0.2 | 1.02 | 35 | overlap |
| LB-0051 | 13 | 9.53 | 37.8 | 1 | 1.57 | 3 | 0.25 | 1.47 | 66 | overlap |
| LR-0062 | 15.88 | 12.19 | 44.45 | 1.27 | 2.41 | 3 | 0.25 | 1.47 | 38.85 | overlap |
| JBT-016 | 16 | - | 60-100 | 1 | 1.9 | 3 | 0.3 | 1.83 | - | overlap |
| LB-0063 | 16 | 11.28 | 44.5 | 1.57 | 2.29 | 3 | 0.25 | 1.98 | 65 | overlap |
| JBT-019 | 19 | - | 70-110 | 1 | 2 | 3 | 0.33 | 2.01 | - | overlap |
| LB-0075 | 19 | 14.28 | 53.4 | 1.57 | 3.05 | 3 | 0.25 | 1.98 | 35 | overlap |
| LR-0075 | 19.05 | 12.7 | 62.23 | 1.57 | 4.06 | 3 | 0.25 | 1.98 | 25.03 | overlap |
| JBT-022 | 22 | - | 80-140 | 1.2 | 2.3 | 3 | 0.42 | 1.9 | - | overlap |
| LB-0087 | 22 | 16.46 | 62.3 | 1.57 | 2.79 | 3 | 0.3 | 2.39 | 48 | overlap |
| LR-0087 | 22.23 | 15.75 | 71.12 | 1.57 | 3.3 | 3 | 0.3 | 2.39 | 41.13 | overlap |
| LB-0095 | 24 | 18.46 | 66.7 | 1.57 | 3.56 | 3 | 0.3 | 2.39 | 35 | overlap |
| LR-0100 | 25.4 | 19.81 | 80.02 | 1.57 | 4.06 | 3 | 0.3 | 2.39 | 32.2 | overlap |
| JBT-026 | 26 | - | 100-160 | 1.2 | 2.8 | 3 | 0.46 | 2.39 | - | overlap |
| LB-0102 | 26 | 18.22 | 71.2 | 1.98 | 2.54 | 3 | 0.41 | 3.38 | 111 | overlap |
| JBT-028 | 28 | - | 105-175 | 1.2 | 2.4 | 3 | 0.46 | 2.39 | - | overlap |
| LB-0110 | 28 | 20.22 | 75.6 | 1.98 | 2.79 | 3 | 0.41 | 3.38 | 85 | overlap |
| LR-0112 | 28.58 | 21.34 | 88.91 | 1.98 | 3.3 | 3 | 0.41 | 3.38 | 67.38 | overlap |
| JBT-030 | 30 | - | 115-205 | 1.2 | 2.8 | 3 | 0.52 | 2.39 | - | overlap |
| LB-0118 | 30 | 22.22 | 84.5 | 1.98 | 3.3 | 3 | 0.41 | 3.38 | 66 | overlap |
| LR-0125 | 31.75 | 24.38 | 97.8 | 1.98 | 3.81 | 3 | 0.41 | 3.38 | 53.55 | overlap |
| JBT-032 | 32 | - | 135-225 | 1.2 | 3.4 | 3 | 0.55 | 2.41 | - | overlap |
| LB-0126 | 32 | 24.22 | 89 | 1.98 | 3.81 | 3 | 0.41 | 3.38 | 52 | overlap |
| LR-0137 | 34.93 | 27.69 | 106.69 | 1.98 | 4.83 | 3 | 0.41 | 3.38 | 37.45 | overlap |
| JBT-035 | 35 | - | 165-255 | 1.5 | 2.9 | 4 | 0.46 | 2.39 | - | overlap |
| LB-0138 | 35 | 27.22 | 97.9 | 1.98 | 4.57 | 3 | 0.41 | 3.38 | 38 | overlap |
| LB-0146 | 37 | 28.72 | 102.3 | 1.98 | 3.81 | 3 | 0.46 | 3.63 | 58 | overlap |
| LR-0150 | 38.1 | 29.72 | 115.58 | 1.98 | 4.32 | 3 | 0.46 | 3.63 | 49.53 | overlap |
| JBT-040 | 40 | - | 185-275 | 1.5 | 3.3 | 4 | 0.52 | 2.39 | - | overlap |
| LB-0158 | 40 | 31.72 | 111.2 | 1.98 | 5.08 | 3 | 0.46 | 3.63 | 37 | overlap |
| LR-0162 | 41.28 | 33.27 | 124.47 | 1.98 | 5.08 | 3 | 0.46 | 3.63 | 40.25 | overlap |
| JBT-042 | 42 | - | 205-295 | 1.5 | 2.7 | 4 | 0.53 | 3.63 | - | overlap |
| LB-0165 | 42 | 33.72 | 115.7 | 1.98 | 3.05 | 4 | 0.46 | 3.63 | 99 | overlap |
| LR-0175 | 44.45 | 36.58 | 133.36 | 1.98 | 3.56 | 4 | 0.46 | 3.63 | 84.7 | gap |
| JBT-047 | 47 | - | 225-315 | 1.5 | 3.4 | 4 | 0.59 | 3.23 | - | overlap |
| LB-0185 | 47 | 38.72 | 129 | 1.98 | 3.81 | 4 | 0.46 | 3.63 | 68 | overlap |
| LR-0187 | 47.63 | 39.62 | 142.25 | 1.98 | 3.81 | 4 | 0.46 | 3.63 | 77.7 | gap |
| LR-0200 | 50.8 | 42.67 | 151.14 | 2.36 | 3.56 | 4 | 0.61 | 3.81 | 126.53 | gap |
