Name: | Light Duty External Inch Spiral Retaining Rings | Size: | 5mm-1000mm |
---|---|---|---|
Tooling Charge: | Free | Used For: | Industry |
Material: | Carbon Steel Or Stainless Steel | Stock: | More Than 2000 Types |
Highlight: | internal retaining snap ring,spiral external retaining rings |

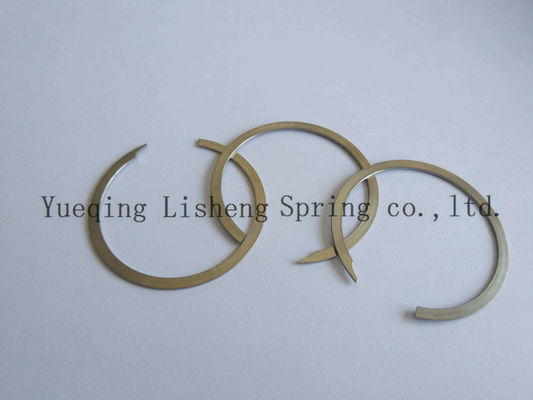

Cabon Steel Light Duty Spiral Retaining Ring VZM Series External Metric
Material
carbon steel(SWC),Alloy steel SEA9260/9254/6150/SUP9/SUP10/SUP12,51CrV4,stainless steel,Music wire/piano wire(SWP);beryllium copper etc.
Used:
Aviation, automotive, motorbike, bicycle, automatic equipment, household appliance, medical device ,toy, telecommunication, computer, instrument and meter, furniture, electric tools, mold and other industries
Notes
1. Please offer us your spring spec.,we can make spring based on your requirements.
2. Discount offered if with large order quantity.
Specifications:
The VZM Series Retaining Ring are specified for light duty, low clearance applications or where axial positioning rather than load carrying is the principal function. These retaining rings are economically produced and easy to use, and are ideal for applications where thrust loads are light duty.
Part Number | Shaft Diameter(mm) | Inside Diameter(mm) | Radial Wall(mm) | Thickness(mm) | Groove Diameter(mm) | Groove Width(mm) | Groove Yield(N) | Ring Shear (N) |
VZM-6 | 6 | 5.65 | 0.51 | 0.3 | 5.7 | 0.38 | 439 | 1988 |
VZM-7 | 7 | 6.58 | 0.51 | 0.3 | 6.64 | 0.38 | 614 | 2234 |
VZM-8 | 8 | 7.52 | 0.64 | 0.38 | 7.6 | 0.46 | 780 | 3183 |
VZM-9 | 9 | 8.42 | 0.76 | 0.38 | 8.5 | 0.46 | 1114 | 3580 |
VZM-10 | 10 | 9.32 | 0.89 | 0.38 | 9.4 | 0.46 | 1462 | 3978 |
VZM-11 | 11 | 10.32 | 0.89 | 0.38 | 10.4 | 0.46 | 1608 | 4376 |
VZM-12 | 12 | 11.22 | 1.14 | 0.46 | 11.34 | 0.56 | 1930 | 5779 |
VZM-13 | 13 | 12.15 | 1.14 | 0.46 | 12.28 | 0.56 | 2281 | 6261 |
VZM-14 | 14 | 13.15 | 1.14 | 0.46 | 13.28 | 0.56 | 2456 | 6742 |
VZM-15 | 15 | 14.14 | 1.14 | 0.46 | 14.28 | 0.56 | 2632 | 7224 |
VZM-16 | 16 | 15.13 | 1.14 | 0.46 | 15.28 | 0.56 | 2807 | 7705 |
VZM-17 | 17 | 16.13 | 1.14 | 0.46 | 16.28 | 0.56 | 2983 | 8187 |
VZM-18 | 18 | 17.12 | 1.14 | 0.46 | 17.28 | 0.56 | 3158 | 8669 |
VZM-19 | 19 | 18.11 | 1.14 | 0.46 | 18.28 | 0.56 | 3334 | 9150 |
VZM-20 | 20 | 19.1 | 1.14 | 0.46 | 19.28 | 0.56 | 3509 | 9632 |
VZM-21 | 21 | 19.74 | 1.65 | 0.53 | 19.94 | 0.66 | 5424 | 11652 |
VZM-22 | 22 | 20.73 | 1.65 | 0.53 | 20.94 | 0.66 | 5683 | 12207 |
VZM-24 | 24 | 22.72 | 1.65 | 0.53 | 22.94 | 0.66 | 6199 | 13317 |
VZM-25 | 25 | 23.71 | 1.65 | 0.53 | 23.94 | 0.66 | 6458 | 13872 |
VZM-26 | 26 | 24.63 | 2.24 | 0.64 | 24.88 | 0.79 | 7096 | 15138 |
VZM-28 | 28 | 26.62 | 2.24 | 0.64 | 26.88 | 0.79 | 7642 | 16303 |
VZM-29 | 29 | 27.61 | 2.24 | 0.64 | 27.88 | 0.79 | 7915 | 16885 |
VZM-30 | 30 | 28.59 | 2.24 | 0.64 | 28.88 | 0.79 | 8188 | 17467 |
VZM-32 | 32 | 30.57 | 2.24 | 0.64 | 30.88 | 0.79 | 8734 | 18632 |
VZM-34 | 34 | 32.56 | 2.24 | 0.64 | 32.88 | 0.79 | 9279 | 19796 |
VZM-35 | 35 | 33.55 | 2.24 | 0.64 | 33.88 | 0.79 | 9552 | 20378 |
VZM-36 | 36 | 34.54 | 2.24 | 0.64 | 34.88 | 0.79 | 9825 | 20960 |
VZM-38 | 38 | 36.52 | 2.24 | 0.64 | 36.88 | 0.79 | 10371 | 22125 |
VZM-40 | 40 | 38.09 | 3 | 0.79 | 38.52 | 0.99 | 14426 | 28748 |
VZM-42 | 42 | 40.07 | 3 | 0.79 | 40.52 | 0.99 | 15147 | 30185 |
VZM-45 | 45 | 43.04 | 3 | 0.79 | 43.52 | 0.99 | 16229 | 32341 |
VZM-48 | 48 | 46.01 | 3 | 0.79 | 46.52 | 0.99 | 17311 | 34497 |
VZM-50 | 50 | 47.99 | 3 | 0.79 | 48.52 | 0.99 | 18032 | 35935 |
VZM-52 | 52 | 49.48 | 4.01 | 0.79 | 50.06 | 0.99 | 24583 | 37372 |
VZM-55 | 55 | 52.46 | 4.01 | 0.79 | 53.06 | 0.99 | 26001 | 39528 |
VZM-56 | 56 | 53.44 | 4.01 | 0.79 | 54.06 | 0.99 | 26473 | 40247 |
VZM-58 | 58 | 55.42 | 4.01 | 0.79 | 56.06 | 0.99 | 27419 | 41684 |
VZM-60 | 60 | 57.4 | 4.01 | 0.79 | 58.06 | 0.99 | 28364 | 43122 |
VZM-62 | 62 | 59.37 | 4.01 | 0.79 | 60.06 | 0.99 | 29310 | 44559 |
VZM-63 | 63 | 60.35 | 4.01 | 0.79 | 61.06 | 0.99 | 29783 | 45278 |
VZM-65 | 65 | 62.33 | 4.01 | 0.79 | 63.06 | 0.99 | 30728 | 46715 |
VZM-68 | 68 | 65.31 | 4.01 | 0.79 | 66.06 | 0.99 | 32146 | 48871 |
VZM-70 | 70 | 67.29 | 4.01 | 0.79 | 68.06 | 0.99 | 33092 | 50309 |
VZM-72 | 72 | 69.27 | 4.01 | 0.79 | 70.06 | 0.99 | 34037 | 51746 |
VZM-75 | 75 | 72.25 | 4.01 | 0.79 | 73.06 | 0.99 | 35456 | 53902 |
VZM-78 | 78 | 74.85 | 4.78 | 0.99 | 75.66 | 1.12 | 44477 | 70250 |
VZM-80 | 80 | 76.82 | 4.78 | 0.99 | 77.66 | 1.12 | 45617 | 72052 |
VZM-82 | 82 | 78.79 | 4.78 | 0.99 | 79.66 | 1.12 | 46757 | 73853 |
VZM-85 | 85 | 81.76 | 4.78 | 0.99 | 82.66 | 1.12 | 48468 | 76555 |
VZM-88 | 88 | 84.73 | 4.78 | 0.99 | 85.66 | 1.12 | 50179 | 79257 |
VZM-90 | 90 | 86.69 | 4.78 | 0.99 | 87.66 | 1.12 | 51319 | 81058 |
VZM-95 | 95 | 91.66 | 4.78 | 0.99 | 92.66 | 1.12 | 54170 | 85561 |
VZM-100 | 100 | 96.62 | 4.78 | 0.99 | 97.66 | 1.12 | 57021 | 90064 |
VZM-105 | 105 | 101.13 | 5.72 | 1.17 | 102.2 | 1.32 | 71642 | 106440 |
VZM-110 | 110 | 106.08 | 5.72 | 1.17 | 107.2 | 1.32 | 75054 | 111508 |
VZM-115 | 115 | 111.03 | 5.72 | 1.17 | 112.2 | 1.32 | 78465 | 116577 |
VZM-120 | 120 | 115.98 | 5.72 | 1.17 | 117.2 | 1.32 | 81877 | 121645 |
VZM-125 | 125 | 120.93 | 5.72 | 1.17 | 122.2 | 1.32 | 85288 | 126714 |
VZM-130 | 130 | 125.88 | 5.72 | 1.17 | 127.2 | 1.32 | 88700 | 131783 |
VZM-135 | 135 | 130.31 | 5.72 | 1.55 | 131.63 | 1.7 | 111027 | 181299 |
VZM-140 | 140 | 135.13 | 5.72 | 1.55 | 136.5 | 1.7 | 119404 | 188013 |
VZM-145 | 145 | 139.95 | 5.72 | 1.55 | 141.37 | 1.7 | 127974 | 194907 |
VZM-150 | 150 | 144.83 | 5.72 | 1.55 | 146.25 | 1.7 | 137070 | 201443 |
VZM-155 | 155 | 149.66 | 5.72 | 1.55 | 151.13 | 1.7 | 146361 | 208158 |
VZM-160 | 160 | 154.44 | 6.73 | 1.55 | 156 | 1.7 | 155956 | 214872 |
VZM-165 | 165 | 159.27 | 6.73 | 1.55 | 160.88 | 1.7 | 165855 | 221587 |
VZM-170 | 170 | 164.09 | 6.73 | 1.55 | 165.75 | 1.7 | 176059 | 228302 |
VZM-175 | 175 | 168.92 | 6.73 | 1.55 | 170.63 | 1.7 | 186568 | 235017 |
VZM-180 | 180 | 173.75 | 6.73 | 1.55 | 175.5 | 1.7 | 197381 | 241731 |
VZM-185 | 185 | 178.57 | 7.62 | 1.55 | 180.38 | 1.7 | 208499 | 248446 |
VZM-190 | 190 | 183.4 | 7.62 | 1.55 | 185.25 | 1.7 | 219922 | 255161 |
VZM-195 | 195 | 188.22 | 7.62 | 1.55 | 190.13 | 1.7 | 231649 | 261876 |
VZM-200 | 200 | 193.05 | 7.62 | 1.55 | 195 | 1.7 | 243681 | 268590 |
VZM-210 | 210 | 202.7 | 8.76 | 1.93 | 204.75 | 2.08 | 268658 | 351160 |
VZM-220 | 220 | 212.36 | 8.76 | 1.93 | 214.5 | 2.08 | 294854 | 367882 |
VZM-230 | 230 | 222.01 | 8.76 | 1.93 | 224.25 | 2.08 | 322268 | 384604 |
VZM-240 | 240 | 231.66 | 8.76 | 1.93 | 234 | 2.08 | 350900 | 401326 |
VZM-250 | 250 | 241.31 | 8.76 | 1.93 | 243.75 | 2.08 | 380751 | 418048 |
VZM-260 | 260 | 250.97 | 9.65 | 1.93 | 253.5 | 2.08 | 411821 | 434770 |
VZM-270 | 270 | 260.62 | 9.65 | 1.93 | 263.25 | 2.08 | 444108 | 451492 |
VZM-280 | 280 | 270.27 | 9.65 | 1.93 | 273 | 2.08 | 477614 | 468214 |
VZM-290 | 290 | 279.92 | 9.65 | 1.93 | 282.75 | 2.08 | 512339 | 484936 |
VZM-300 | 300 | 289.58 | 9.65 | 1.93 | 292.5 | 2.08 | 548282 | 501658 |
