C Type Flat Elastic Spiral Retaining Ring Fasteners Wire Circlip For Bores DIN472

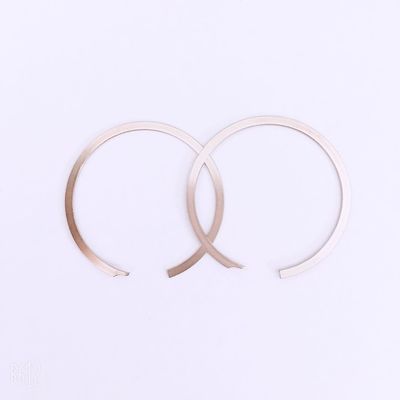

Large Image : C Type Flat Elastic Spiral Retaining Ring Fasteners Wire Circlip For Bores DIN472

Product Details:

Place of Origin:	China
Brand Name:	lisprings
Certification:	ISO9001 TS16949
Model Number:	WKT/EK/DNK

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Bulk packaged or Customize
Delivery Time:	7 work days
Supply Ability:	10000000

Contact Now

Detailed Product Description

Name:	Retaining Ring Non - Standard Custom	Type:	Retaining Ring
Material:	Stainless Steel, Sus304, 65Mn, Sus316, Etc	Stock:	More Than 2000 Types
Standard:	DIN, GB, ANSI, DIN5417/M3200, JIS	Packing:	Bulking/roll Packing+carton+pallets
Oem:	OK, Available	Style:	C Type, Etc, Self Locking, Internal, C Rings
High Light:	internal retaining snap ring , stainless retaining rings

C type flat wire elastic retaining ring fasteners Circlip for Bores (DIN472)

Description:

Spiral Retaining Rings have No Ears in your assembly! Spiral Retaining Rings are manufactured by coiling the ring from flat wire. This unique process produces a retaining ring that has no protruding ears or burrs to interfere with your assembly. Because coiling produces a retaining ring with no scrap, the Spiral Retaining Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.

No gap - 360°retaining surface

. No protruding ears interfere with mating components (uniform cross-section)

. Economically produced in stainless steel because the coiling process produces no scrap

. No -Charge on custom designs

. Easy installation and removal

Processing Steps

Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing

Primary Competitive Advantage

1. High quality products
2. Competitive price (factory direct price)
3. Good service
4. Quick reply and production time
5. Long time experience
6. Free samples if we have stock
7. Good solution ability

Specification:(Some specifications and sizes can be contacted for details.)

Part Number		Ring Size				Assembly Size
Specification	Use	Outside Diameter (mm)	Radial Wall (mm)	Thickness (mm)	Turns	Housing Diameter (mm)	Groove Diameter (mm)	Groove Width (mm)
VKM-6	Internal	6.35	0.51	0.3	Single Turn	6	6.3	0.38
VK-25	Internal	6.71	0.51	0.3	Single Turn	6.35	6.65	0.38
VKM-7	Internal	7.38	0.51	0.3	Single Turn	7	7.32	0.38
VK-31	Internal	8.36	0.64	0.38	Single Turn	7.92	8.28	0.46
VKM-8	Internal	8.44	0.64	0.38	Single Turn	8	8.36	0.46
VKM-9	Internal	9.54	0.76	0.38	Single Turn	9	9.46	0.46
VK-37	Internal	10.11	0.76	0.38	Single Turn	9.53	10.03	0.46
VKM-10	Internal	10.58	0.76	0.38	Single Turn	10	10.5	0.46
VKM-11	Internal	11.68	0.89	0.38	Single Turn	11	11.6	0.46
VK-43	Internal	11.84	0.76	0.38	Single Turn	11.1	11.76	0.46
VKM-12	Internal	12.74	0.89	0.38	Single Turn	12	12.66	0.46
VK-50	Internal	13.49	1.14	0.46	Single Turn	12.7	13.41	0.56
VKM-13	Internal	13.8	1.14	0.46	Single Turn	13	13.72	0.56
VKM-14	Internal	14.8	1.14	0.46	Single Turn	14	14.72	0.56
VK-56	Internal	15.06	1.14	0.46	Single Turn	14.27	14.99	0.56
VKM-15	Internal	15.8	1.14	0.46	Single Turn	15	15.72	0.56
VK-62	Internal	16.66	1.14	0.46	Single Turn	15.88	16.59	0.56
VKM-16	Internal	16.8	1.14	0.46	Single Turn	16	16.72	0.56
VKM-17	Internal	17.82	1.14	0.46	Single Turn	17	17.72	0.56
VK-68	Internal	18.26	1.14	0.46	Single Turn	17.45	18.16	0.56
VKM-18	Internal	18.82	1.14	0.46	Single Turn	18	18.72	0.56
VKM-19	Internal	19.86	1.14	0.46	Single Turn	19	19.76	0.56
VK-75	Internal	19.89	1.14	0.46	Single Turn	19.05	19.79	0.56
VKM-20	Internal	21.26	1.65	0.53	Single Turn	20	21.06	0.66
VK-81	Internal	21.89	1.65	0.53	Single Turn	20.62	21.69	0.66
VKM-21	Internal	22.27	1.65	0.53	Single Turn	21	22.06	0.66
VKM-22	Internal	23.28	1.65	0.53	Single Turn	22	23.06	0.66
VK-87	Internal	23.52	1.65	0.53	Single Turn	22.23	23.29	0.66
VK-93	Internal	25.12	1.65	0.53	Single Turn	23.8	24.87	0.66
VKM-24	Internal	25.29	1.65	0.53	Single Turn	24	25.06	0.66
VKM-25	Internal	26.3	1.65	0.53	Single Turn	25	26.06	0.66
VK-100	Internal	26.72	1.65	0.53	Single Turn	25.4	26.47	0.66
VKM-26	Internal	27.31	1.65	0.53	Single Turn	26	27.06	0.66
VK-106	Internal	28.37	2.24	0.64	Single Turn	26.97	28.09	0.79
VKM-28	Internal	29.4	2.24	0.64	Single Turn	28	29.12	0.79
VK-112	Internal	29.97	2.24	0.64	Single Turn	28.58	29.69	0.79
VKM-29	Internal	30.41	2.24	0.64	Single Turn	29	30.12	0.79
VKM-30	Internal	31.42	2.24	0.64	Single Turn	30	31.12	0.79
VK-118	Internal	31.55	2.24	0.64	Single Turn	30.15	31.27	0.79
VKM-31	Internal	32.43	2.24	0.64	Single Turn	31	32.12	0.79

C Type Flat Elastic Spiral Retaining Ring Fasteners Wire Circlip For Bores DIN472 0
