Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment

China Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier
Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment supplier

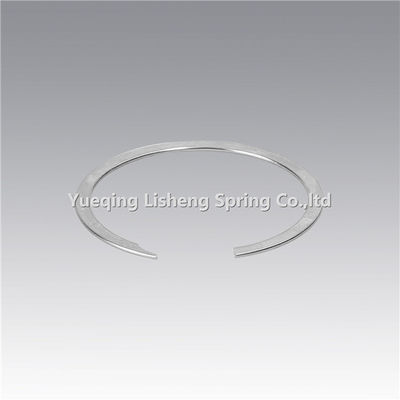

Large Image :  Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment

Product Details:

Place of Origin: China
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: VKM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Material: Carbon Steel Or Stainless Steel Used For: Bearing
Size: 5mm-1000mm Stock: More Than 1800 Types
Name: Light Duty Single Turn External Spiral Retaining Rings Tooling Charge: Free

Light Duty Single Turn External Spiral Retaining Rings Carbon steel or Stainless Steel Material



Description:



Spiral Retaining Rings have No Ears in your assembly! Spiral Retaining Rings are manufactured by coiling the ring from flat wire. This unique process produces a retaining ring that has no protruding ears or burrs to interfere with your assembly. Because coiling produces a retaining ring with no scrap, the Spiral Retaining Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.

No gap - 360°retaining surface

. No protruding ears interfere with mating components (uniform cross-section)

. Economically produced in stainless steel because the coiling process produces no scrap

. No -Charge on custom designs

. Easy installation and removal





Material:



Nickel alloys : Inconel 750/NO7750(2.4669), Inconel 600/NO6600(2.4816), Inconel 625/NO6625(2.4856), Inconel 718/NO7718(2.4668), Monel 500/NO5500(2.4375)



Elgiloy: UNS R30003



Cohalt alloys: L605(2.4964), N10276(2.4819), CR5(3.7164/3.7165)

Stainless steel: 316, 304(1.4301), 50CrV4(1.8159)





Application:



Aviation, automotive, motorbike, bicycle, automatic equipment,

Household appliance, medical device, toy, telecommunication,

Computer, instrument and meter, furniture, electric tools,

Mold and other industries



Finish:



Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc





About Us:



Lisheng Spring Company was established in 1993. Lisheng spring is a professional manufacturer for Wave springs in China. Lisheng spring specializes in the manufacture of springs and retaining rings, such as wave springs, Spiral retaining rings, Laminar Sealing Rings and many other products, the row materials are imported from Japan, Germany, and the U.S. ,We select the correct material to guarantee satisfying products. Lisheng spring has become one of the leading companies in the all types of wave springs and spiral retainings with its high-quality and high-precise production capability. We firmly believe that serving our clients will bring us the satisfaction. We always desired. We will continue to provide our clients with high quality products and best service.



Light Duty Spiral Retaining Ring Single Turn External For Automatic Equipment





Specification:



Part Number Housing Diameter(mm) Outside Diameter(mm) Radial Wall(mm) Thickness
(mm)
Groove Diameter(mm) Groove Width(mm) Groove Yield(N) Ring Shear
(N)
VKM-6 6 6.35 0.51 0.3 6.3 0.38 439 1988
VKM-7 7 7.38 0.51 0.3 7.32 0.38 546 2320
VKM-8 8 8.44 0.64 0.38 8.36 0.46 702 3183
VKM-9 9 9.54 0.76 0.38 9.46 0.46 1003 3580
VKM-10 10 10.58 0.76 0.38 10.5 0.46 1238 3978
VKM-11 11 11.68 0.89 0.38 11.6 0.46 1634 4388
VKM-12 12 12.74 0.89 0.38 12.66 0.46 1930 4774
VKM-13 13 13.8 1.14 0.46 13.72 0.56 2281 6261
VKM-14 14 14.8 1.14 0.46 14.72 0.56 2456 6742
VKM-15 15 15.8 1.14 0.46 15.72 0.56 2632 7224
VKM-16 16 16.8 1.14 0.46 16.72 0.56 2807 7705
VKM-17 17 17.82 1.14 0.46 17.72 0.56 2983 8187
VKM-18 18 18.82 1.14 0.46 18.72 0.56 3158 8669
VKM-19 19 19.86 1.14 0.46 19.76 0.56 3519 9150
VKM-20 20 21.26 1.65 0.53 21.06 0.66 5166 11097
VKM-21 21 22.27 1.65 0.53 22.06 0.66 5424 11652
VKM-22 22 23.28 1.65 0.53 23.06 0.66 5683 12207
VKM-24 24 25.29 1.65 0.53 25.06 0.66 6199 13317
VKM-25 25 26.3 1.65 0.53 26.06 0.66 6458 13872
VKM-26 26 27.31 1.65 0.53 27.06 0.66 6716 14427
VKM-28 28 29.4 2.24 0.64 29.12 0.79 7642 16303
VKM-29 29 30.41 2.24 0.64 30.12 0.79 7915 16885
VKM-30 30 31.42 2.24 0.64 31.12 0.79 8188 17467
VKM-31 31 32.43 2.24 0.64 32.12 0.79 8461 18049
VKM-32 32 33.44 2.24 0.64 33.12 0.79 8734 18632
VKM-34 34 35.45 2.24 0.64 35.12 0.79 9279 19796
VKM-35 35 36.47 2.24 0.64 36.12 0.79 9552 20378
VKM-36 36 37.48 2.24 0.64 37.12 0.79 9825 20960
VKM-37 37 38.49 2.24 0.64 38.12 0.79 10098 21543
VKM-38 38 39.5 2.24 0.64 39.12 0.79 10371 22125
VKM-40 40 41.94 3 0.79 41.48 0.99 14426 28748
VKM-42 42 43.96 3 0.79 43.48 0.99 15147 30185
VKM-45 45 46.99 3 0.79 46.48 0.99 16229 32341
VKM-47 47 49 3 0.79 48.48 0.99 16950 33779
VKM-48 48 50.01 3 0.79 49.48 0.99 17311 34497
VKM-50 50 52.04 3 0.79 51.48 0.99 18032 35935
VKM-52 52 54.55 4.01 0.79 53.94 0.99 24583 37372
VKM-55 55 57.57 4.01 0.79 56.94 0.99 26001 39528
VKM-56 56 58.58 4.01 0.79 57.94 0.99 26473 40247
VKM-58 58 60.6 4.01 0.79 59.94 0.99 27419 41684
VKM-60 60 62.64 4.01 0.79 61.94 0.99 28364 43122
VKM-62 62 64.67 4.01 0.79 63.94 0.99 29310 44559
VKM-63 63 65.69 4.01 0.79 64.94 0.99 29783 45278
VKM-65 65 67.7 4.01 0.79 66.94 0.99 30728 46715
VKM-68 68 70.72 4.01 0.79 69.94 0.99 32146 48871
VKM-70 70 72.74 4.01 0.79 71.94 0.99 33092 50309
VKM-72 72 74.77 4.01 0.79 73.94 0.99 34037 51746
VKM-75 75 77.8 4.01 0.79 76.94 0.99 35456 53902
VKM-78 78 81.2 4.78 0.99 80.34 1.12 44477 70250
VKM-80 80 83.23 4.78 0.99 82.34 1.12 45617 72052
VKM-82 82 85.25 4.78 0.99 84.34 1.12 46757 73853
VKM-85 85 88.29 4.78 0.99 87.34 1.12 48468 76555
VKM-88 88 91.32 4.78 0.99 90.34 1.12 50179 79257
VKM-90 90 93.36 4.78 0.99 92.34 1.12 51319 81058
VKM-92 92 95.37 4.78 0.99 94.34 1.12 52460 82859
VKM-95 95 98.39 4.78 0.99 97.34 1.12 54170 85561
VKM-98 98 101.41 4.78 0.99 100.34 1.12 55881 88263
VKM-100 100 103.43 4.78 0.99 102.34 1.12 57021 90064
VKM-102 102 105.44 4.78 0.99 104.34 1.12 58162 91866
VKM-105 105 108.92 5.72 1.17 107.8 1.32 71642 106440
VKM-110 110 113.98 5.72 1.17 112.8 1.32 75054 111508
VKM-112 112 116.01 5.72 1.17 114.8 1.32 76418 113536
VKM-115 115 119.12 5.72 1.17 117.88 1.32 80707 116577
VKM-120 120 124.3 5.72 1.17 123 1.32 87725 121645
VKM-125 125 129.47 5.72 1.17 128.12 1.32 95036 126714
VKM-130 130 134.66 5.72 1.17 133.26 1.32 103272 131783
VKM-135 135 139.83 5.72 1.55 138.38 1.7 111192 181299
VKM-140 140 145 5.72 1.55 143.5 1.7 119404 188013
VKM-145 145 150.17 5.72 1.55 148.62 1.7 127974 194907
VKM-150 150 155.3 6.73 1.55 153.76 1.7 137436 201443
VKM-155 155 160.46 6.73 1.55 158.88 1.7 146361 208158
VKM-160 160 165.64 6.73 1.55 164 1.7 155956 214872
VKM-165 165 170.82 6.73 1.55 169.13 1.7 165855 221587
VKM-170 170 175.99 6.73 1.55 174.25 1.7 176059 228302
VKM-175 175 181.17 6.73 1.55 179.38 1.7 186568 235017
VKM-180 180 186.35 6.73 1.55 184.5 1.7 197381 241731
VKM-185 185 191.52 6.73 1.55 189.63 1.7 208499 248446
VKM-190 190 196.7 6.73 1.55 194.75 1.7 219922 255161
VKM-195 195 201.87 7.62 1.55 199.88 1.7 231649 261876
VKM-200 200 207.05 7.62 1.55 205 1.7 243681 268590
VKM-210 210 217.4 7.62 1.55 215.25 1.7 268658 282020
VKM-220 220 227.76 8.76 1.93 225.5 2.08 294854 367882
VKM-230 230 238.11 8.76 1.93 235.75 2.08 322268 384604
VKM-240 240 248.46 8.76 1.93 246 2.08 350900 401326
VKM-250 250 258.81 8.76 1.93 256.25 2.08 380751 418048
VKM-260 260 269.17 9.65 1.93 266.5 2.08 411821 434770
VKM-270 270 279.52 9.65 1.93 276.75 2.08 444108 451492
VKM-280 280 289.87 9.65 1.93 287 2.08 477614 468214
VKM-290 290 300.22 9.65 1.93 297.25 2.08 512339 484936
VKM-300 300 310.58 9.65 1.93 307.5 2.08 548282 501658
