Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing

China Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing supplier
Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing supplier Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing supplier Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing supplier Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing supplier

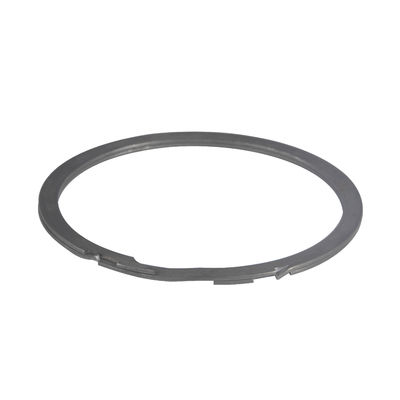

Large Image :  Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing

Product Details:

Place of Origin: China
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Name: External Wire Retaining Clips Size: 5mm-1000mm
Tooling Charge: Free Used For: Bearing
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types

Carbon steel and 304 and 316 Stainless Steel external wire retaining clips for bearing

Description:


Spiral Retaining Rings have No Ears in your assembly! Spiral Retaining Rings are manufactured by coiling the ring from flat wire. This unique process produces a retaining ring that has no protruding ears or burrs to interfere with your assembly. Because coiling produces a retaining ring with no scrap, the Spiral Retaining Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.

  No gap - 360°retaining surface

. No protruding ears interfere with mating components (uniform cross-section)

. Economically produced in stainless steel because the coiling process produces no scrap

. No -Charge Fee on custom designs

. Easy installation and removal


Processing Steps

Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing

Primary Competitive Advantage

  • Over 3000 types Wave springs and Spiral rings standard parts in stock
  • Prompt Delivery Quality Approvals

  • Service Sample Available

  • We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings

  • We make the Product as your samples or your design fully

  • We have strong researching and developing team to solve Product problem

  • There are lot of raw material suppliers around our factory

  • We supply high quality Productfor many world famous companies

  • Our factory got ISO 9001 and TS16949 certificate

  • Small trial orders can be accepted, free sample is available

  • Our price is reasonable and keep top quality for every clients


Material:

OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 - 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 ,
Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc


Heavy Duty External Retaining Rings 304 316 Stainless Steel Material For Bearing

 Specification:

Part Number Housing Diameter(in) Outside Diameter(in) Radial Wall(in) Thickness(in) Groove Diameter(in) Groove Width(in) Groove Yield(lb) Ring Shear (lb)
WKM-25 0.25 0.27 0.02 0.015 0.268 0.02 159 561
WKM-31 0.312 0.333 0.025 0.015 0.33 0.02 198 700
WKM-37 0.375 0.4 0.03 0.025 0.397 0.029 292 1442
WKM-43 0.437 0.464 0.035 0.025 0.461 0.029 371 1680
WKM-50 0.5 0.538 0.045 0.035 0.53 0.039 530 2530
WKM-51 0.512 0.55 0.045 0.035 0.542 0.039 540 2590
WKM-56 0.562 0.605 0.055 0.035 0.596 0.039 680 2840
WKM-62 0.625 0.675 0.055 0.035 0.665 0.039 880 3160
WKM-68 0.688 0.743 0.065 0.035 0.732 0.039 1070 3480
WKM-75 0.75 0.807 0.065 0.035 0.796 0.039 1220 3790
WKM-77 0.777 0.836 0.075 0.042 0.825 0.046 1320 4720
WKM-81 0.812 0.873 0.075 0.042 0.862 0.046 1440 4930
WKM-86 0.866 0.931 0.075 0.042 0.92 0.046 1650 5260
WKM-87 0.875 0.943 0.085 0.042 0.931 0.046 1730 5310
WKM-90 0.901 0.972 0.085 0.042 0.959 0.046 1850 5470
WKM-93 0.938 1.013 0.085 0.042 1 0.046 2060 5690
